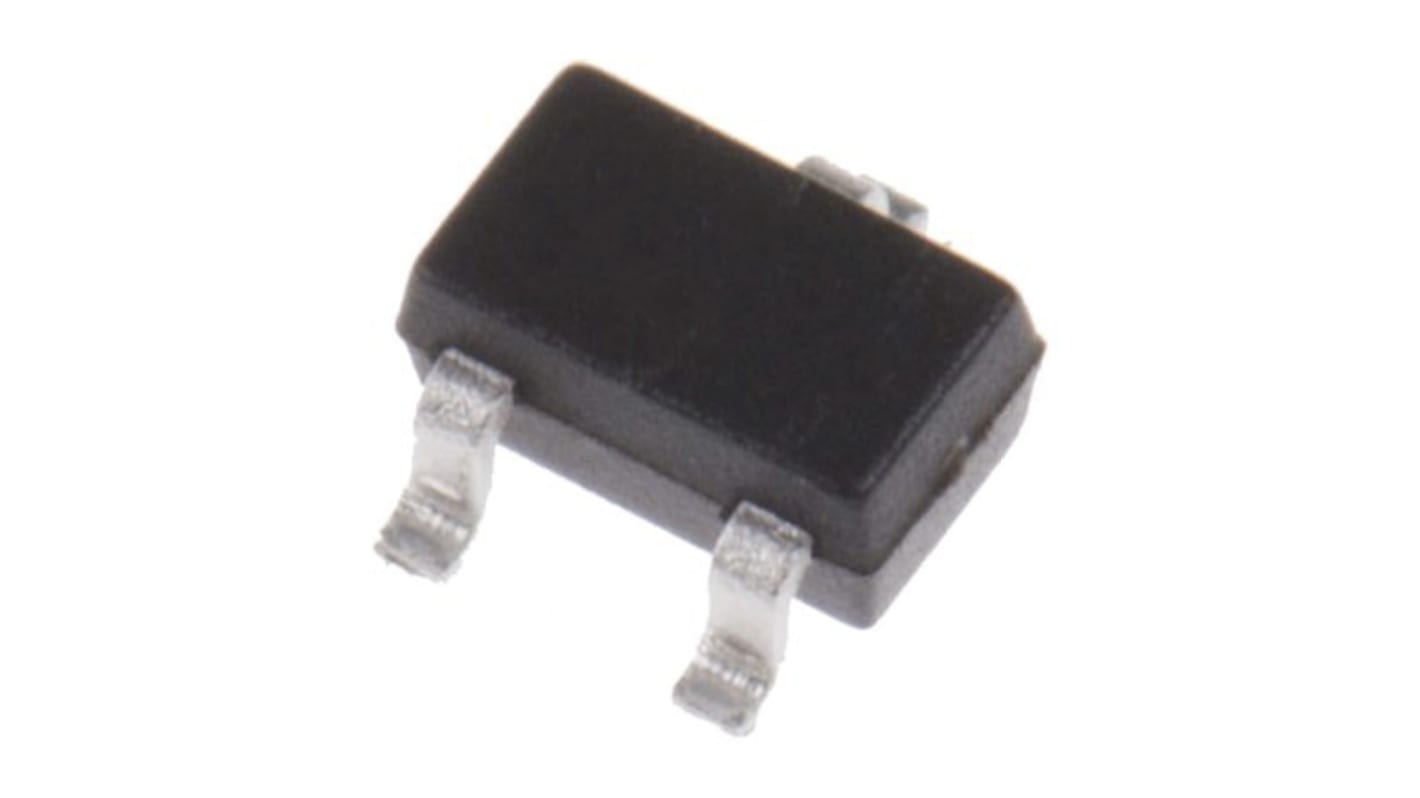

STMicroelectronics 2, 36 V Zener Diode, Single Surface 3-Pin SOT-323
- RS Stock No.:
- 190-6753
- Mfr. Part No.:
- ESDCAN05-2BWY
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£171.00
(exc. VAT)
£204.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.057 | £171.00 |
*price indicative
- RS Stock No.:
- 190-6753
- Mfr. Part No.:
- ESDCAN05-2BWY
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Zener Diode | |
| Nominal Zener Voltage Vz | 36V | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 2 | |
| Mount Type | Surface | |
| Package Type | SOT-323 | |
| Zener Type | Bi-Directional | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Reverse Leakage Current | 100nA | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Series | ESDCANxx-2BWY | |
| Height | 1.1mm | |
| Length | 2.2mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Zener Diode | ||
Nominal Zener Voltage Vz 36V | ||
Diode Configuration Single | ||
Number of Elements per Chip 2 | ||
Mount Type Surface | ||
Package Type SOT-323 | ||
Zener Type Bi-Directional | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Maximum Reverse Leakage Current 100nA | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Series ESDCANxx-2BWY | ||
Height 1.1mm | ||
Length 2.2mm | ||
Automotive Standard AEC-Q101 | ||
These devices are dual-line transient voltage suppressor (TVS) specifically designed for the protection of automotive CAN bus lines against electrostatic discharge (ESD). Their improved parameters make them compliant with all key drivers in automotive.
Dual-line ESD and EOS protection
Breakdown voltage, VBR:
ESDCAN02-2BWY: 28.5 V
ESDCAN03-2BWY: 26.5 V
ESDCAN04-2BWY: 27.5 V
ESDCAN05-2BWY: 39 V
ESDCAN06-2BWY: 38 V
Bidirectional device
Max pulse power up to 170 W (8/20 μs)
Low clamping factor VCL / VBR
Low leakage current
