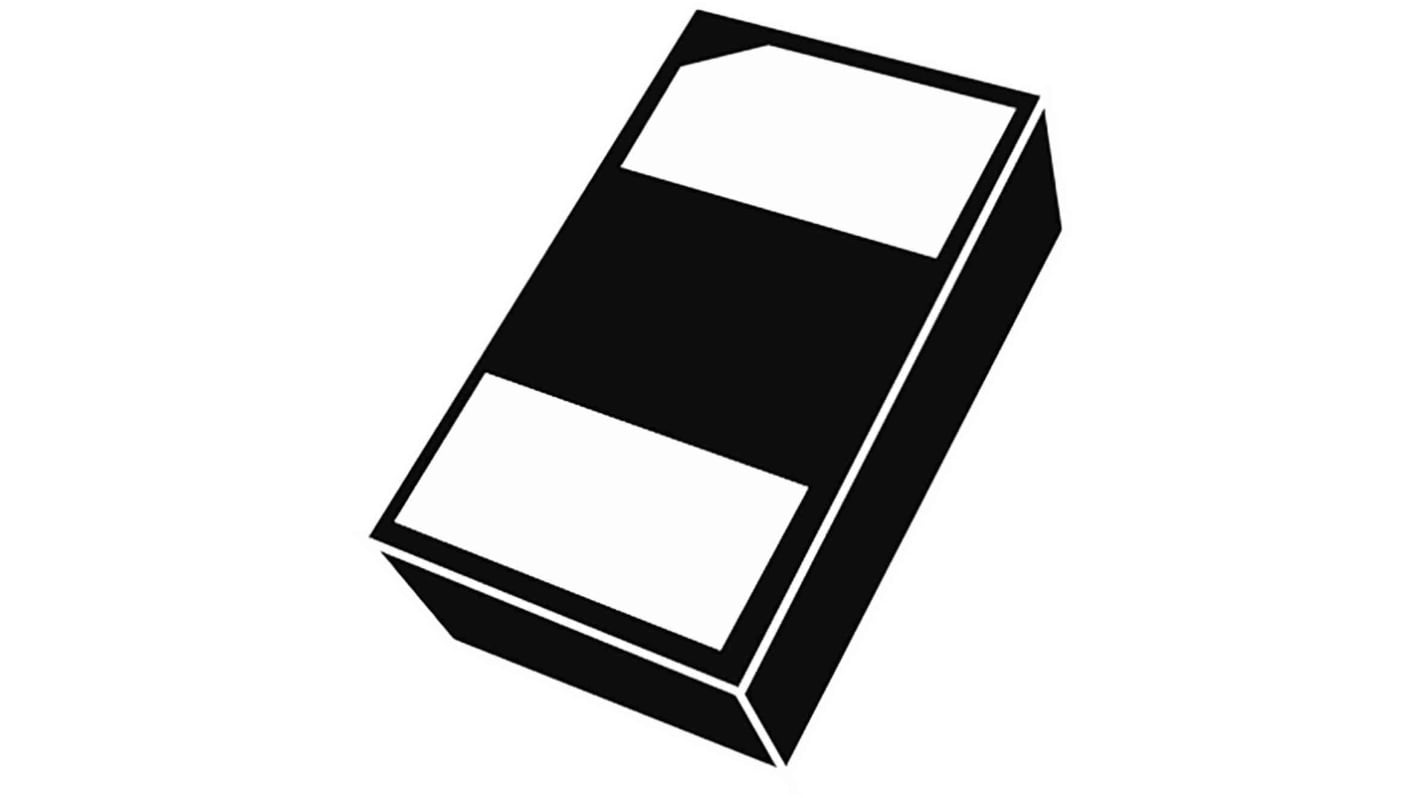

STMicroelectronics 1, 3 V Zener Diode, Single 40 W Surface 2-Pin SOD-882T
- RS Stock No.:
- 190-6752
- Mfr. Part No.:
- ESDAXLC6-1BT2Y
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 12000 units)*
£660.00
(exc. VAT)
£792.00
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 24,000 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 12000 - 12000 | £0.055 | £660.00 |
| 24000 + | £0.054 | £648.00 |
*price indicative
- RS Stock No.:
- 190-6752
- Mfr. Part No.:
- ESDAXLC6-1BT2Y
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Single | |
| Product Type | Zener Diode | |
| Nominal Zener Voltage Vz | 3V | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 40W | |
| Package Type | SOD-882T | |
| Zener Type | Bi-Directional | |
| Pin Count | 2 | |
| Maximum Zener Impedance | 0.25Ω | |
| Minimum Operating Temperature | -55°C | |
| Maximum Reverse Leakage Current | 50nA | |
| Maximum Operating Temperature | 150°C | |
| Series | ESDA | |
| Standards/Approvals | No | |
| Height | 0.4mm | |
| Length | 1.05mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Single | ||
Product Type Zener Diode | ||
Nominal Zener Voltage Vz 3V | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 40W | ||
Package Type SOD-882T | ||
Zener Type Bi-Directional | ||
Pin Count 2 | ||
Maximum Zener Impedance 0.25Ω | ||
Minimum Operating Temperature -55°C | ||
Maximum Reverse Leakage Current 50nA | ||
Maximum Operating Temperature 150°C | ||
Series ESDA | ||
Standards/Approvals No | ||
Height 0.4mm | ||
Length 1.05mm | ||
Automotive Standard AEC-Q101 | ||
The ESDAXLC6-1BT2Y is bidirectional single-line TVS diode designed to protect data lines or other I/O ports against ESD transients. This device is ideal for applications where both reduced line capacitance and power absorption capability are required.
Single-line bidirectional protection
Breakdown voltage = 6 V min.
Extra low diode capacitance = 0.4 pF
Lead-free package
Benefits
Low capacitance for optimized data integrity
Low leakage current < 50 nA
Low PCB space consumption: 0.6 mm3
