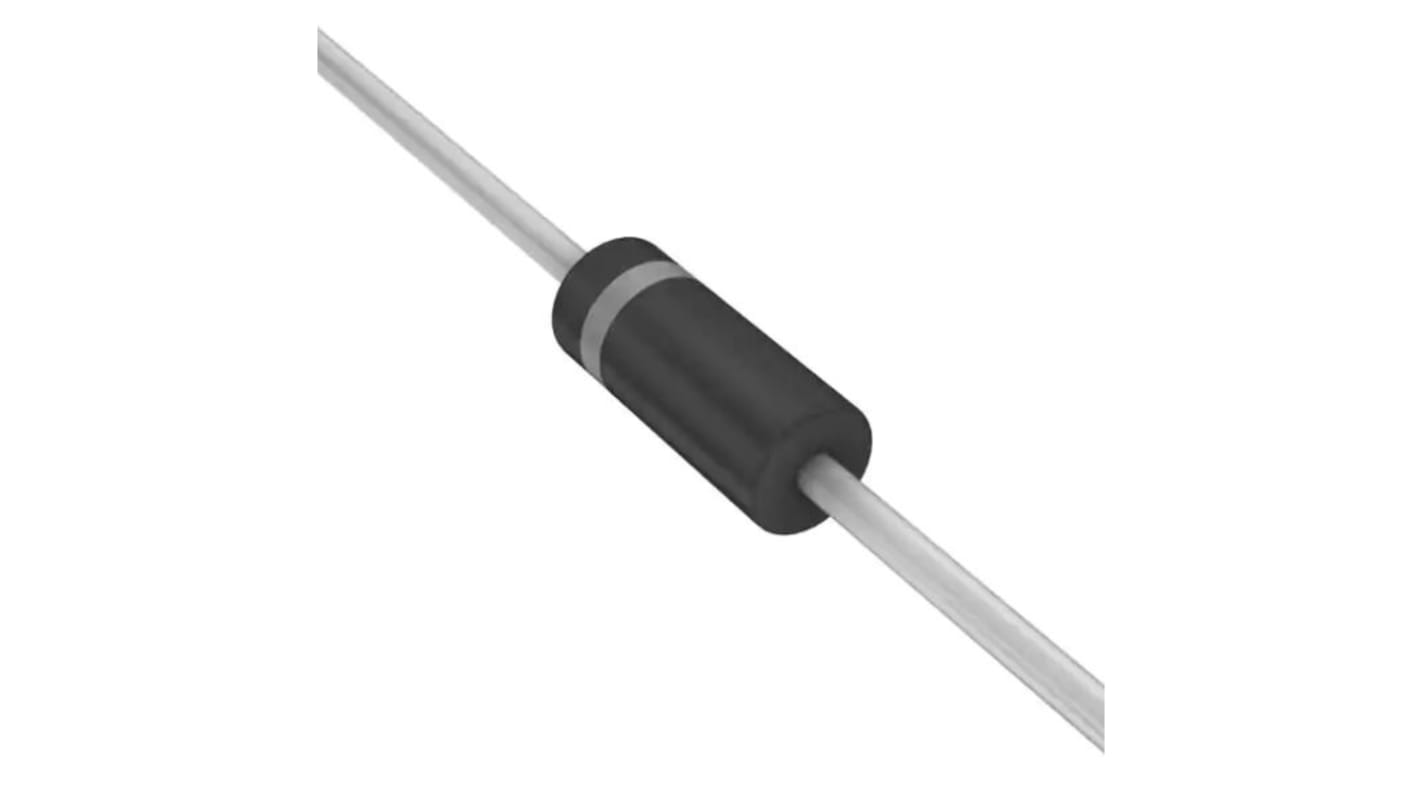

onsemi, 30V Zener Diode ±5% 5 W Through Hole 2-Pin CASE 017AA
- RS Stock No.:
- 186-9256
- Mfr. Part No.:
- 1N5363BG
- Brand:
- onsemi
50 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.305
(exc. VAT)
£0.366
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 25 | £0.305 | £7.625 |
| 50 - 100 | £0.30 | £7.50 |
| 125 - 225 | £0.293 | £7.325 |
| 250 - 600 | £0.288 | £7.20 |
| 625 + | £0.207 | £5.175 |
| *price indicative | ||
- RS Stock No.:
- 186-9256
- Mfr. Part No.:
- 1N5363BG
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
This is a complete series of 5.0 Watt Zener Diode Voltage Regulators with tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this is in an axial-lead, transfer-moulded plastic package that offers protection in all common environmental conditions.
Up to 180 Watt Surge Rating @ 8.3 ms
Maximum Limits Guaranteed on Seven Electrical Parameters
CASE: Void-free, transfer-Moulded, thermo-setting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solder able
POLARITY: Cathode indicated by Colour band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WEIGHT: 0.7 gram (approx)
Pb-Free Packages are Available
Maximum Limits Guaranteed on Seven Electrical Parameters
CASE: Void-free, transfer-Moulded, thermo-setting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solder able
POLARITY: Cathode indicated by Colour band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WEIGHT: 0.7 gram (approx)
Pb-Free Packages are Available
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 30V |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 5 W |
| Package Type | CASE 017AA |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 40mA |
| Maximum Zener Impedance | 140 Ω @ 1 mA, 8 Ω @ 40 mA |
| Maximum Reverse Leakage Current | 3.7µA |
| Dimensions | 3.68 (Dia.) x 8.89mm |
| Forward Current | 1A |
| Forward Voltage | 1.2V |
| Maximum Operating Temperature | +200 °C |
| Minimum Operating Temperature | -65 °C |
