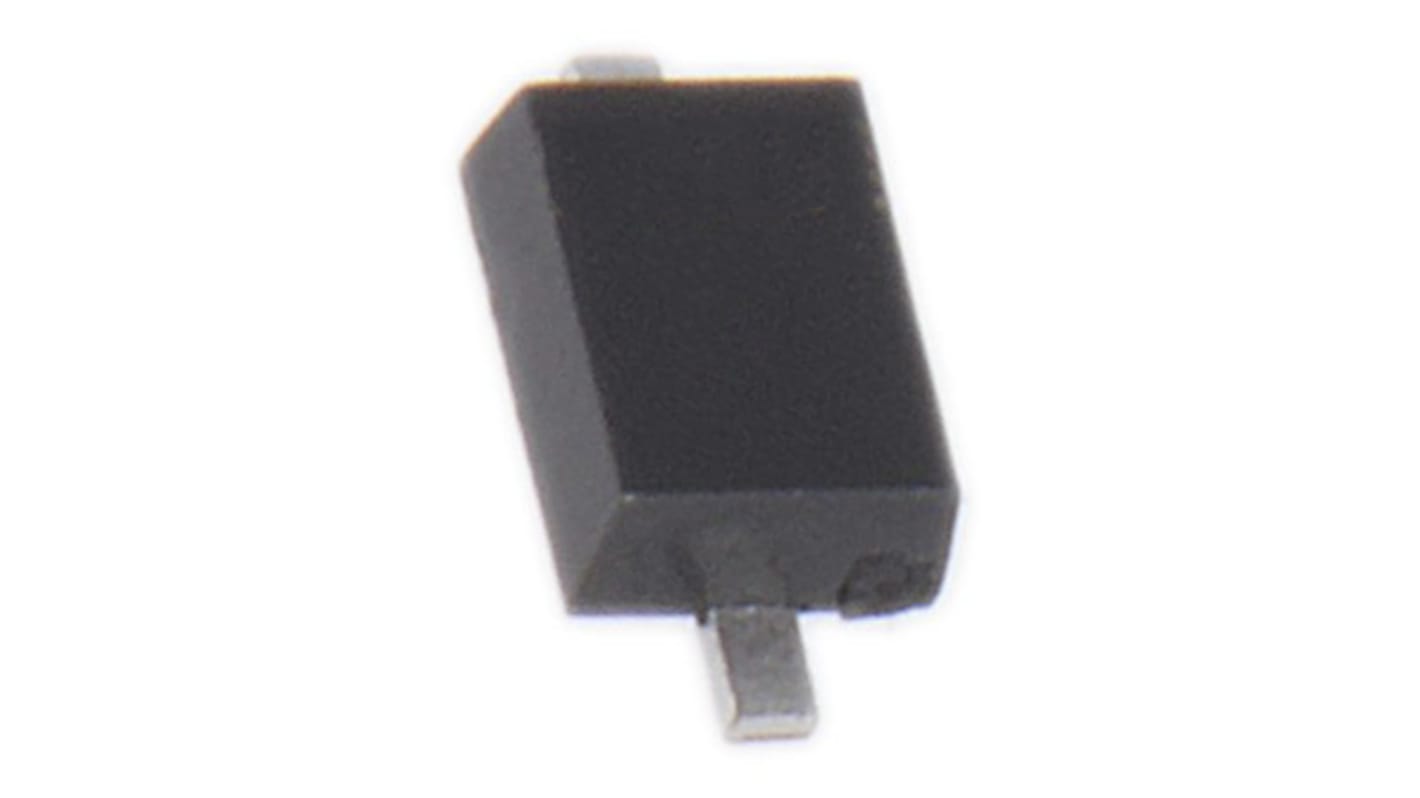

onsemi 1, 5.6 V Zener Diode, Single 200 mW 5 % Surface 2-Pin SOD-323
- RS Stock No.:
- 186-9181
- Mfr. Part No.:
- MM3Z5V6C
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 50 units)*
£2.70
(exc. VAT)
£3.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.054 | £2.70 |
| 500 - 950 | £0.047 | £2.35 |
| 1000 + | £0.041 | £2.05 |
*price indicative
- RS Stock No.:
- 186-9181
- Mfr. Part No.:
- MM3Z5V6C
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Single | |
| Nominal Zener Voltage Vz | 5.6V | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 200mW | |
| Package Type | SOD-323 | |
| Zener Type | Voltage Regulator | |
| Pin Count | 2 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 376Ω | |
| Maximum Reverse Leakage Current | 900nA | |
| Minimum Operating Temperature | -65°C | |
| Zener Voltage Tolerance ± | 5% | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Length | 2.7mm | |
| Height | 1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Single | ||
Nominal Zener Voltage Vz 5.6V | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 200mW | ||
Package Type SOD-323 | ||
Zener Type Voltage Regulator | ||
Pin Count 2 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 376Ω | ||
Maximum Reverse Leakage Current 900nA | ||
Minimum Operating Temperature -65°C | ||
Zener Voltage Tolerance ± 5% | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Length 2.7mm | ||
Height 1mm | ||
Automotive Standard No | ||
MM3Z5V6C: 5.6V 200mW 5% Zener, SOD323F
Wide Zener Voltage Range Selection, 2.4V to 75V
VZ Tolerance Selection of ±5% (C Series)
Very Small and Thin SMD package
Matte Tin(Sn) finish, Pb Free
Applications
This product is general usage and suitable for many different applications.
