- RS Stock No.:
- 184-4696
- Mfr. Part No.:
- 1N5353BG
- Brand:
- onsemi
2150 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.308
(exc. VAT)
£0.37
(inc. VAT)
Units | Per unit | Per Pack* |
50 - 200 | £0.308 | £15.40 |
250 - 450 | £0.231 | £11.55 |
500 - 700 | £0.206 | £10.30 |
750 + | £0.185 | £9.25 |
*price indicative |
- RS Stock No.:
- 184-4696
- Mfr. Part No.:
- 1N5353BG
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

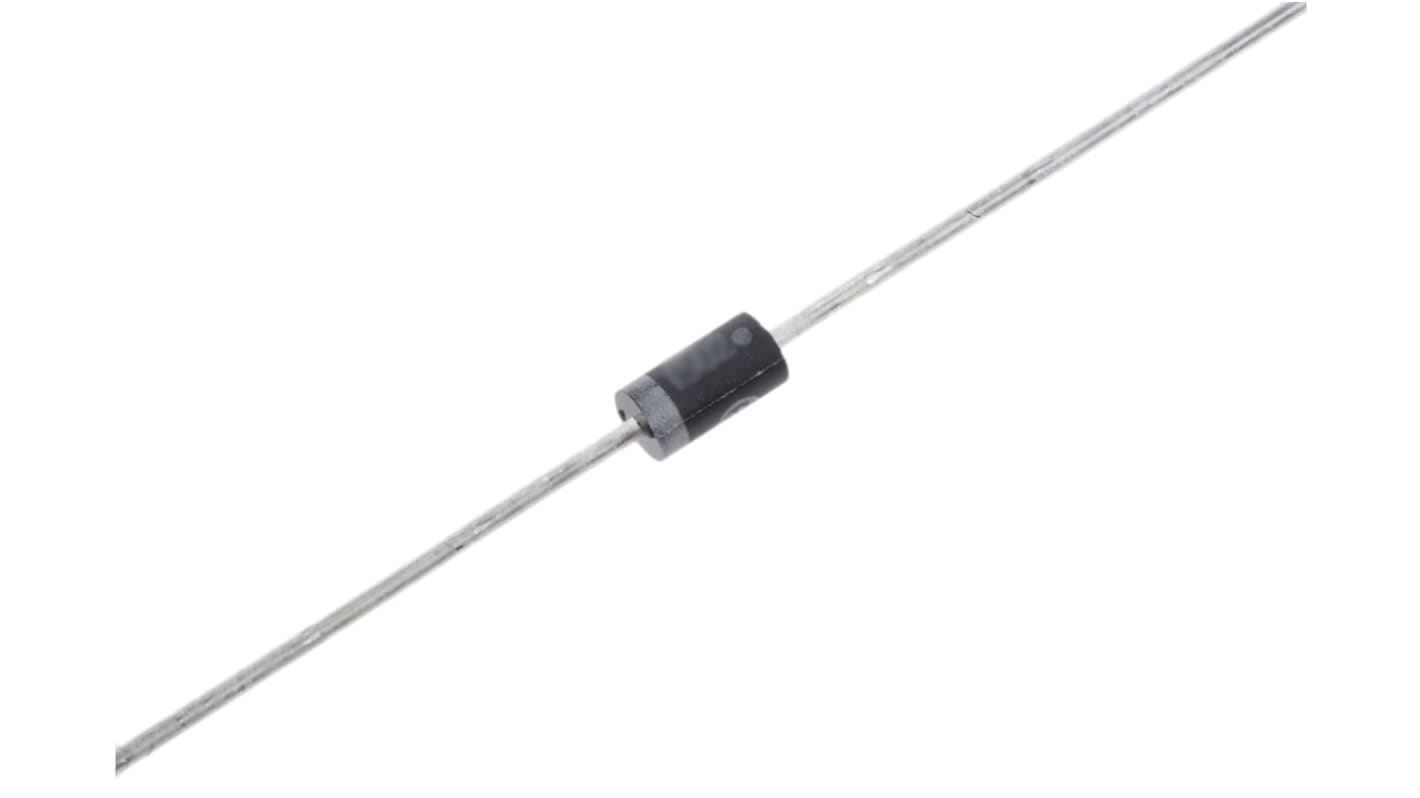

This is a complete series of 5.0 Watt Zener Diode Voltage Regulators with tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this is in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.
Up to 180 Watt Surge Rating @ 8.3 ms
Maximum Limits Guaranteed on Seven Electrical Parameters
CASE: Void-free, transfer-molded, thermo-setting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode.
MOUNTING POSITION: Any
WEIGHT: 0.7 gram (approx)
Pb-Free Packages are Available
Maximum Limits Guaranteed on Seven Electrical Parameters
CASE: Void-free, transfer-molded, thermo-setting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode.
MOUNTING POSITION: Any
WEIGHT: 0.7 gram (approx)
Pb-Free Packages are Available
Specifications
Attribute | Value |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 16V |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 5 W |
Package Type | CASE 017AA |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | ±5% |
Pin Count | 2 |
Test Current | 75mA |
Maximum Zener Impedance | 2.5Ω |
Maximum Reverse Leakage Current | 1µA |
Dimensions | 3.68 (Dia.) x 8.89mm |
Minimum Operating Temperature | -65 °C |
Forward Current | 1A |
Maximum Operating Temperature | +200 °C |
Forward Voltage | 1.2V |
