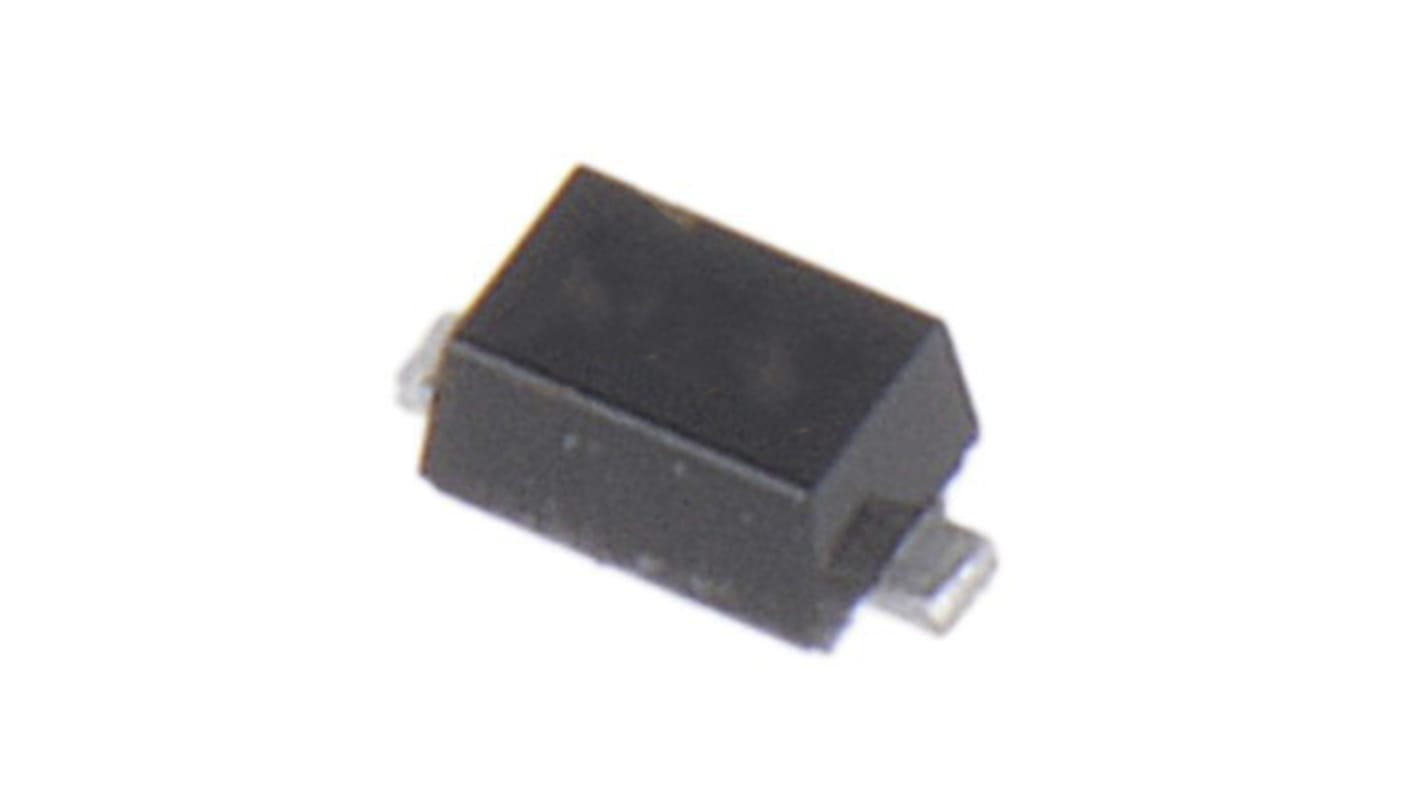

onsemi, 5.73V Zener Diode ±2% 500 mW SMT 2-Pin SOD-523
- RS Stock No.:
- 184-0985
- Mfr. Part No.:
- MM5Z5V6ST1G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 reel of 3000 units)*
£69.00
(exc. VAT)
£84.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12,000 unit(s) ready to ship
- Plus 999,987,000 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | £0.023 | £69.00 |
| 9000 - 21000 | £0.019 | £57.00 |
| 24000 - 42000 | £0.018 | £54.00 |
| 45000 - 96000 | £0.017 | £51.00 |
| 99000 + | £0.017 | £51.00 |
*price indicative
- RS Stock No.:
- 184-0985
- Mfr. Part No.:
- MM5Z5V6ST1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 5.73V | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation | 500 mW | |
| Package Type | SOD-523 | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | ±2% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 200 Ω @ 1 mA, 40 Ω @ 5 mA | |
| Maximum Reverse Leakage Current | 1µA | |
| Dimensions | 1.3 x 0.9 x 0.7mm | |
| Maximum Operating Temperature | +150 °C | |
| Forward Voltage | 0.9V | |
| Automotive Standard | AEC-Q101 | |
| Forward Current | 10mA | |
| Minimum Operating Temperature | -65 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Single | ||
Nominal Zener Voltage 5.73V | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation 500 mW | ||
Package Type SOD-523 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance ±2% | ||
Pin Count 2 | ||
Test Current 5mA | ||
Maximum Zener Impedance 200 Ω @ 1 mA, 40 Ω @ 5 mA | ||
Maximum Reverse Leakage Current 1µA | ||
Dimensions 1.3 x 0.9 x 0.7mm | ||
Maximum Operating Temperature +150 °C | ||
Forward Voltage 0.9V | ||
Automotive Standard AEC-Q101 | ||
Forward Current 10mA | ||
Minimum Operating Temperature -65 °C | ||
- COO (Country of Origin):
- CN
This series of Zener diodes is packaged in a SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Standard Zener Breakdown Voltage Range -2.4 V to 18 V
Steady State Power Rating of 500 mW
Small Body Outline Dimensions: 0.047 x 0.032 (1.20 mm x 0.80 mm)
Low Body Height: 0.028 (0.7 mm)
ESD Rating of Class 3 (>16 kV) per Human Body Model
Tight Tolerance VZ
These are PbFree Devices
Applications
Cellular phones, Handheld Portables, and high density PC Boards
Steady State Power Rating of 500 mW
Small Body Outline Dimensions: 0.047 x 0.032 (1.20 mm x 0.80 mm)
Low Body Height: 0.028 (0.7 mm)
ESD Rating of Class 3 (>16 kV) per Human Body Model
Tight Tolerance VZ
These are PbFree Devices
Applications
Cellular phones, Handheld Portables, and high density PC Boards
