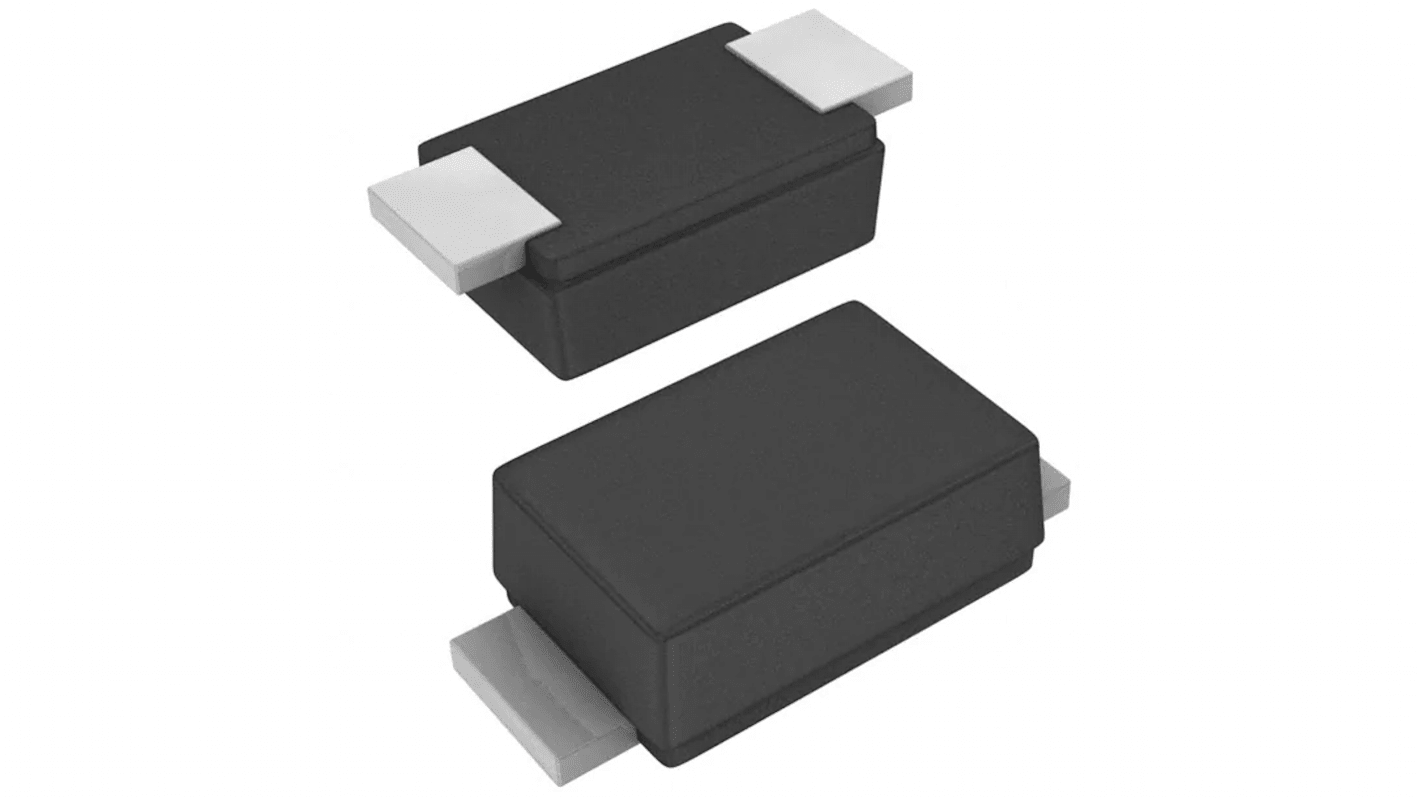

Vishay 1, 2.2 V Zener Diode, Single 0.8 W Surface 2-Pin DO-219AB
- RS Stock No.:
- 180-8221
- Mfr. Part No.:
- BZD27C15P-E3-08
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£309.00
(exc. VAT)
£372.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 12,000 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.103 | £309.00 |
*price indicative
- RS Stock No.:
- 180-8221
- Mfr. Part No.:
- BZD27C15P-E3-08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Diode Configuration | Single | |
| Nominal Zener Voltage Vz | 2.2V | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 0.8W | |
| Package Type | DO-219AB | |
| Zener Type | Silicon Planar | |
| Pin Count | 2 | |
| Test Current It | 50mA | |
| Maximum Zener Impedance | 10Ω | |
| Minimum Operating Temperature | -65°C | |
| Maximum Reverse Leakage Current | 1μA | |
| Maximum Operating Temperature | 175°C | |
| Series | BZD27C | |
| Height | 1.08mm | |
| Length | 3.9mm | |
| Standards/Approvals | RoHS | |
| Typical Voltage Temperature Coefficient | 0.1%/°C | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Diode Configuration Single | ||
Nominal Zener Voltage Vz 2.2V | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 0.8W | ||
Package Type DO-219AB | ||
Zener Type Silicon Planar | ||
Pin Count 2 | ||
Test Current It 50mA | ||
Maximum Zener Impedance 10Ω | ||
Minimum Operating Temperature -65°C | ||
Maximum Reverse Leakage Current 1μA | ||
Maximum Operating Temperature 175°C | ||
Series BZD27C | ||
Height 1.08mm | ||
Length 3.9mm | ||
Standards/Approvals RoHS | ||
Typical Voltage Temperature Coefficient 0.1%/°C | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
Vishay Zener Diode
The Vishay SMF (DO219AB) Zener diode has a voltage rating of 15VDC and power rating of 0.8W at 5% voltage tolerance. The Zener current of the diode is 5μA and reverse current rating is 5μA.
Features and Benefits
• ESD capability according to AEC-Q101: human body model > 8kV and machine model > 800V
• Excellent stability
• Lead (Pb) free component
• Low leakage current
• Low profile surface-mount package
• Meets MSL level 1, LF maximum peak of 260°C
• Operating junction temperature ranges between -65°C and 175°C
• Silicon planar power Zener diode
• Wave and reflow solderable
• Zener and surge current specification
Applications
• Voltage regulators
• Voltage stabilization
Certifications
• AEC-Q101 qualified
• Automotive Grade
• JESD 201 class 2
• J-STD-020
• UL94 listed
