Nexperia 2, 6.2 V Zener Diode, Dual 350 mW 5 % Surface 3-Pin SOT-323
- RS Stock No.:
- 153-2894
- Mfr. Part No.:
- BZB784-C6V2,115
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 100 units)*
£4.90
(exc. VAT)
£5.90
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 200 | £0.049 | £4.90 |
| 300 - 500 | £0.041 | £4.10 |
| 600 - 1100 | £0.033 | £3.30 |
| 1200 - 2400 | £0.03 | £3.00 |
| 2500 + | £0.028 | £2.80 |
*price indicative
- RS Stock No.:
- 153-2894
- Mfr. Part No.:
- BZB784-C6V2,115
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Diode Configuration | Dual | |
| Nominal Zener Voltage Vz | 6.2V | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 2 | |
| Maximum Power Dissipation Pd | 350mW | |
| Package Type | SOT-323 | |
| Zener Type | Voltage Regulator | |
| Pin Count | 3 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 10Ω | |
| Minimum Operating Temperature | -55°C | |
| Maximum Reverse Leakage Current | 3μA | |
| Zener Voltage Tolerance ± | 5% | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.2mm | |
| Standards/Approvals | No | |
| Series | BZB784C6V2 | |
| Height | 1.1mm | |
| Typical Voltage Temperature Coefficient | 2.2mV/K | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Diode Configuration Dual | ||
Nominal Zener Voltage Vz 6.2V | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 2 | ||
Maximum Power Dissipation Pd 350mW | ||
Package Type SOT-323 | ||
Zener Type Voltage Regulator | ||
Pin Count 3 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 10Ω | ||
Minimum Operating Temperature -55°C | ||
Maximum Reverse Leakage Current 3μA | ||
Zener Voltage Tolerance ± 5% | ||
Maximum Operating Temperature 150°C | ||
Length 2.2mm | ||
Standards/Approvals No | ||
Series BZB784C6V2 | ||
Height 1.1mm | ||
Typical Voltage Temperature Coefficient 2.2mV/K | ||
Automotive Standard AEC-Q101 | ||

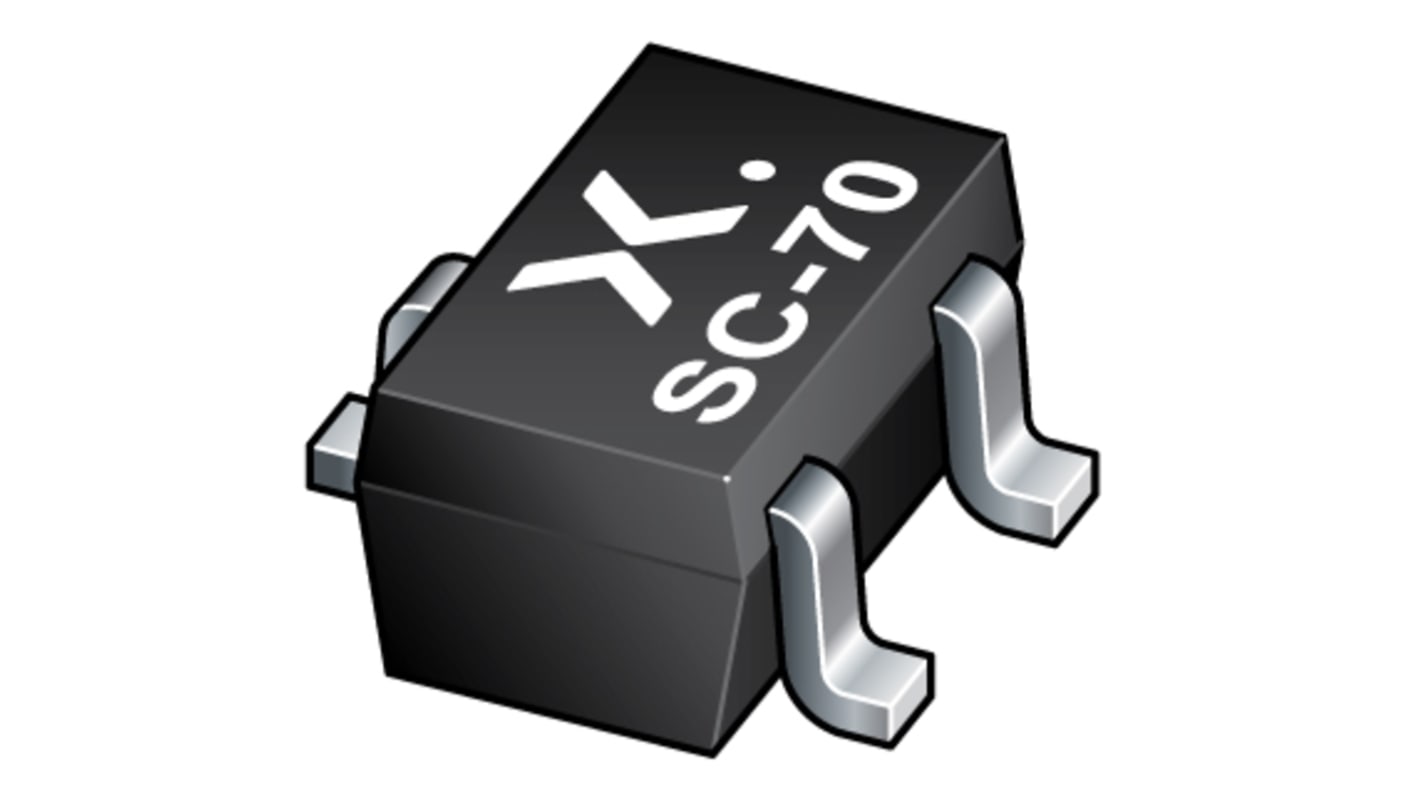

Voltage regulator double diodes, Low-power voltage regulator diodes in a small SOT323 (SC-70) package.
Total power dissipation: max. 350 mW
Approx. 5 pct. VZ tolerance
Working voltage range: nom. 2.4 to 15 V (E24 range).
AEC-Q101 qualified
General regulation functions
ESD and surge protection.
