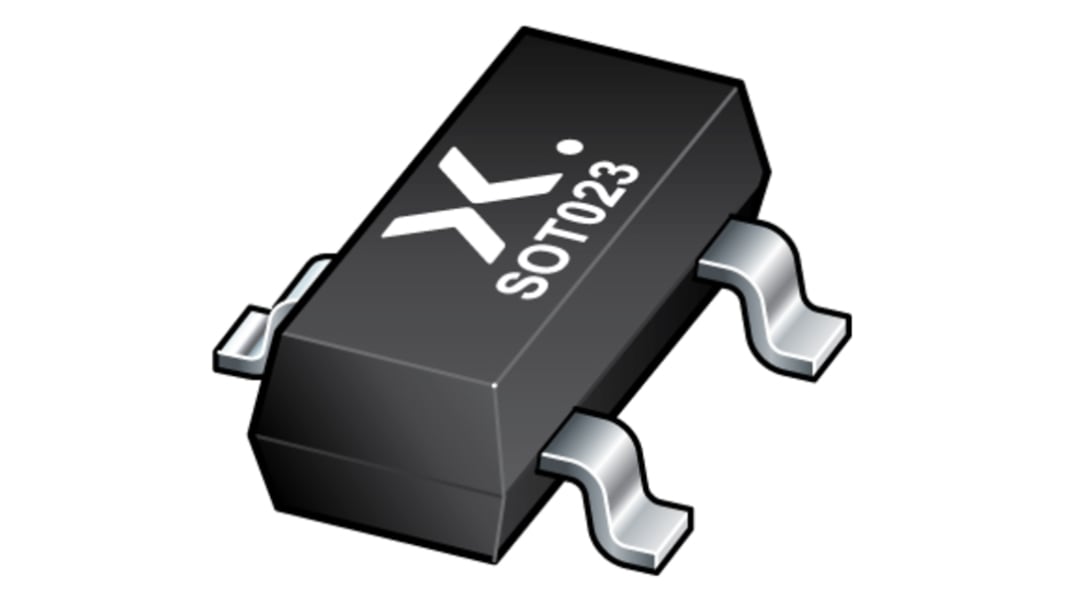

Nexperia, 3.6V Zener Diode ±2% 250 mW SMT 3-Pin SOT-23, TO-236AB
- RS Stock No.:
- 153-2872
- Mfr. Part No.:
- BZX84-B3V6VL
- Brand:
- Nexperia
10000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 250)
£0.02
(exc. VAT)
£0.02
(inc. VAT)
| Units | Per unit | Per Pack* |
| 250 + | £0.02 | £5.00 |
| *price indicative | ||
- RS Stock No.:
- 153-2872
- Mfr. Part No.:
- BZX84-B3V6VL
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details
Voltage regulator diodes, Low-power voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ±1 % (BZX84-A), ±2 % (BZX84-B) and approximately ±5 % (BZX84-C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4Vto75 V.
Total power dissipation: ≤ 250 mW
Three tolerance series: ±1%, ±2% and approximately ±5%
AEC-Q101 qualified
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: ≤ 40 W
General regulation functions
Three tolerance series: ±1%, ±2% and approximately ±5%
AEC-Q101 qualified
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: ≤ 40 W
General regulation functions
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 3.6V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 250 mW |
| Package Type | SOT-23, TO-236AB |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 3 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 3 x 1.4 x 1mm |
| Forward Current | 200mA |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
| Forward Voltage | 0.9V |
| Minimum Operating Temperature | -55 °C |
