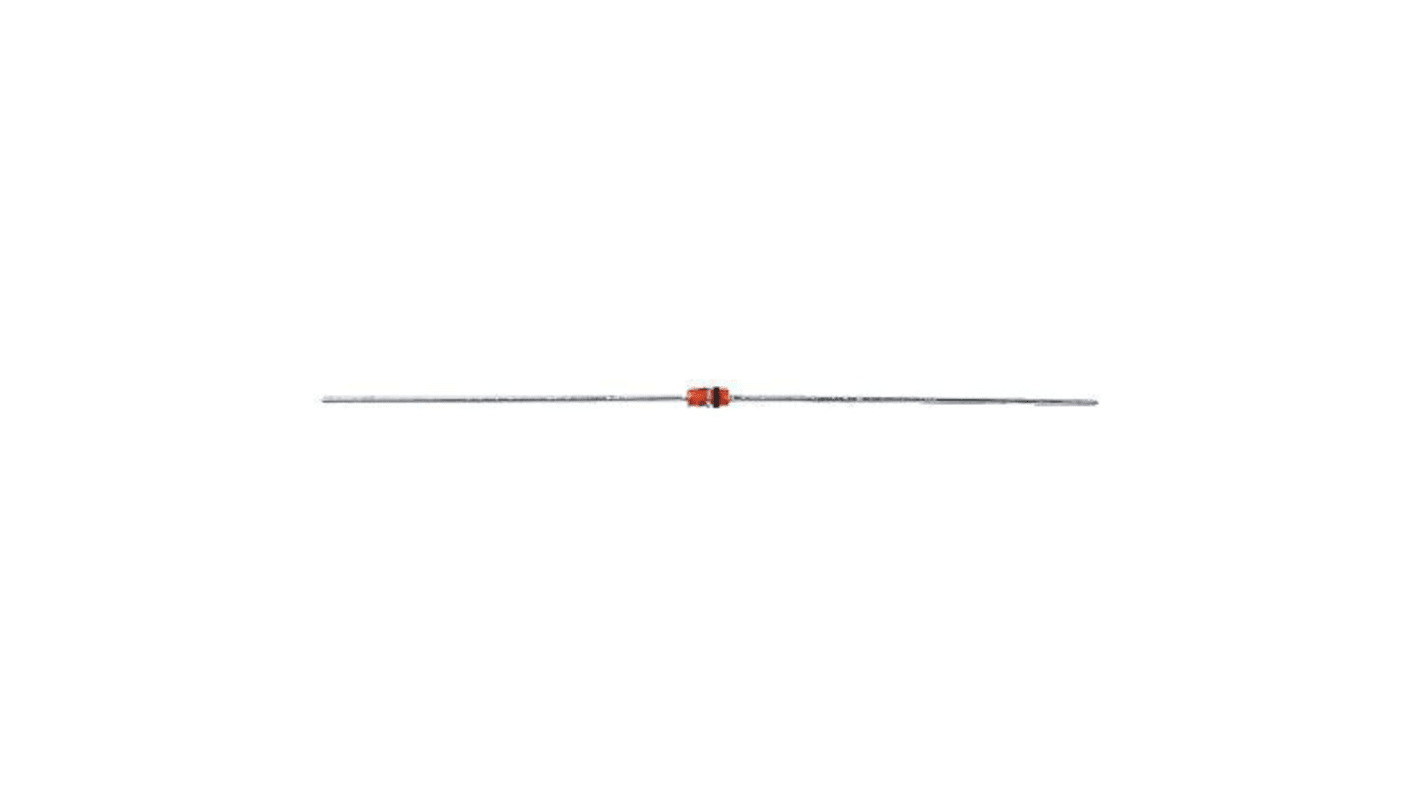

Vishay, 3V Zener Diode 3% 500 mW Through Hole 2-Pin DO-35
- RS Stock No.:
- 145-2740
- Mfr. Part No.:
- TZX3V0B-TR
- Brand:
- Vishay
Available to back order for despatch 23/08/2024
Price Each (On a Reel of 10000)
£0.024
(exc. VAT)
£0.029
(inc. VAT)
| Units | Per unit | Per Reel* |
| 10000 - 10000 | £0.024 | £240.00 |
| 20000 - 40000 | £0.023 | £230.00 |
| 50000 + | £0.022 | £220.00 |
| *price indicative | ||
- RS Stock No.:
- 145-2740
- Mfr. Part No.:
- TZX3V0B-TR
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 500mW, TZX Series, Vishay Semiconductor
Small Signal Zener Diodes
Very sharp reverse characteristic
Low reverse current level
Very high stability
Low noise
AEC-Q101 qualified
Very sharp reverse characteristic
Low reverse current level
Very high stability
Low noise
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 3V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 3% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 100Ω |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 1.7 (Dia.) x 3.9mm |
| Maximum Operating Temperature | +175 °C |
