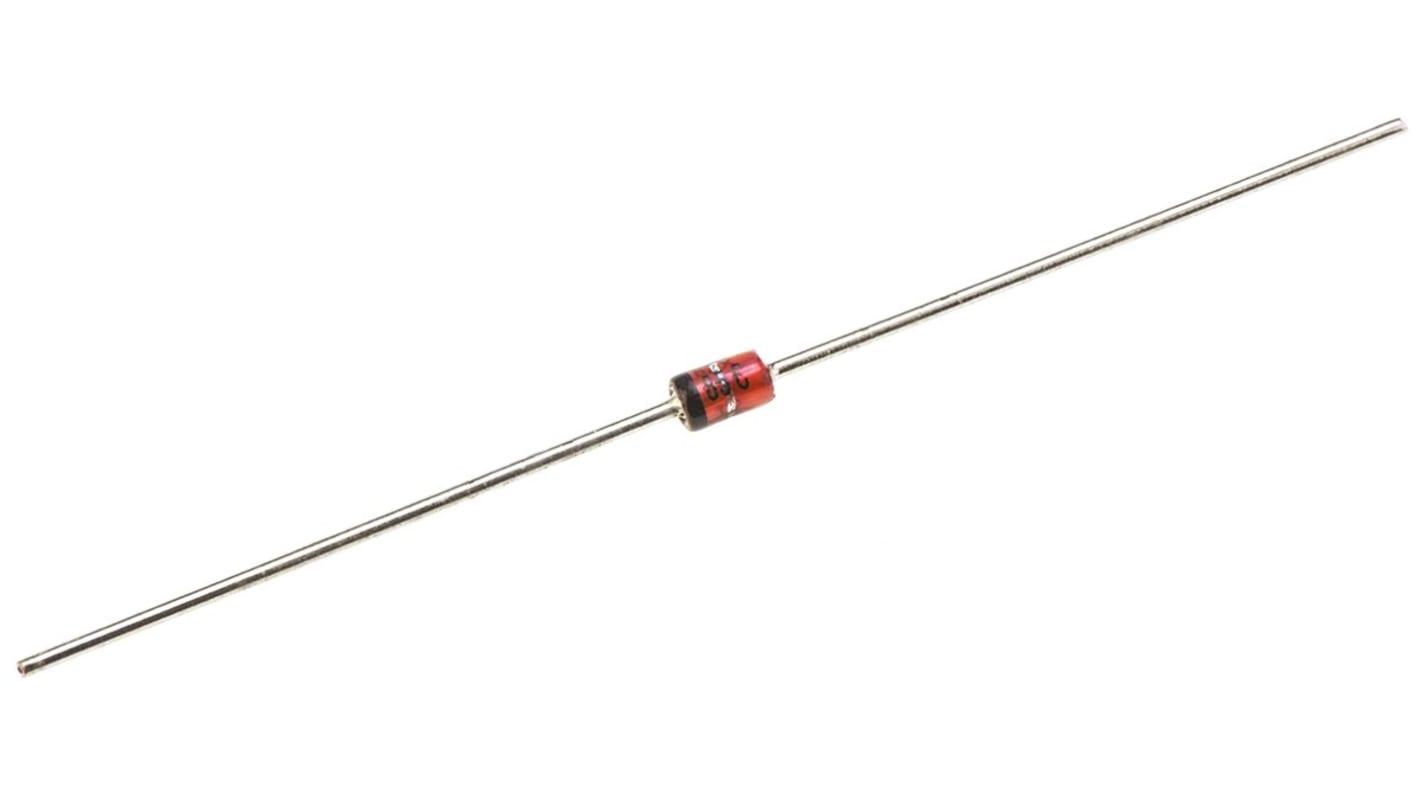

Magnatec, 12V Zener Diode 5% 1.3 W Through Hole 2-Pin DO-41
- RS Stock No.:
- 812-487
- Mfr. Part No.:
- BZX85C12V
- Brand:
- Magnatec
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£0.042
(exc. VAT)
£0.05
(inc. VAT)
- RS Stock No.:
- 812-487
- Mfr. Part No.:
- BZX85C12V
- Brand:
- Magnatec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Magnatec | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 12V | |
| Mounting Type | Through Hole | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation | 1.3 W | |
| Package Type | DO-41 | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 20mA | |
| Maximum Zener Impedance | 350Ω | |
| Maximum Reverse Leakage Current | 500nA | |
| Dimensions | 2.5 (Dia.) x 4.1mm | |
| Typical Voltage Temperature Coefficient | 0.045 %/°C, 0.085 %/°C | |
| Maximum Operating Temperature | +175 °C | |
Select all | ||
|---|---|---|
Brand Magnatec | ||
Diode Configuration Single | ||
Nominal Zener Voltage 12V | ||
Mounting Type Through Hole | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation 1.3 W | ||
Package Type DO-41 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance 5% | ||
Pin Count 2 | ||
Test Current 20mA | ||
Maximum Zener Impedance 350Ω | ||
Maximum Reverse Leakage Current 500nA | ||
Dimensions 2.5 (Dia.) x 4.1mm | ||
Typical Voltage Temperature Coefficient 0.045 %/°C, 0.085 %/°C | ||
Maximum Operating Temperature +175 °C | ||
Zener Diodes 1.3W, BZX85C Series, Magnatec
Zener Diodes, Magnatec
