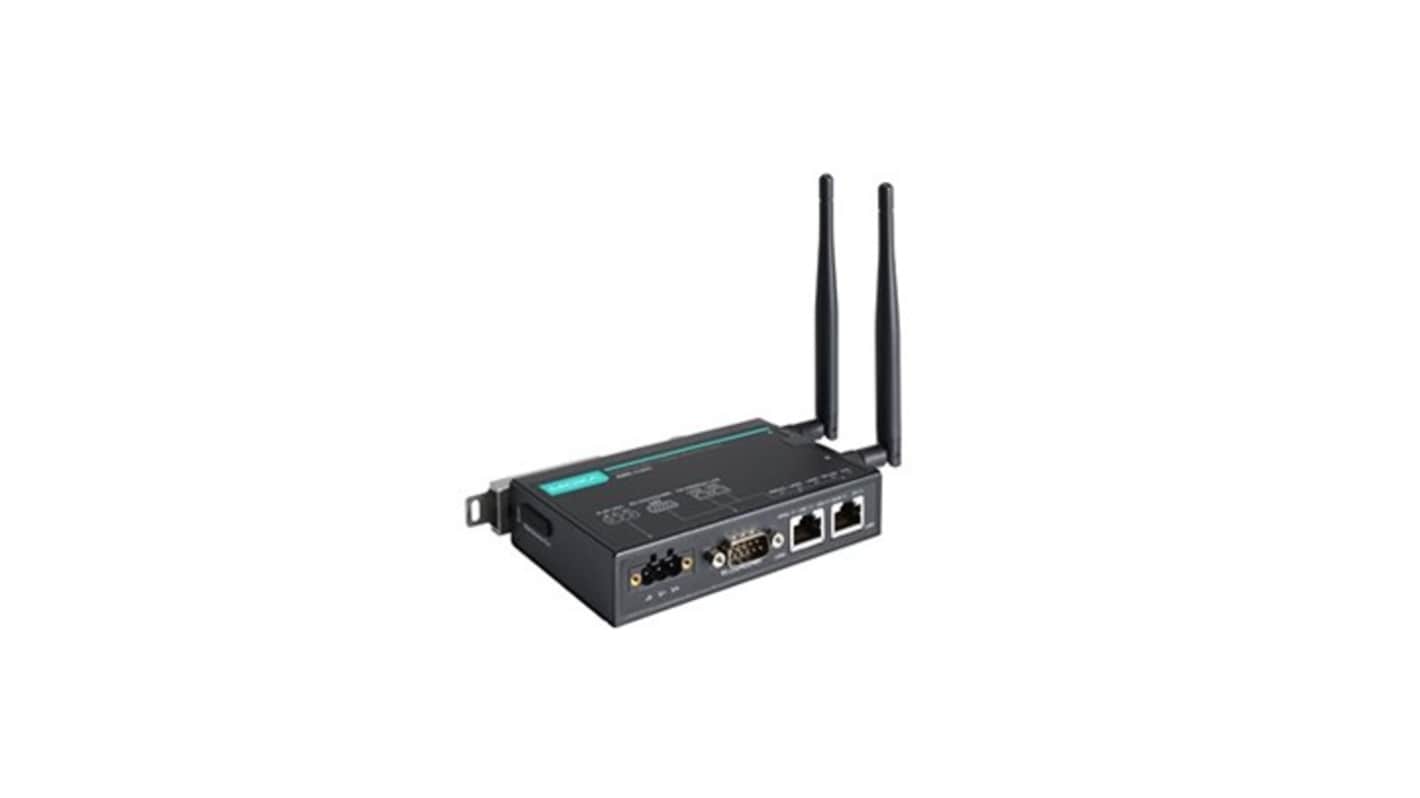

MOXA AWK-1137C-US-T Industrial Wireless Access Point 300Mbps 802.11a/b/g/n
- RS Stock No.:
- 634-951
- Mfr. Part No.:
- AWK-1137C-US-T
- Brand:
- MOXA
Subtotal (1 unit)*
£522.08
(exc. VAT)
£626.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £522.08 |
*price indicative
- RS Stock No.:
- 634-951
- Mfr. Part No.:
- AWK-1137C-US-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Industrial Wireless Access Point | |
| Model Number | AWK-1137C-US-T | |
| Wireless Technology | 802.11a/b/g/n | |
| Transmission Speed | 100Mbps | |
| Wireless Data Rate | 300Mbps | |
| Nominal Supply Voltage | 9 to 30 V dc | |
| Mount Type | DIN Rail, Wall | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Width | 77.1 mm | |
| Height | 115.5mm | |
| Depth | 26mm | |
| Weight | 470g | |
| Standards/Approvals | RCM, UL 60950-1, KC, EN 60950-1, IEC 61000-4-8, FCC ID SLE-1137C, IEC 61000-4-6, IEC 61000-4-3, SRRC, NCC, MIC, EN 55032/24, FCC Part 15B Class A, IEC 61000-4-2, IEC 60068-2-6, CISPR 22, IEC 61000-4-5, EN 300 328, E mark E1, IEC 61000-4-4, EN 301 489-1/17, EN 61000-6-2/-6-4, EN 301 893, WPC | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Industrial Wireless Access Point | ||
Model Number AWK-1137C-US-T | ||
Wireless Technology 802.11a/b/g/n | ||
Transmission Speed 100Mbps | ||
Wireless Data Rate 300Mbps | ||
Nominal Supply Voltage 9 to 30 V dc | ||
Mount Type DIN Rail, Wall | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Width 77.1 mm | ||
Height 115.5mm | ||
Depth 26mm | ||
Weight 470g | ||
Standards/Approvals RCM, UL 60950-1, KC, EN 60950-1, IEC 61000-4-8, FCC ID SLE-1137C, IEC 61000-4-6, IEC 61000-4-3, SRRC, NCC, MIC, EN 55032/24, FCC Part 15B Class A, IEC 61000-4-2, IEC 60068-2-6, CISPR 22, IEC 61000-4-5, EN 300 328, E mark E1, IEC 61000-4-4, EN 301 489-1/17, EN 61000-6-2/-6-4, EN 301 893, WPC | ||
- COO (Country of Origin):
- TW
The Moxa Europe Ideal client solution for industrial wireless mobile applications. It enables WLAN connections for both Ethernet and serial devices, and is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. It can operate on either the 2.4 or 5 GHz bands, and is backwards-compatible with existing 802.11a/b/g deployments to futureproof your wireless investments. The Wireless add-on for the MXview network management utility visualizes the AWK's invisible wireless connections to ensure wall-to-wall Wi-Fi connectivity.
Easy network setup with Network Address Translation
Integrated robust antenna and power isolation
Anti-vibration design
Compact size for your industrial applications
