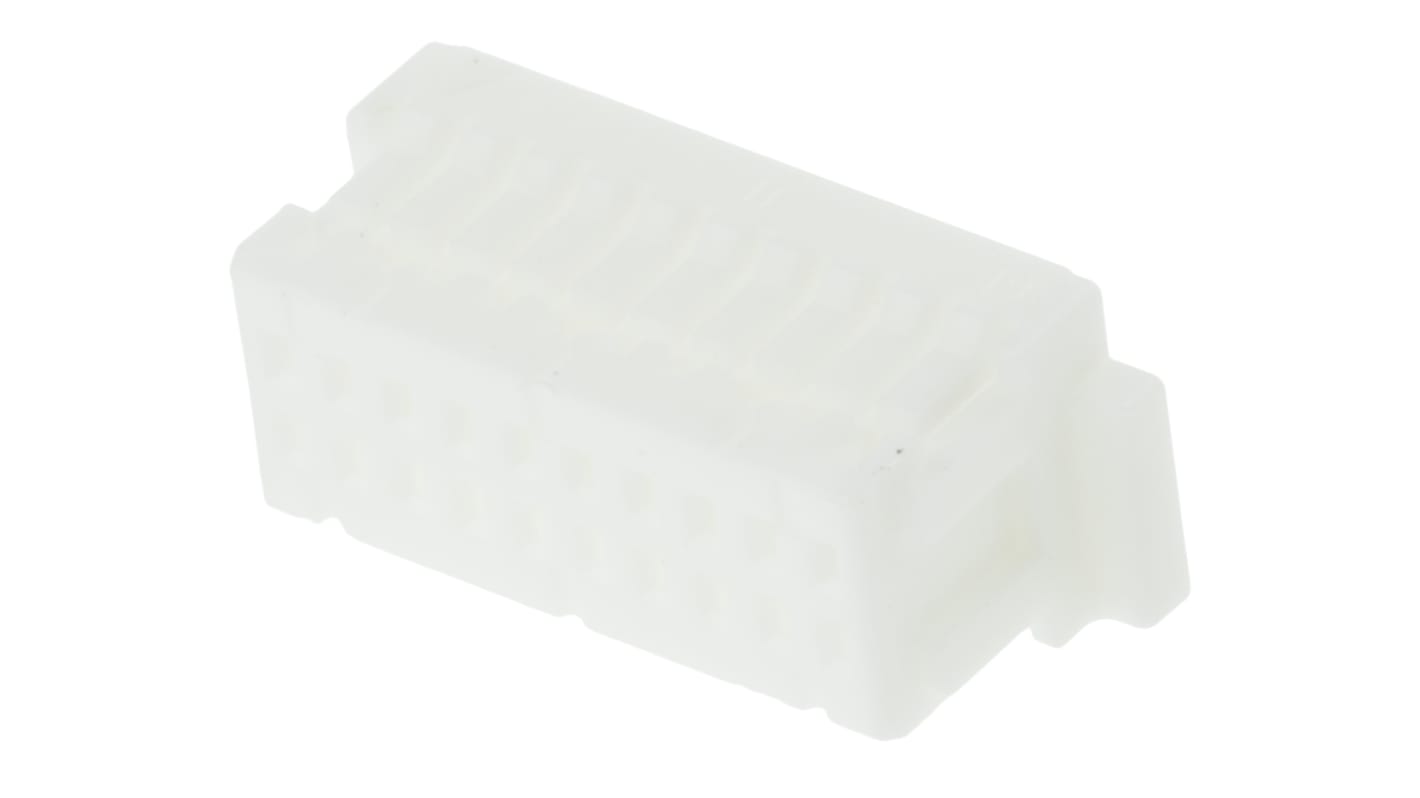

JST, SHD Female Connector Housing, 1mm Pitch, 20 Way, 2 Row Right Angle, Straight
- RS Stock No.:
- 752-1686
- Mfr. Part No.:
- SHDR-20V-S-B
- Brand:
- JST
1160 In stock - FREE next working day delivery available
100 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.168
(exc. VAT)
£0.202
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 240 | £0.168 | £1.68 |
| 250 - 990 | £0.101 | £1.01 |
| 1000 - 4990 | £0.095 | £0.95 |
| 5000 - 9990 | £0.09 | £0.90 |
| 10000 + | £0.08 | £0.80 |
| *price indicative | ||
- RS Stock No.:
- 752-1686
- Mfr. Part No.:
- SHDR-20V-S-B
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
1.0mm Wire to Board SHD Series Housings
The Wire to Board SHD Connector Range 1.0mm pitch housing design provides protusions on the ends to assist disengagement without the need to pull the wires.
Note
1.0mm Wire to Board - JST SHD Series
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 1mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | SHD |
| For Use With | Board-In Connector, Crimp Connector |
| Body Orientation | Right Angle, Straight |
| Length | 13mm |
| Width | 4.9mm |
| Housing Material | PBT |
