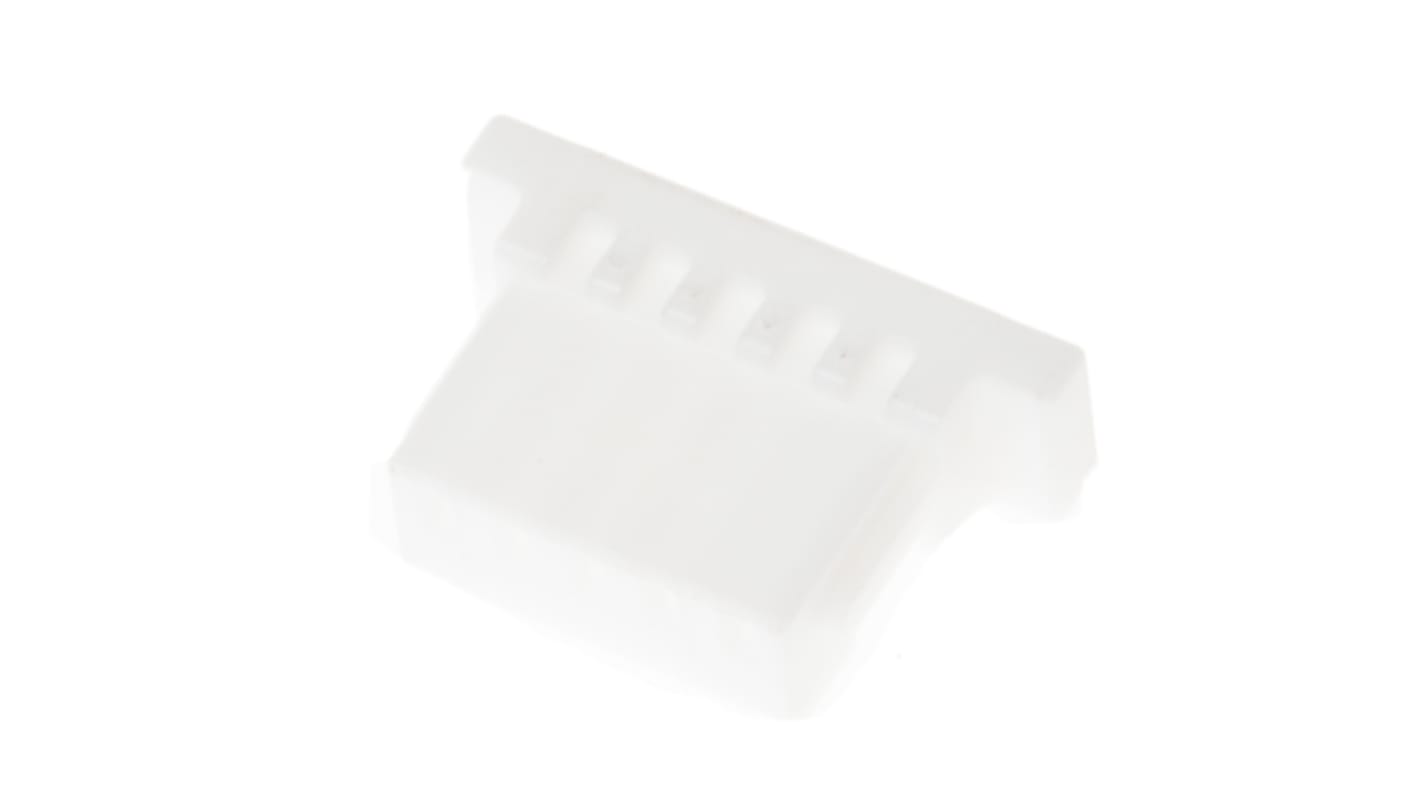

JST, SH Female Connector Housing, 1mm Pitch, 5 Way, 1 Row
- RS Stock No.:
- 353-1103
- Mfr. Part No.:
- SHR-05V-S-B
- Brand:
- JST
2250 In stock - FREE next working day delivery available
1930 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 10)
£0.114
(exc. VAT)
£0.137
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 240 | £0.114 | £1.14 |
| 250 - 990 | £0.054 | £0.54 |
| 1000 - 4990 | £0.05 | £0.50 |
| 5000 - 9990 | £0.046 | £0.46 |
| 10000 + | £0.042 | £0.42 |
| *price indicative | ||
- RS Stock No.:
- 353-1103
- Mfr. Part No.:
- SHR-05V-S-B
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
SH Series Wire to Board Housings
The SH Series from JST are a range of very small, ultra-compact, low profile 1.0 mm pitch connector housings. These housings provide a quality receptacle for connectors when they are mounted to a printed circuit board. They are ideal for fitting where space is limited and for any wire to board connections.
Features and Benefits
• 1.0 mm pitch
• Low profile, ultra-compact design
• Natural (white) in colour
• Finger gripping protrusions at either end making removal from the header without holding the wires
• Polarised housings ensuring accurate mating
• Single Row
• Low profile, ultra-compact design
• Natural (white) in colour
• Finger gripping protrusions at either end making removal from the header without holding the wires
• Polarised housings ensuring accurate mating
• Single Row
1.0mm Wire to Board - JST SH Series
The JST SH connectors are an extremely compact and versatile Wire-to-board interconnection system on a 1mm pitch utilising surface mount technology and pre-terminated leads. Available in 2, 3, 4, 8 and 10 way versions, this high quality range is suitable for many applications where board space is limited.
Low mating force
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Pitch | 1mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | SH |
| For Use With | Disconnectable Crimp Connector |
| Body Orientation | Straight |
| Length | 8mm |
| Width | 2.8mm |
| Housing Material | PBT |
