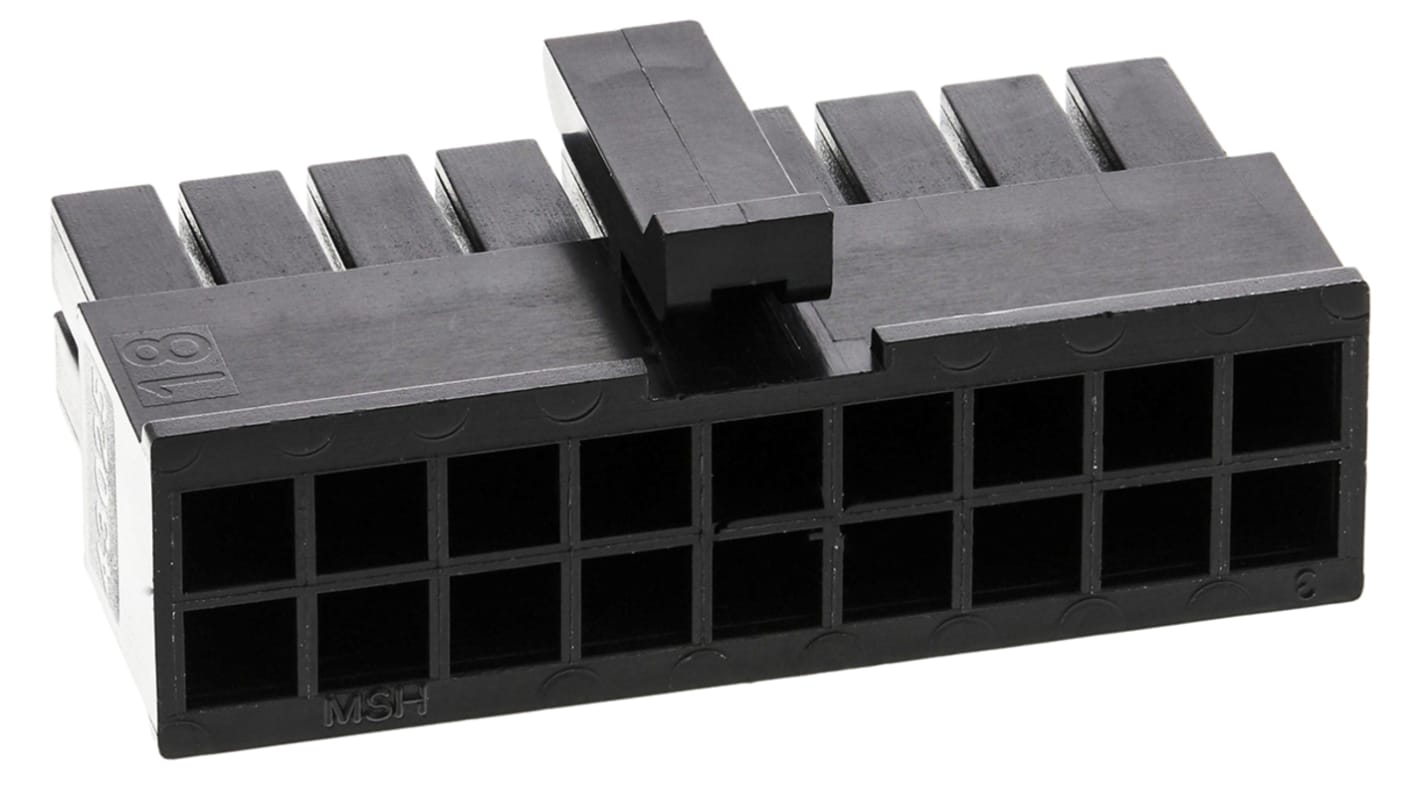

Molex, 43025 Female Connector Housing, 3mm Pitch, 18 Way, 2 Row

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

Make speedy cable joins to your PCB with this connector housing from Molex. As it has 18 contacts, this is a versatile device that gives you enough room to achieve a multi-signal setup. It shields the connectors from dirt and moisture to ensure reliable electrical connections that aren't hampered by contamination. The unit handles temperatures from -40°C to +105°C, so there's little chance of it failing in demanding environments.

• Nylon material provides electrical insulation to reduce the risk of short-circuits and electric shocks
• Straight body orientation for hassle-free front-facing mounting
• Easy to handle and won't strain your board, as it weighs just 1.852g

• Audio-visual equipment
• Gaming consoles
• Home automation systems

Thanks to the built-in lock-to-mating feature, this housing's designed to hold onto wires firmly in vibrating conditions.

Molex Micro-Fit 3.0 Series
