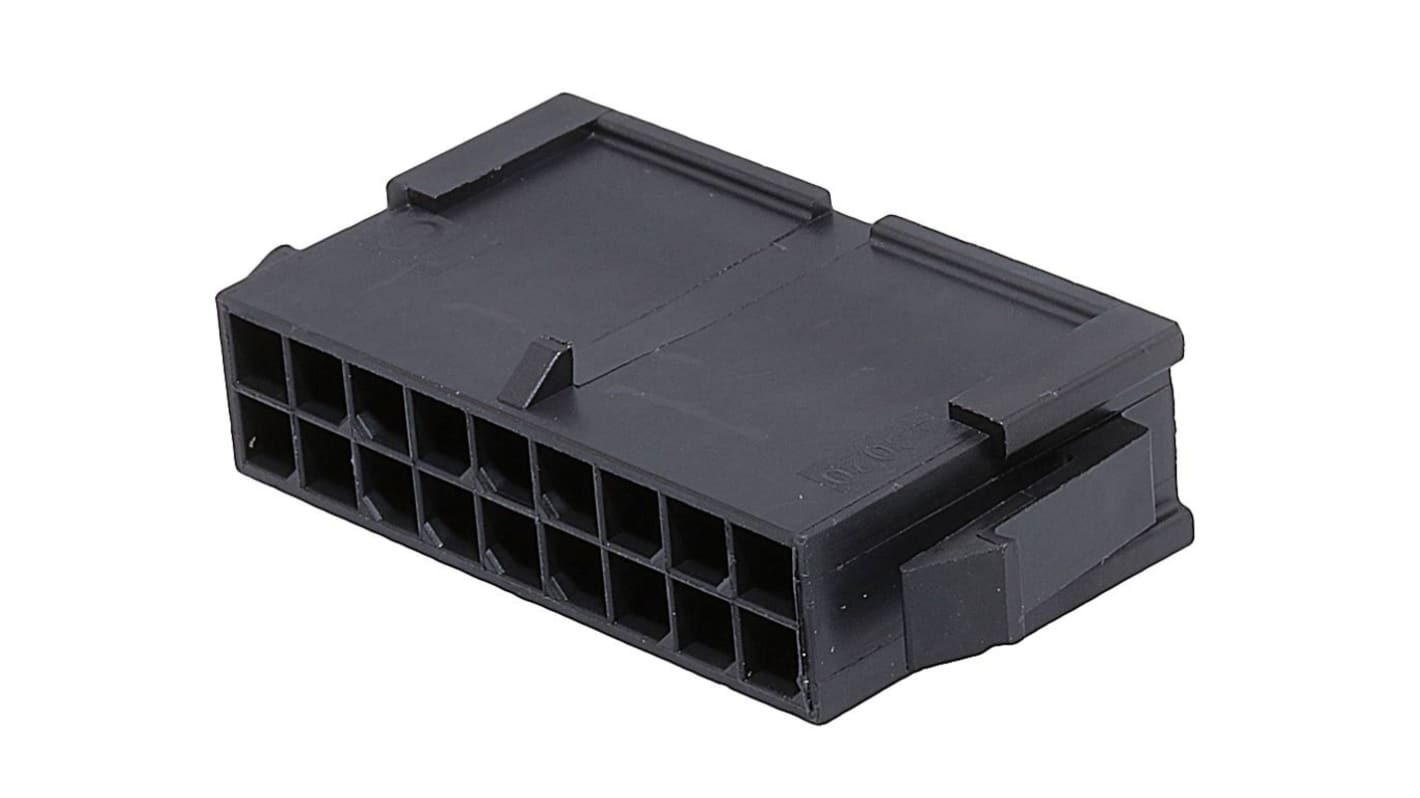

Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 18 Way, 2 Row
- RS Stock No.:
- 170-7110
- Mfr. Part No.:
- 43020-1800
- Brand:
- Molex
Subtotal (1 bag of 600 units)*
£649.80
(exc. VAT)
£780.00
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 1,800 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 600 + | £1.083 | £649.80 |
*price indicative
- RS Stock No.:
- 170-7110
- Mfr. Part No.:
- 43020-1800
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 18 | |
| Number of Rows | 2 | |
| Pitch | 3mm | |
| Gender | Male | |
| Mounting Type | Panel Mount | |
| Series | Micro-Fit 3.0 | |
| For Use With | Crimp Terminal | |
| Body Orientation | Straight | |
| Length | 27.85mm | |
| Width | 6.85mm | |
| Housing Material | PET | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 18 | ||
Number of Rows 2 | ||
Pitch 3mm | ||
Gender Male | ||
Mounting Type Panel Mount | ||
Series Micro-Fit 3.0 | ||
For Use With Crimp Terminal | ||
Body Orientation Straight | ||
Length 27.85mm | ||
Width 6.85mm | ||
Housing Material PET | ||
- COO (Country of Origin):
- US
Molex Micro-Fit 3.0 Series Connector Housing, 18 Contacts, 2 Rows - 43020-1800
This high-density connector housing by Molex, offers a straight orientation with a 3mm pitch. It provides a secure male crimp terminal solution for various applications.
Features & Benefits
• Constructed with PET housing material for durability
• Panel mount design for easy installation
• Dual-row housing with 18 circuits for enhanced connectivity
• Ideal for wire-to-wire power applications
• Compact sise with dimensions of 27.85mm x 6.85mm x 24.77mm
• Polarised for secure mating connection
• Panel mount design for easy installation
• Dual-row housing with 18 circuits for enhanced connectivity
• Ideal for wire-to-wire power applications
• Compact sise with dimensions of 27.85mm x 6.85mm x 24.77mm
• Polarised for secure mating connection
Applications
• Designed for use with crimp terminals in electrical and mechanical industries
Can it accommodate different wire gauges?
It supports various wire sises within the specified range.
Will it work with other connectors in the Micro-Fit 3.0 series?
Yes, it is compatible with other components in the same series.
Is it suitable for high-temperature environments?
The connector housing can withstand temperatures ranging from -40°C to +105°C.
Molex Micro-Fit 3.0 Series
