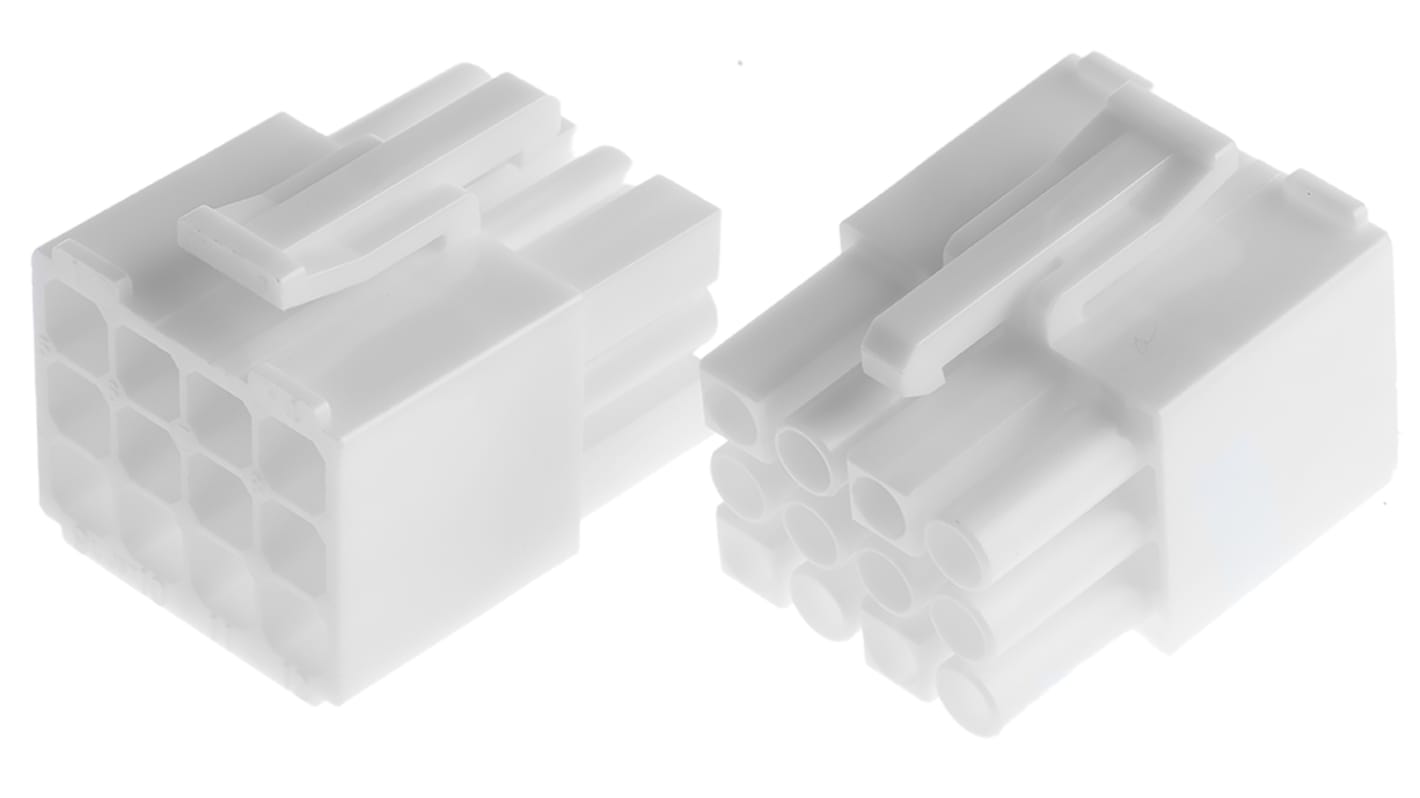

JST, EL Male Connector Housing, 12 Way, 3 Row
- RS Stock No.:
- 490-6441
- Mfr. Part No.:
- ELP-12V
- Brand:
- JST
Save 29% when you buy 5000 units
Subtotal (1 pack of 10 units)*
£6.46
(exc. VAT)
£7.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 410 unit(s) ready to ship
- Plus 600 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.646 | £6.46 |
| 100 - 490 | £0.625 | £6.25 |
| 500 - 2490 | £0.54 | £5.40 |
| 2500 - 4990 | £0.484 | £4.84 |
| 5000 + | £0.457 | £4.57 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.894
(exc. VAT)
£1.073
(inc. VAT)
- RS Stock No.:
- 490-6441
- Mfr. Part No.:
- ELP-12V
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 12 | |
| Number of Rows | 3 | |
| Gender | Male | |
| Series | EL | |
| For Use With | 4.5 mm Disconnectable Crimp Wire-to-Wire Connector | |
| Length | 19.3mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 12 | ||
Number of Rows 3 | ||
Gender Male | ||
Series EL | ||
For Use With 4.5 mm Disconnectable Crimp Wire-to-Wire Connector | ||
Length 19.3mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- JP
JST EL Connector Housing
The EL range of connector housings from JST have a 4.5mm pitch. The contacts are easily inserted and installed into the connector housings and due to the housings wide surface area, a safe and smooth connection can be maintained when mating, even if mechanical distortion occurs.
Features and Benefits
• 4.5mm pitch
• 2 to 15 circuits
• Natural colour
• Wire to wire configurations and fittings
• Locking lances ensure the contact is correctly installed and locked in
• Highly durable due to slit in housing arm lock mechanism
• 2 to 15 circuits
• Natural colour
• Wire to wire configurations and fittings
• Locking lances ensure the contact is correctly installed and locked in
• Highly durable due to slit in housing arm lock mechanism
Standards
Compliant with UL, CSA, TUV
Electrical Appliance and Material Safety Act (spatial / creepage distance for insulating material)
Electrical Appliance and Material Safety Act (spatial / creepage distance for insulating material)
