JST, EL Male Connector Housing, 3 Row
- RS Stock No.:
- 490-6435
- Mfr. Part No.:
- ELP-09V
- Brand:
- JST
1060 In stock for delivery within 5 working days
Added
Price Each (In a Pack of 10)
£0.368
(exc. VAT)
£0.442
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £0.368 | £3.68 |
| 100 - 490 | £0.328 | £3.28 |
| 500 - 2490 | £0.285 | £2.85 |
| 2500 - 4990 | £0.252 | £2.52 |
| 5000 + | £0.239 | £2.39 |
| *price indicative | ||
- RS Stock No.:
- 490-6435
- Mfr. Part No.:
- ELP-09V
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

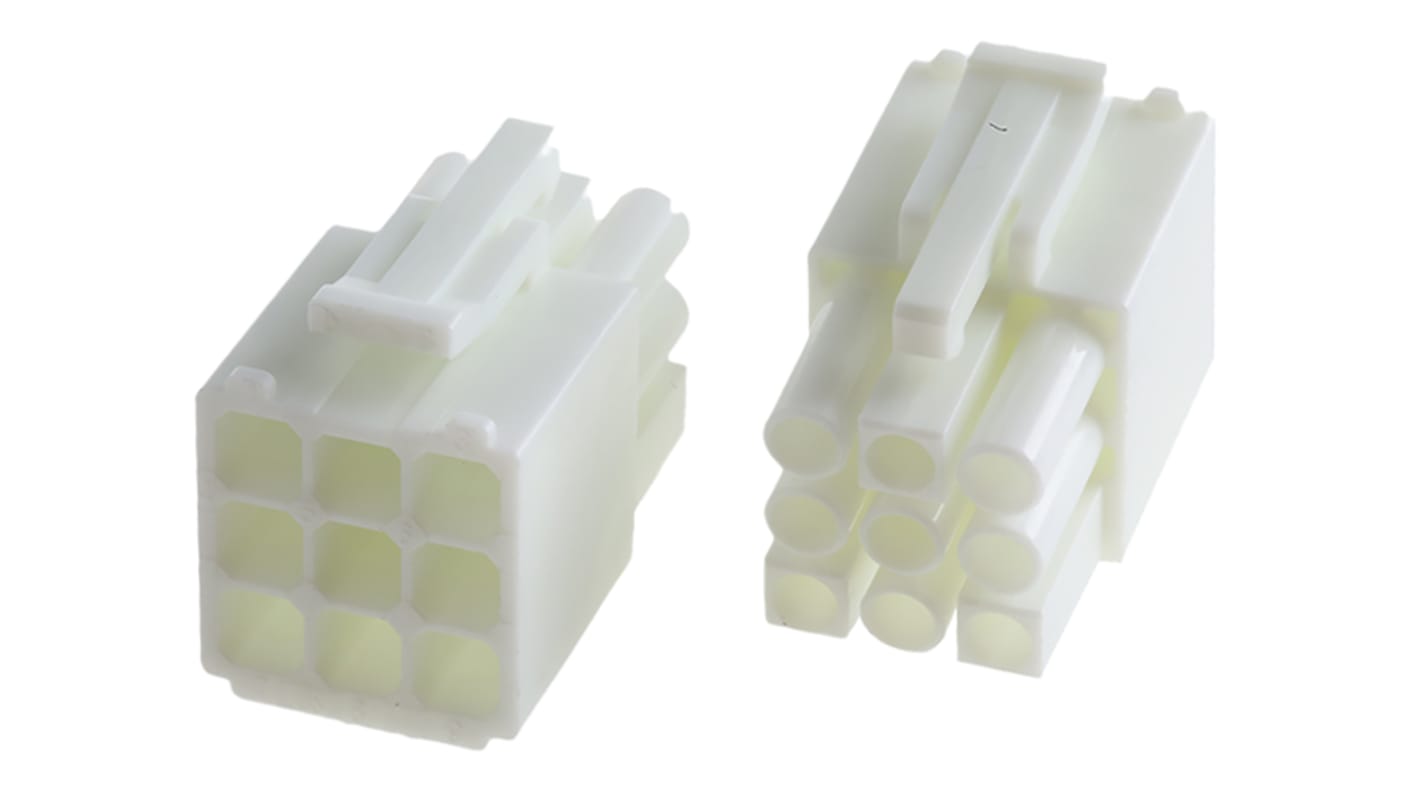

JST EL Connector Housing
The EL range of connector housings from JST have a 4.5mm pitch. The contacts are easily inserted and installed into the connector housings and due to the housings wide surface area, a safe and smooth connection can be maintained when mating, even if mechanical distortion occurs.
Features and Benefits
• 4.5mm pitch
• 2 to 15 circuits
• Natural colour
• Wire to wire configurations and fittings
• Locking lances ensure the contact is correctly installed and locked in
• Highly durable due to slit in housing arm lock mechanism
• 2 to 15 circuits
• Natural colour
• Wire to wire configurations and fittings
• Locking lances ensure the contact is correctly installed and locked in
• Highly durable due to slit in housing arm lock mechanism
Standards
Compliant with UL, CSA, TUV
Electrical Appliance and Material Safety Act (spatial / creepage distance for insulating material)
Electrical Appliance and Material Safety Act (spatial / creepage distance for insulating material)
Specifications
Attribute | Value |
|---|---|
| Number of Rows | 3 |
| Gender | Male |
| Series | EL |
| For Use With | 4.5 mm Disconnectable Crimp Wire-to-Wire Connector |
| Length | 14.8mm |
| Housing Material | Nylon |
