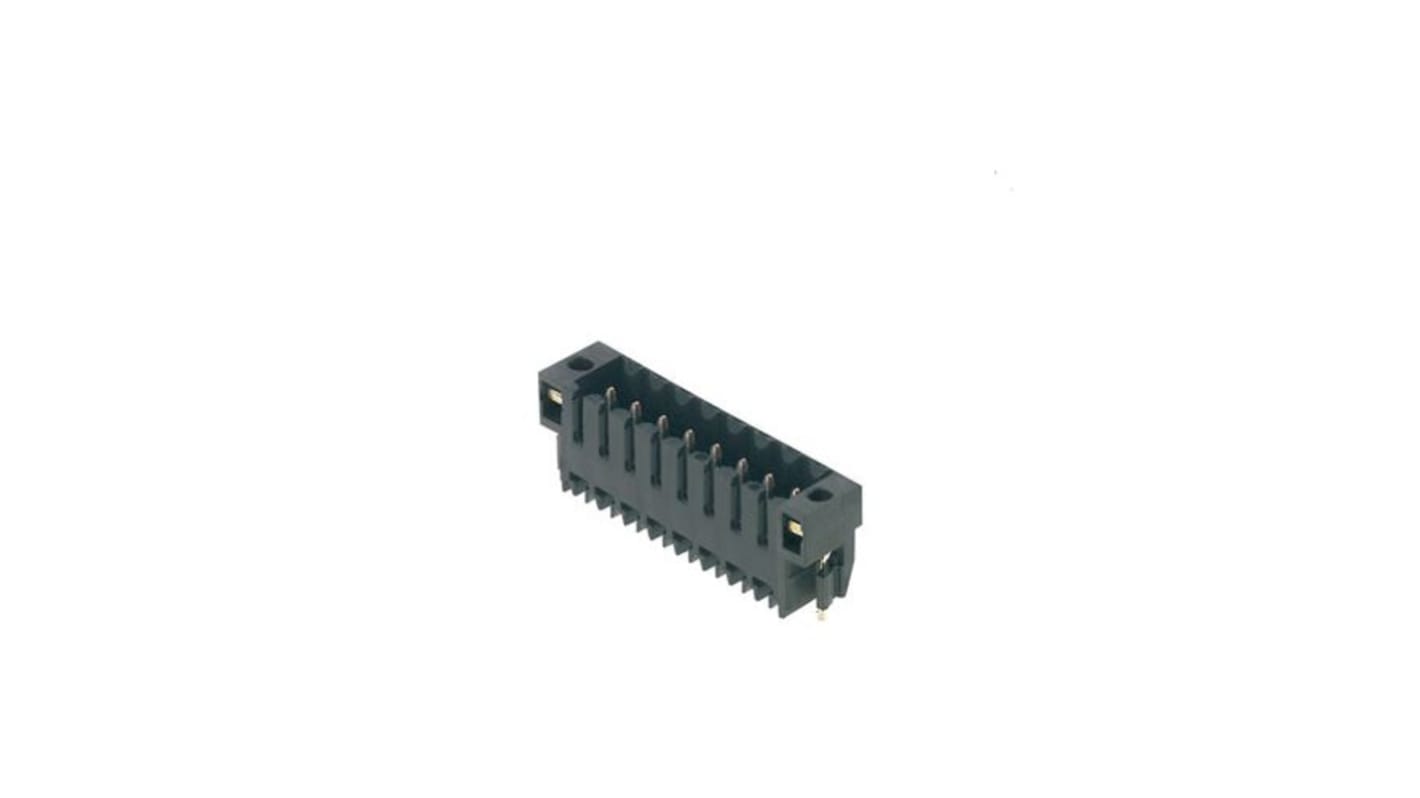

Weidmüller, OMNIMATE Signal Male PCB Header, 3.5 mm Pitch, 10 Way, 1 Row 90°
- RS Stock No.:
- 255-8257
- Mfr. Part No.:
- 1842620000
- Brand:
- Weidmüller
Subtotal (1 box of 42 units)*
£128.78
(exc. VAT)
£154.54
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £128.78 | £3.066 |
*price indicative
- RS Stock No.:
- 255-8257
- Mfr. Part No.:
- 1842620000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | PCB Header | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Pitch | 3.5mm | |
| Connector Gender | Male | |
| For Use With | SMT process | |
| Orientation | 90° | |
| Standards/Approvals | RoHS, UL, IEC 61984, IEC 60664-1, CSA | |
| Width | 42mm | |
| Length | 3.2mm | |
| Series | OMNIMATE Signal | |
| Housing Material | Fibreglass Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type PCB Header | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Pitch 3.5mm | ||
Connector Gender Male | ||
For Use With SMT process | ||
Orientation 90° | ||
Standards/Approvals RoHS, UL, IEC 61984, IEC 60664-1, CSA | ||
Width 42mm | ||
Length 3.2mm | ||
Series OMNIMATE Signal | ||
Housing Material Fibreglass Liquid Crystal Polymer | ||
- COO (Country of Origin):
- DE
The Weidmuller PCB plug-in connector high-temperature-resistant male header, 3.50 mm pitch.
Plugging direction parallel 90 degree, straight 180 degree or angled 135 degree to PCB
Pin length 3.2 mm universal for all soldering methods
Pin length 1.5 mm optimised for reflow soldering methods
