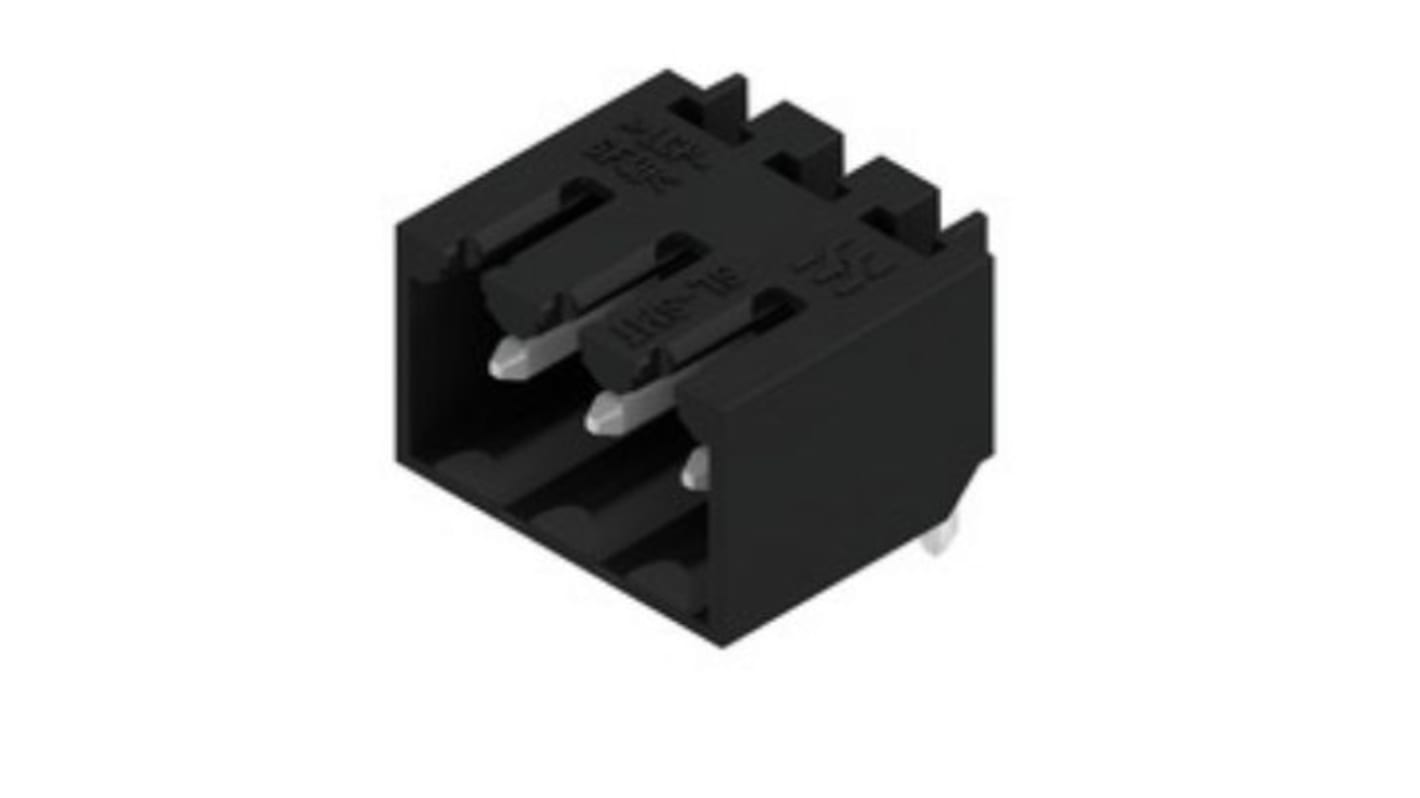

Weidmüller, OMNIMATE Signal Male PCB Header, 3.5 mm Pitch, 3 Way, 1 Row 90°
- RS Stock No.:
- 255-8247
- Mfr. Part No.:
- 1841640000
- Brand:
- Weidmüller
Subtotal (1 box of 100 units)*
£71.64
(exc. VAT)
£85.97
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £71.64 | £0.716 |
*price indicative
- RS Stock No.:
- 255-8247
- Mfr. Part No.:
- 1841640000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 3 | |
| Product Type | PCB Header | |
| Number of Rows | 1 | |
| Pitch | 3.5mm | |
| Connector Gender | Male | |
| For Use With | SMT process | |
| Orientation | 90° | |
| Width | 11.9mm | |
| Housing Material | Fibreglass Liquid Crystal Polymer | |
| Length | 3.2mm | |
| Standards/Approvals | IEC 61984, IEC 60664-1, DIN VDE 57 106, DIN VDE 0470 | |
| Series | OMNIMATE Signal | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 3 | ||
Product Type PCB Header | ||
Number of Rows 1 | ||
Pitch 3.5mm | ||
Connector Gender Male | ||
For Use With SMT process | ||
Orientation 90° | ||
Width 11.9mm | ||
Housing Material Fibreglass Liquid Crystal Polymer | ||
Length 3.2mm | ||
Standards/Approvals IEC 61984, IEC 60664-1, DIN VDE 57 106, DIN VDE 0470 | ||
Series OMNIMATE Signal | ||
- COO (Country of Origin):
- DE
The Weidmuller PCB plug-in connector high-temperature-resistant male header, 3.50 mm pitch.
Plugging direction parallel 90 degree, straight 180 degree or angled 135 degree to PCB
Pin length 3.2 mm universal for all soldering methods
Pin length 1.5 mm optimised for reflow soldering methods
