TE Connectivity, Commercial MATE-N-LOK Male Connector Housing, 5.08 mm Pitch, 4 Way, 1 Row Straight
- RS Stock No.:
- 189-5996
- Mfr. Part No.:
- 770827-1
- Brand:
- TE Connectivity

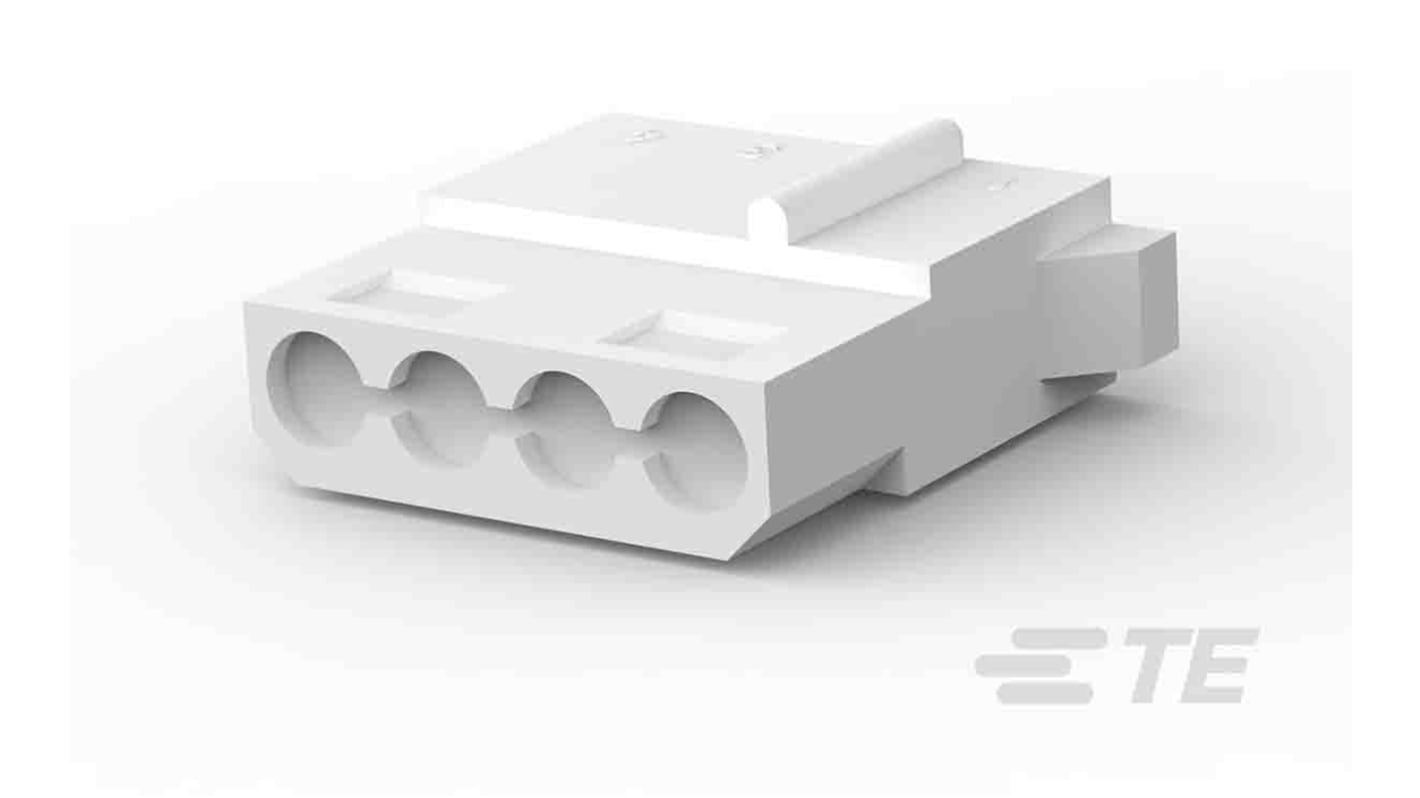

Image representative of range
Subtotal (1 bag of 5000 units)*
£1,690.00
(exc. VAT)
£2,030.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5000 + | £0.338 | £1,690.00 |
*price indicative
- RS Stock No.:
- 189-5996
- Mfr. Part No.:
- 770827-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 4 | |
| Product Type | Connector Housing | |
| Number of Rows | 1 | |
| Pitch | 5.08mm | |
| Connector Gender | Male | |
| Mount Type | Panel | |
| For Use With | Centerline Soft Shell Pin & Socket Connector | |
| Orientation | Straight | |
| Length | 25.96mm | |
| Width | 20.88mm | |
| Series | Commercial MATE-N-LOK | |
| Housing Material | Nylon | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 4 | ||
Product Type Connector Housing | ||
Number of Rows 1 | ||
Pitch 5.08mm | ||
Connector Gender Male | ||
Mount Type Panel | ||
For Use With Centerline Soft Shell Pin & Socket Connector | ||
Orientation Straight | ||
Length 25.96mm | ||
Width 20.88mm | ||
Series Commercial MATE-N-LOK | ||
Housing Material Nylon | ||
Standards/Approvals No | ||
RoHS Status: Exempt
TE Connectivity Commercial MATE-N-LOK Free Hanging Socket (Plug) Housings
Commercial MATE-N-LOK free hanging socket (plug) housings with a 5.08mm centreline that accept crimp socket contacts (see stock number 710-0554 typically). These Commercial MATE-N-LOK free hanging socket (plug) housings are made from UL 94V-2 nylon GF, are fully polarized with built in contact stabilization and have self aligning features and locking devices to ensure the connector halves hold together under conditions of severe shock and vibration.
For mating connectors see Commercial MATE-N-LOK PCB vertical (stock number 520-264 typically) and right angle mounting (stock number 520-346 typically) pin headers and Commercial MATE-N-LOK PCB vertical socket headers (stock number 520-258 typically)
A keying plug is also available - see stock number 712-2261
TE Connectivity Commercial MATE-N-LOK Range
