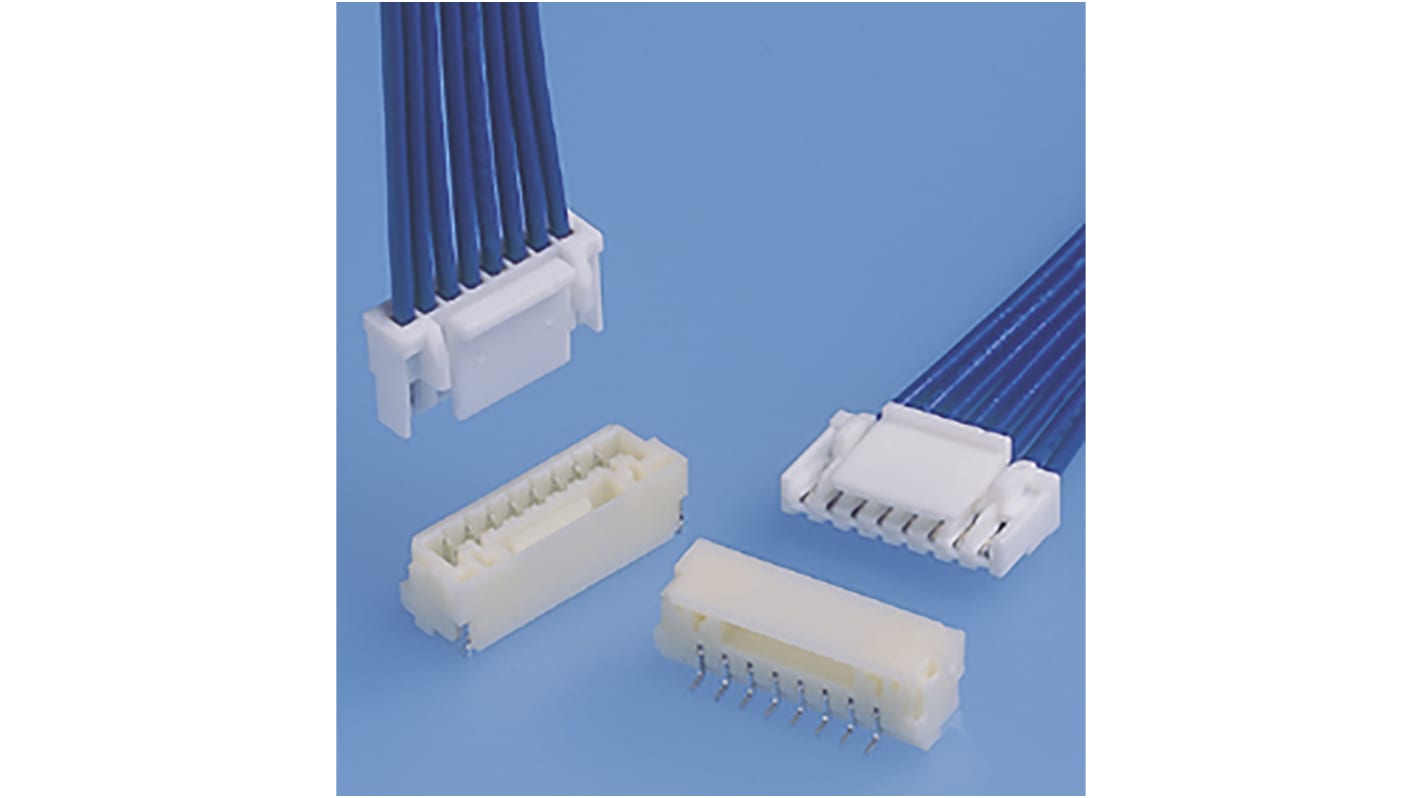

JST, GH Male Connector Housing, 1.25mm Pitch, 13 Way, 1 Row
- RS Stock No.:
- 175-5606
- Mfr. Part No.:
- GHR-13V-S
- Brand:
- JST
50 In stock - FREE next working day delivery available
440 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 10)
£0.148
(exc. VAT)
£0.178
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.148 | £1.48 |
| 50 - 90 | £0.137 | £1.37 |
| 100 - 240 | £0.126 | £1.26 |
| 250 - 490 | £0.119 | £1.19 |
| 500 + | £0.112 | £1.12 |
*price indicative
- RS Stock No.:
- 175-5606
- Mfr. Part No.:
- GHR-13V-S
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Developed for to PDP, LCD or small electronics equipments. This low insertion force type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.
secure locking structure
Contact lock structure
Prevention of contact deformation
Clear engagement click sounds
Contact lock structure
Prevention of contact deformation
Clear engagement click sounds
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Gender | Male |
| Mounting Type | PCB Mount |
| Series | GH |
| For Use With | GH Connectors |
| Body Orientation | Straight |
| Length | 17.5mm |
| Width | 4.15mm |
| Housing Material | PBT |
