JST, GH Female Connector Housing, 1.25mm Pitch, 9 Way, 1 Row
- RS Stock No.:
- 175-5582
- Mfr. Part No.:
- GHR-09V-S
- Brand:
- JST
350 In stock - FREE next working day delivery available
650 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 10)
£0.131
(exc. VAT)
£0.157
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.131 | £1.31 |
| 50 - 90 | £0.122 | £1.22 |
| 100 - 240 | £0.113 | £1.13 |
| 250 - 490 | £0.106 | £1.06 |
| 500 + | £0.10 | £1.00 |
| *price indicative | ||
- RS Stock No.:
- 175-5582
- Mfr. Part No.:
- GHR-09V-S
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

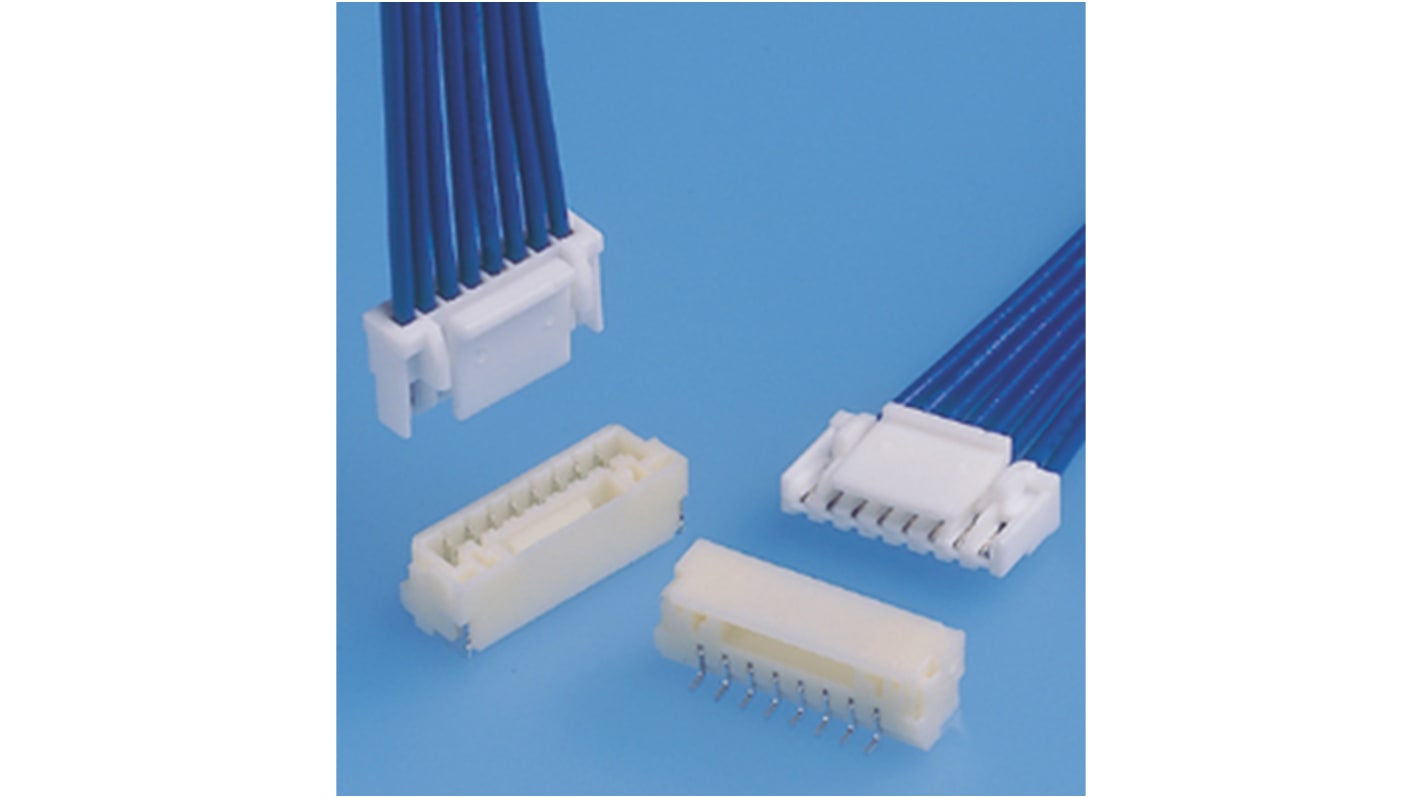

The JST GH-09V-S is a GH series, 9 way, single row, 1. 25mm pitch, top entry type shrouded header crimp style connector (Wire-to-Board type connector) with secure locking device. It is a low insertion force type connector that realizes easier mating operation.
Secure locking structure
Contact lock structure
Prevention of contact deformation
Clear engagement click sounds
Contact lock structure
Prevention of contact deformation
Clear engagement click sounds
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | GH |
| For Use With | GH Connectors |
| Body Orientation | Straight |
| Length | 12.5mm |
| Width | 4.15mm |
| Housing Material | PBT |
