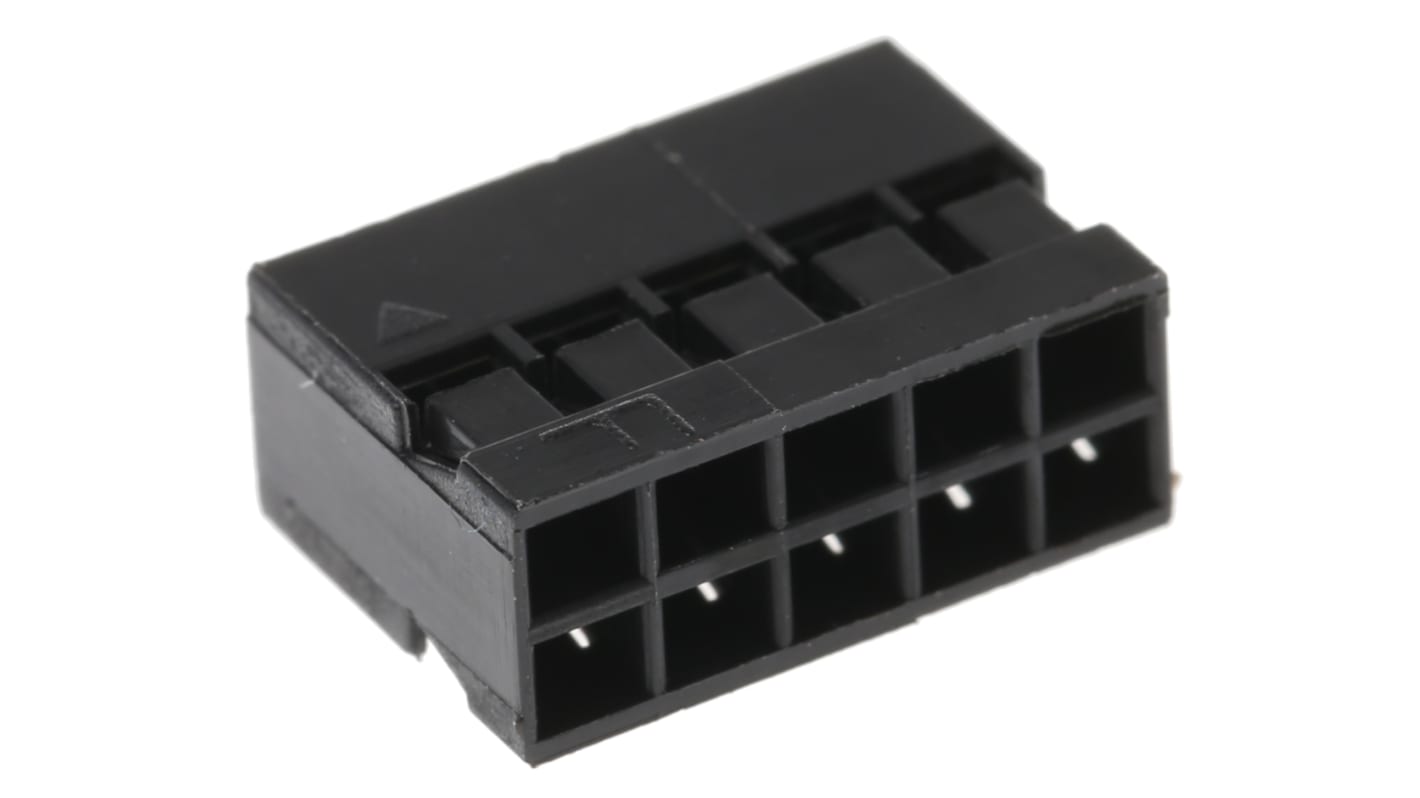

HARWIN, M22-30 Female Connector Housing, 2 mm Pitch, 10 Way, 2 Row Straight
- RS Stock No.:
- 173-0931
- Mfr. Part No.:
- M22-3020500
- Brand:
- HARWIN
Subtotal (1 bag of 1000 units)*
£343.00
(exc. VAT)
£412.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 + | £0.343 | £343.00 |
*price indicative
- RS Stock No.:
- 173-0931
- Mfr. Part No.:
- M22-3020500
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Number of Contacts | 10 | |
| Product Type | Connector Housing | |
| Number of Rows | 2 | |
| Pitch | 2mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| For Use With | M22 Series Connector | |
| Orientation | Straight | |
| Width | 4.1mm | |
| Standards/Approvals | No | |
| Length | 10.4mm | |
| Housing Material | Nylon | |
| Series | M22-30 | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Number of Contacts 10 | ||
Product Type Connector Housing | ||
Number of Rows 2 | ||
Pitch 2mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
For Use With M22 Series Connector | ||
Orientation Straight | ||
Width 4.1mm | ||
Standards/Approvals No | ||
Length 10.4mm | ||
Housing Material Nylon | ||
Series M22-30 | ||
- COO (Country of Origin):
- TW
Socket Housings
Single and double row crimp socket shells which mate with 2mm pitch headers.
M22-301 Series SIL housings mate with M22-201/203 Series headers typical stock nos. 681-3287 respectively
Shells accept crimp terminals stock nos. 547-3245 (tin plate) or 547-3289 (gold plate)
