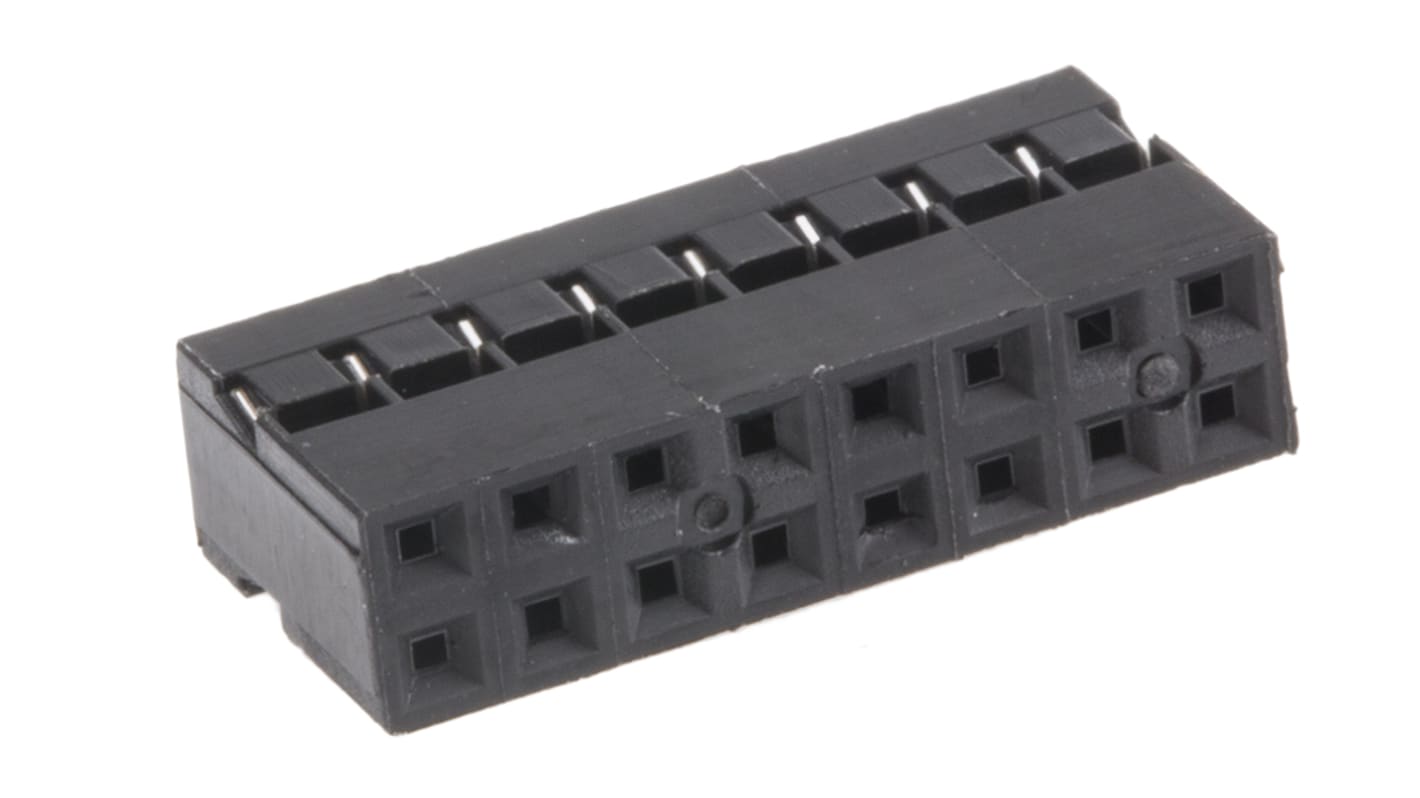

HARWIN, M22-30 Female Connector Housing, 2 mm Pitch, 16 Way, 2 Row Straight
- RS Stock No.:
- 842-848
- Mfr. Part No.:
- M22-3020800
- Brand:
- HARWIN
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£4.49
(exc. VAT)
£5.39
(inc. VAT)
- RS Stock No.:
- 842-848
- Mfr. Part No.:
- M22-3020800
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Number of Contacts | 16 | |
| Product Type | Connector Housing | |
| Number of Rows | 2 | |
| Pitch | 2mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| For Use With | M22 Series Connector | |
| Orientation | Straight | |
| Width | 4.1mm | |
| Length | 15.4mm | |
| Series | M22-30 | |
| Standards/Approvals | No | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Number of Contacts 16 | ||
Product Type Connector Housing | ||
Number of Rows 2 | ||
Pitch 2mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
For Use With M22 Series Connector | ||
Orientation Straight | ||
Width 4.1mm | ||
Length 15.4mm | ||
Series M22-30 | ||
Standards/Approvals No | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- TW
Socket Housings
Single and double row crimp socket shells which mate with 2mm pitch headers.
M22-301 Series SIL housings mate with M22-201/203 Series headers typical stock nos. 681-3287 respectively
Shells accept crimp terminals stock nos. 547-3245 (tin plate) or 547-3289 (gold plate)
