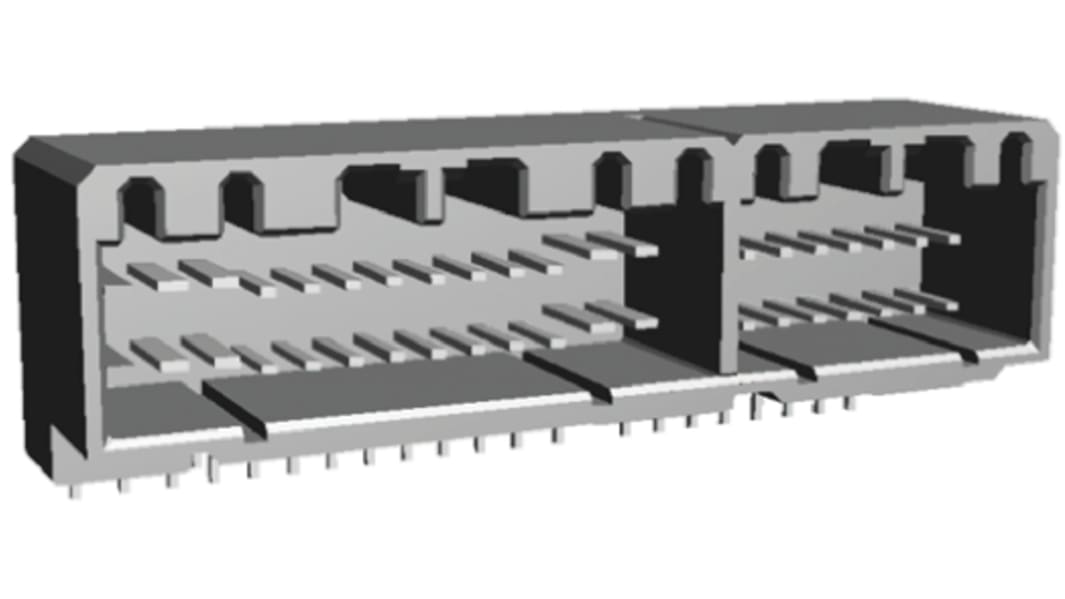

TE Connectivity, MULTILOCK 040/070 Female Connector Housing, 42 Way, 2 Row Right Angle

View all Wire Housings & Plugs

Subtotal (1 tube of 6 units)*

£33.258

(exc. VAT)

£39.912

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 414 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
6 +£5.543£33.26

*price indicative

RS Stock No.:
164-2859
Mfr. Part No.:
175446-6
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

42

Number of Rows

2

Gender

Female

Mounting Type

Through Hole

Series

MULTILOCK 040/070

For Use With

Wire-to-Board Connector

Body Orientation

Right Angle

Length

72.1mm

Width

21.9mm

Housing Material

PBT

COO (Country of Origin):
JP

TE Connectivity MULTILOCK 040/070 Wire to Board Hybrid I/O Header Connectors


A range of MULTILOCK 040/070 wire to board hybrid I/O receptacle style header connectors or cap assemblies with pre-tinned male contacts. These MULTILOCK 040/070 PCB right angle mount I/O socket style header connectors have contact configurations for signal (data) and power applications, please refer to datasheet for details. Stock number 720-0982 is a High Density 040II/070II hybrid receptacle header connector.
These MULTILOCK 040/070 wire to board headers or cap assemblies mate with the cable mount MULTILOCK 040/070 plug assemblies, see stock number 712-2485 typically.


TE Connectivity MULTILOCK Connectors and Contacts


This is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications.


Snap in, crimp contacts for cable receptacles
Board mounting options are pre-loaded with male contacts
For wire to board connections utilise a cable and a board receptacle
Cable cap accepts female contacts, cable plug accepts male contacts
Cable cap mates cable plug to allow wire to wire connections
High density wiring connectors with 2.5mm contact centres
