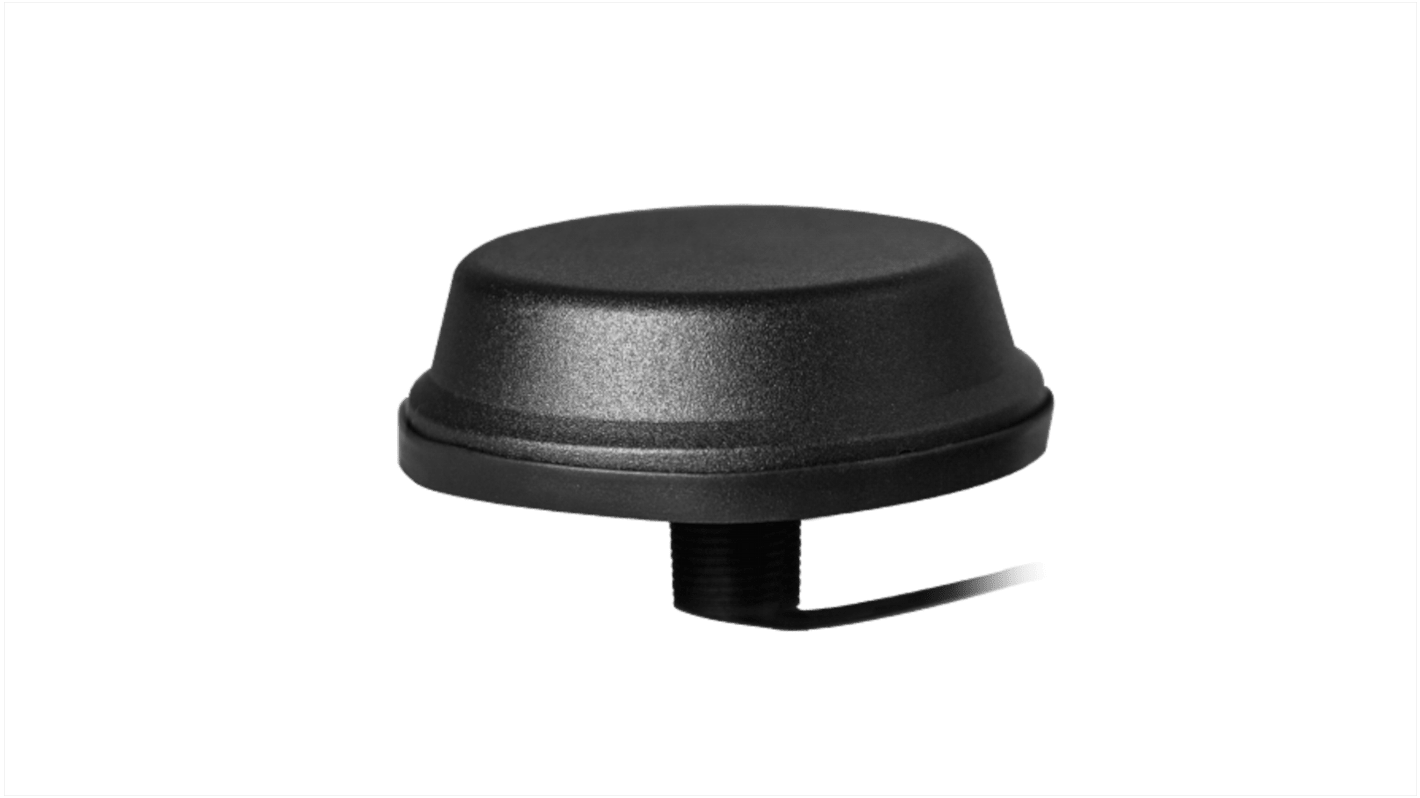

Siretta TANGO23/0.5M/SMAM/S/RP/19 Puck WiFi Antenna with SMA RP Connector, Wi-Fi, Wi-Fi (Dual Band), Omni-directional,

RS Stock No.:: 124-8717
Mfr. Part No.:: TANGO23/0.5M/SMAM/S/RP/19
Brand:: Siretta

Siretta TANGO23/0.5M/SMAM/S/RP/19 Puck WiFi Antenna with SMA RP Connector, Wi-Fi, Wi-Fi (Dual Band), Omni-directional,

Subtotal (1 unit)**

£23.38

(exc. VAT)

£28.06

(inc. VAT)

174 In stock - FREE next working day delivery available*

6 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£23.38

**price indicative

Compare

RS Stock No.:: 124-8717
Mfr. Part No.:: TANGO23/0.5M/SMAM/S/RP/19
Brand:: Siretta

TANGO 23 – IP67 Dual Band WiFi/WLAN/Blurtooth/ZigBee Antenna, Siretta

The Tango 23 is a dual band 2.4 GHz / 5 GHz - WiFi / WLAN / Bluetooth / ZigBee Antenna. It is compact, puck shaped and has a diameter of 80 mm and height of 23 mm. With an IP67 rating and weather sealing, this antenna suited to internal or external mounting.

Supplied with a 0.5 meter low loss, CLF100 cable with a reverse polarity SMA male connector.

Operating Temperature: -40 to +85˚C
Impedance: 50 Ω
Gain: 3 dBi @ 2.5 GHz / 5 dBi @ 5 GHz
VSWR: <1.7
Polarisation: Vertical
Radiation: Omnidirectional

Operating Frequencies
WiFi / WLAN / Bluetooth / ZigBee: 2.4 GHz to 2.5 GHz
Dual Band WiFi / WLAN: 5.1 GHz to 5.9 GHz

Dimensions
Length: 80 mm (diameter) x 23 mm (height, excluding screw thread)
Mounting screw: 22 mm long, 17 mm wide with rubber gasket

Siretta Tango 23 - Bluetooth, Cellular (4G,5G) & Dual Band Wi-Fi Puck Antenna SMA Male RP Connector 0.5m Cable

The Tango 23 is a compact, puck antenna, tuned to dual band 2.4 /5.8 GHz – Wi-Fi, Bluetooth and Zigbee frequencies.

With dual band compatibility it can be used with most modern day Wi-Fi single and dual band modems such as NetGear and TP-link thereby benefiting from the less congested upper band.

In addition to the Wi-Fi bands some LTE bands for 4G, 5G, Cat M and NB IoT are also supported. Refer to the band coverage tables for performance details.

The Tango 23 is supplied as standard with low loss CLF100 cable and terminated with a reverse polarity SMA male connector.

Alternative cable lengths and connector types can be specified for small volume orders.

Key Features

Supports Dual band Wi-Fi 2.4GHz and 5GHz spectrum
Supports Bluetooth, Zigbee, WLAN2400, WLAN5800, ISM 2.4 GHz, ISM 5.8 GHz
Supports some 5G NR / 4G LTE bands
Supports some LTE Cat M, LTE Cat NB, NR Cat NB bands

Additional Considerations

IP67 rated: Made with a rubber seal gasket to resist water ingress
Supplied with a low loss cable for enhanced performance
Omni-directional radiation

Electrical Specifications

Impedance: 50 Ohm
Polarization: Vertical
Max Input Power: 50 W
Ground plane independent: Yes

Environmental Specifications

Operating Temperature range: -40 to +85 °C

Storage Temperature range: -40 to +85 °C

Mechanical Specifications

Dimensions: 23 mm height x 80 mm diameter
Weight: 80 g
Connector: RP-SMA Male
Cable: RG174
Mounting method: M17 Screw Mount
Mounting Screw Length: 22 mm
Max Panel Thickness: 10 mm
Radome materials: Nylon PA6

2.4GHz Antennas

Attribute	Value
RF Protocols	Wi-Fi, Wi-Fi (Dual Band), Omni-directional, NB-IoT, NB IoT, ISM, ISM Band, Cat M, Bluetooth (BLE), IEEE 802.15.4, Wi-Fi 6, Zigbee
Internal/External	External, Internal
Antenna Physical Form	Puck
Frequency Range	2.4 GHz, 5.8 GHz
Mounting Type	Through Hole
Antenna Mounting Type	Panel Mount, Screw, Through Hole, Through Hole/Bolted
Connector Type	SMA RP
Gain	5 → 7dBi
Antenna Directivity	Omnidirectional
Cable Length	500mm
Connector Gender	Male
Antenna Internal Construction	Low Profile
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Series	Tango 23
