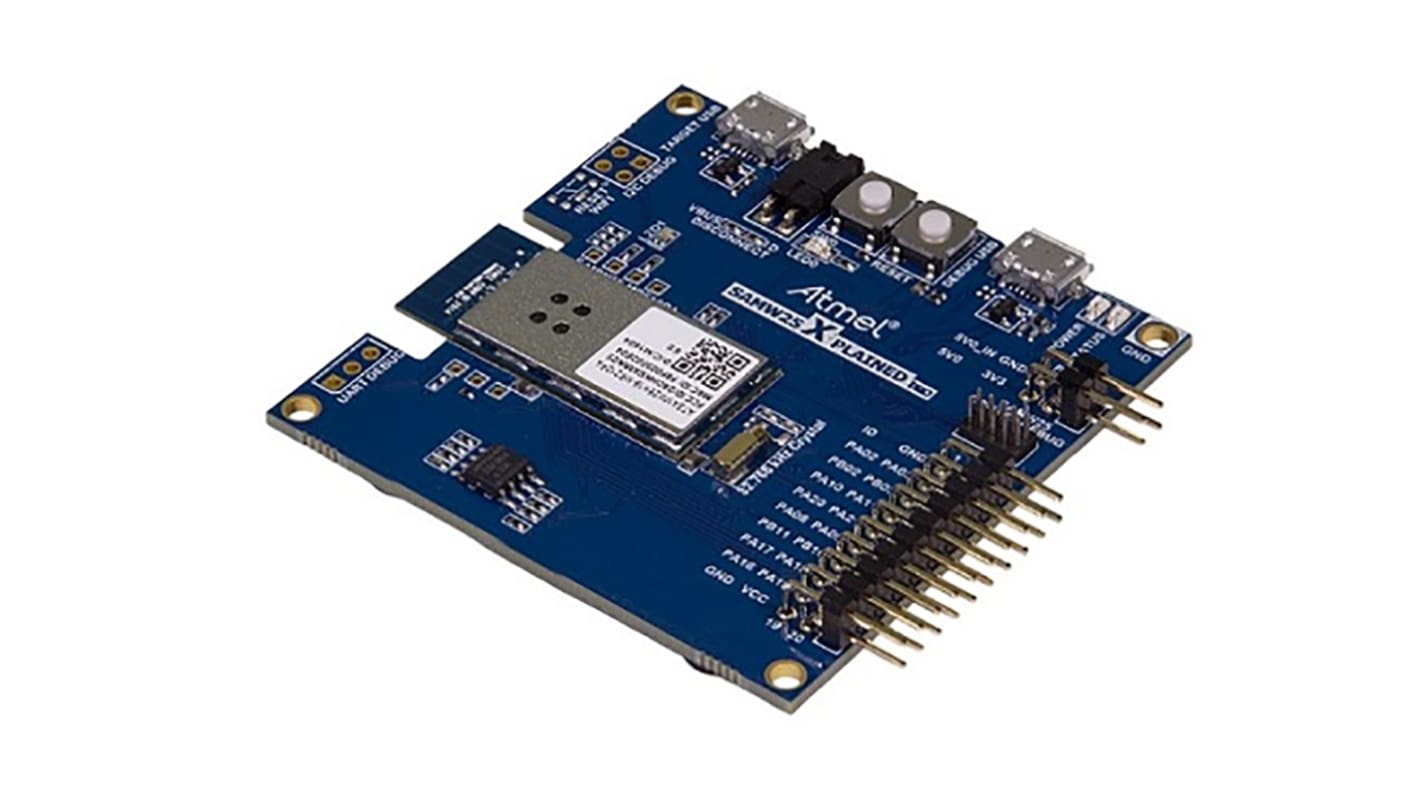

Atmel ATSAMW25-XPRO 2.7 → 3.6V WiFi Module Evaluation Kit, 802.11b/g/n I2C, IrDA, LIN2, SPI, USART
- RS Stock No.:
- 885-2017
- Mfr. Part No.:
- ATSAMW25-XPRO
- Brand:
- Atmel
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 885-2017
- Mfr. Part No.:
- ATSAMW25-XPRO
- Brand:
- Atmel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Atmel | |
Supported Protocol | 802.11b/g/n | |
Supported Security Standards | SSL, TLS, WAPI, WEP, WPA, WPA2 | |
Supported Bus Interfaces | I2C, IrDA, LIN2, SPI, USART | |
Supply Voltage | 2.7 → 3.6V | |
Maximum Operating Temperature | +85 °C | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Atmel | ||
Supported Protocol 802.11b/g/n | ||
Supported Security Standards SSL, TLS, WAPI, WEP, WPA, WPA2 | ||
Supported Bus Interfaces I2C, IrDA, LIN2, SPI, USART | ||
Supply Voltage 2.7 → 3.6V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- MY
SmartConnect ATSAMW25-XPRO Evaluation Kit
The ATSAMW25 Xplained Pro Evaluation Kit forms part of the SmartConnect family of wireless solutions from Atmel. With the kit you can evaluate the ATSAM25H18-MR510PB WiFi module with support from Atmel Studio software.
Features & Benefits of the ATSAMW25-XPRO Evaluation Kit
WiFi Module based on a combination of the 2/4 GHz IEEE® 802.11 b/g/n WiFi SoC and the ARM® Cortex® - M0+ ATSAMD21G18A microcontroller.
On-board embedded debugger
2 mechanical buttons
1 yellow user LED
1 WiFi status LED
1 extension header
Embedded debugger USB
Target USB
8 Mbit serial flash
32 kHz crystal
12 MHz crystal
Features & Benefits of the ATSAMW25-XPRO Evaluation Kit
WiFi Module based on a combination of the 2/4 GHz IEEE® 802.11 b/g/n WiFi SoC and the ARM® Cortex® - M0+ ATSAMD21G18A microcontroller.
On-board embedded debugger
2 mechanical buttons
1 yellow user LED
1 WiFi status LED
1 extension header
Embedded debugger USB
Target USB
8 Mbit serial flash
32 kHz crystal
12 MHz crystal
SmartConnect Wi-Fi low power solutions allow engineers without any 802.11, RTOS, IP stack or RF experience, to easily integrate Wi-Fi into their IoT designs. The SmartConnect turnkey software that is available in Atmel Studio enables engineers to dedicate more time to adding functionality to their designs.
