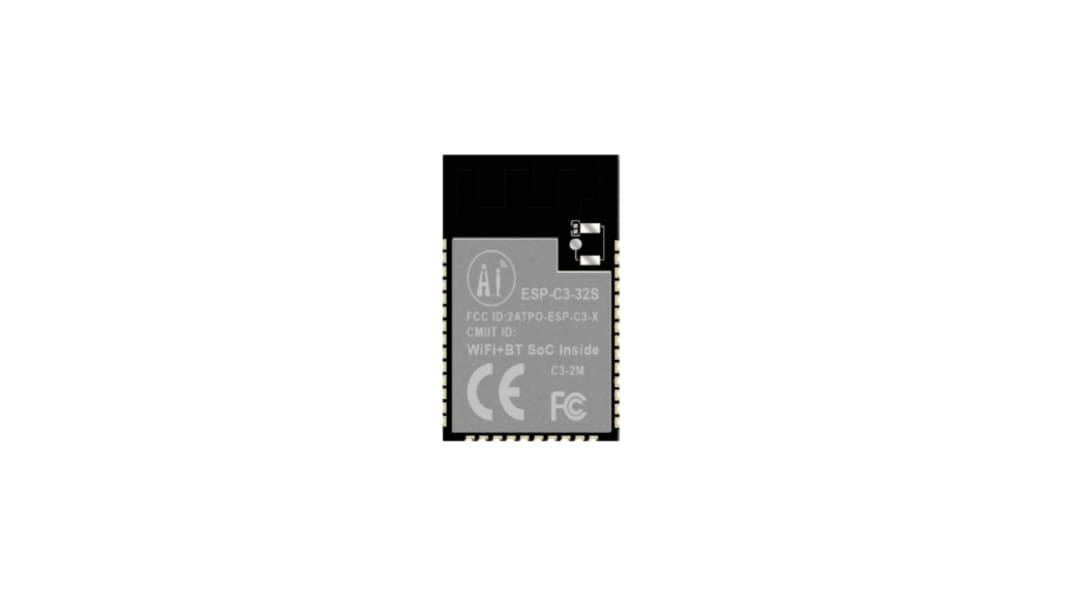

RF Solutions ESP32-C3-32S 3.0 → 3.6V dc WiFi Module, Bluetooth Low Energy (BLE), WiFi ADC, GPIO, I2C, SPI, UART
- RS Stock No.:
- 238-6922
- Mfr. Part No.:
- ESP32-C3-32S
- Brand:
- RF Solutions
10 In stock - FREE next working day delivery available
16 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 2)
£5.235
(exc. VAT)
£6.282
(inc. VAT)
Units | Per unit | Per Pack* |
2 - 8 | £5.235 | £10.47 |
10 - 98 | £4.745 | £9.49 |
100 - 498 | £4.485 | £8.97 |
500 + | £4.415 | £8.83 |
*price indicative |
- RS Stock No.:
- 238-6922
- Mfr. Part No.:
- ESP32-C3-32S
- Brand:
- RF Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The RF Solutions has This module core processor ESP32-C3 is a Wi-Fi+ BLE combination of system-level chips (SoC), designed for various applications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc. ESP32-C3 with industry-leading low power and RF performance, supporting Wi-Fi IEEE802.11b/g/n agreements and BLE 5.0.ESP32-C3 chip is equipped with a RISC-V 32-bit single-core processor, operating frequency up to 160 MHz. The chip is support to have secondary development without using other microcontrollers or processors.
Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
Support BLE5.0 and rate support:125Kbps, 500Kbps, 1Mbps, 2Mbps
32-bit RISC-V single-core processor, supports a clock frequency of up to 160 MHz, with 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
SMD-38 package
Integrated Wi-Fi MAC/ BB/RF/PA/LNA/BLE
Support multiple sleep modes, deep sleep electric current is less than 5uA
UART rate up to 5Mbps
Support STA/AP/STA+AP mode and mix mode
Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click network configuration
Support UART port local upgrade and remote firmware upgrade (FOTA)
General AT commands can be better understand
Support secondary development, integrated Linux development environment
ESP-C3-32S module acquiesce in using the built-in 4MByte Flash, meanwhile support external Flash version
Support BLE5.0 and rate support:125Kbps, 500Kbps, 1Mbps, 2Mbps
32-bit RISC-V single-core processor, supports a clock frequency of up to 160 MHz, with 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
SMD-38 package
Integrated Wi-Fi MAC/ BB/RF/PA/LNA/BLE
Support multiple sleep modes, deep sleep electric current is less than 5uA
UART rate up to 5Mbps
Support STA/AP/STA+AP mode and mix mode
Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click network configuration
Support UART port local upgrade and remote firmware upgrade (FOTA)
General AT commands can be better understand
Support secondary development, integrated Linux development environment
ESP-C3-32S module acquiesce in using the built-in 4MByte Flash, meanwhile support external Flash version
Specifications
Attribute | Value |
---|---|
Supported Protocol | Bluetooth Low Energy (BLE), WiFi |
Supported Security Standards | AES, WEP |
Supported Bus Interfaces | ADC, GPIO, I2C, SPI, UART |
Supply Voltage | 3.0 → 3.6V dc |
Dimensions | 25.5 x 18 x 3.1mm |
