Wilo UK LTD 230 V 10 bar Direct Coupling Centrifugal Centrifugal Pump with Controller, 196L/min
- RS Stock No.:
- 248-4919
- Mfr. Part No.:
- 2120641
- Brand:
- Wilo UK LTD
Subtotal (1 unit)*
£1,036.97
(exc. VAT)
£1,244.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,036.97 |
*price indicative
- RS Stock No.:
- 248-4919
- Mfr. Part No.:
- 2120641
- Brand:
- Wilo UK LTD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wilo UK LTD | |
Maximum Flow Rate | 196L/min | |
Supply Voltage | 230 V | |
Input Connection | 1-1/2 in G | |
Maximum Head | 12m | |
Maximum Working Pressure | 10 bar | |
Body Material | Cast Iron | |
Coupling Type | Direct | |
Input Power | 200W | |
Maximum Fluid Temperature | 110°C | |
Input Connection Size | 1-1/2in | |
Output Connection Size | 1-1/2in | |
IP Rating | IPX4D | |
Pump Type | Centrifugal | |
Select all | ||
---|---|---|
Brand Wilo UK LTD | ||
Maximum Flow Rate 196L/min | ||
Supply Voltage 230 V | ||
Input Connection 1-1/2 in G | ||
Maximum Head 12m | ||
Maximum Working Pressure 10 bar | ||
Body Material Cast Iron | ||
Coupling Type Direct | ||
Input Power 200W | ||
Maximum Fluid Temperature 110°C | ||
Input Connection Size 1-1/2in | ||
Output Connection Size 1-1/2in | ||
IP Rating IPX4D | ||
Pump Type Centrifugal | ||
- COO (Country of Origin):
- DE

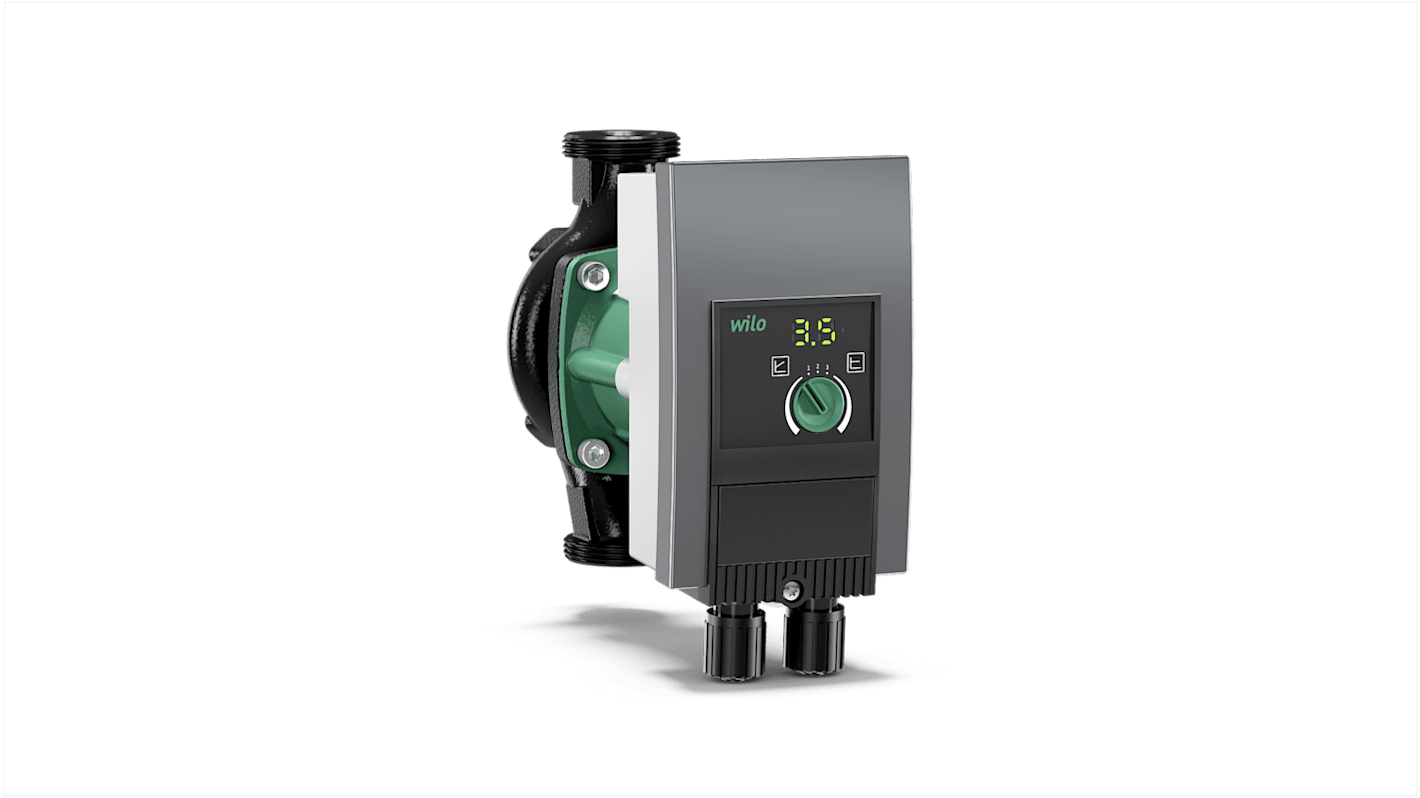

This Wilo product is a High efficiency pump Wilo-Yonos MAXO electronically controlled, Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all heating, ventilation and air-conditioning applications.
LED for setting the setpoint and displaying error messages
Electrical connection with the Wilo plug
Fault lamp and contact for collective fault signal
3 speed stages
Electrical connection with the Wilo plug
Fault lamp and contact for collective fault signal
3 speed stages
