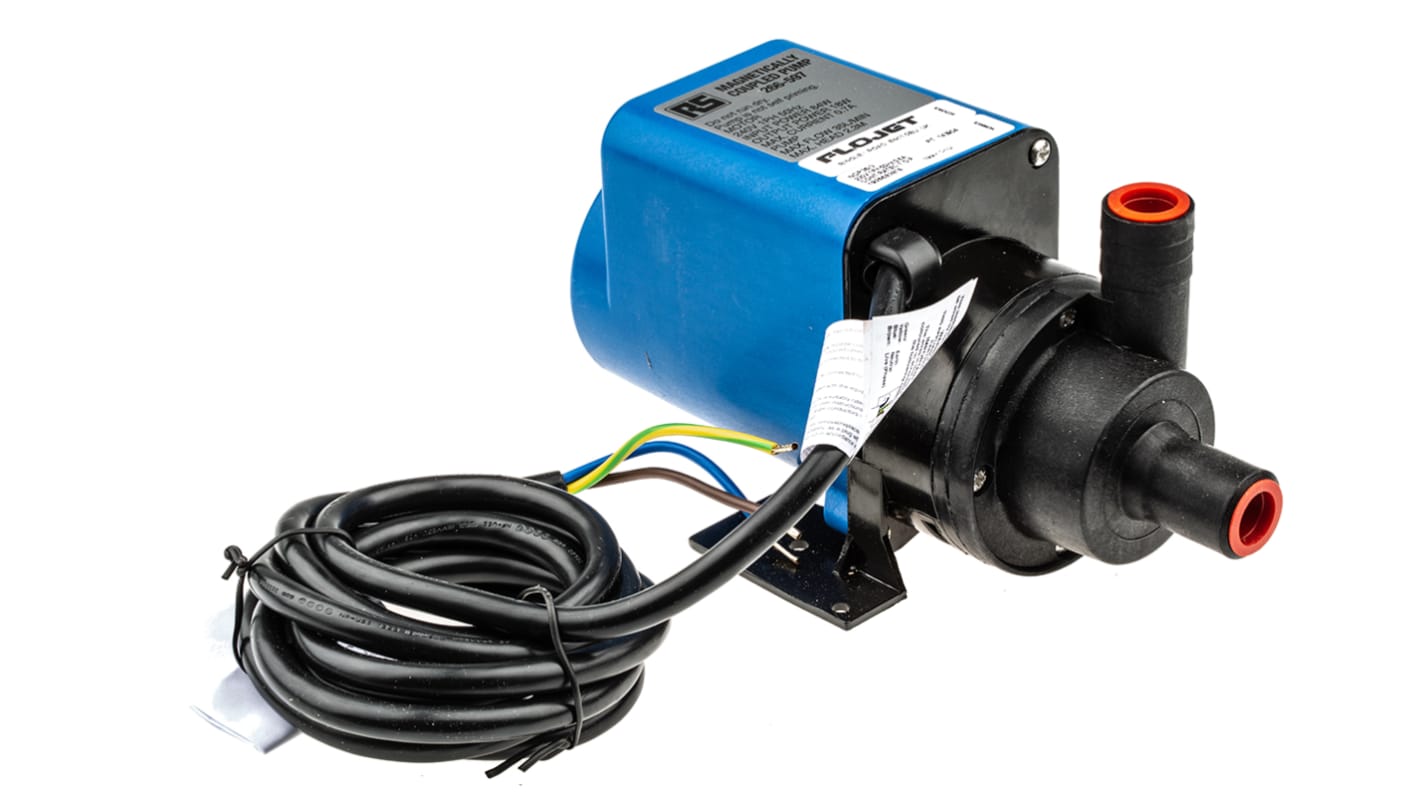

Xylem Flojet 230 V 1.4 bar Magnetic Coupling Centrifugal Water Pump, 35L/min
- RS Stock No.:
- 266-597
- Mfr. Part No.:
- 143904
- Brand:
- Xylem Flojet
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 266-597
- Mfr. Part No.:
- 143904
- Brand:
- Xylem Flojet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Xylem Flojet | |
Maximum Flow Rate | 35L/min | |
Supply Voltage | 230 V | |
Input Connection | 22 mm Hose | |
Maximum Head | 2.3m | |
Maximum Working Pressure | 1.4 bar | |
Body Material | PP | |
Coupling Type | Magnetic | |
Input Power | 84W | |
Maximum Fluid Temperature | +85°C | |
Input Connection Size | 22mm | |
Output Connection Size | 22mm | |
Wetted Materials | Alumina (Spindle), PP (Encapsulated Magnet), PP (Housing), Standard EPDM (O-Ring) | |
IP Rating | IP22 | |
Pump Type | Centrifugal | |
Select all | ||
---|---|---|
Brand Xylem Flojet | ||
Maximum Flow Rate 35L/min | ||
Supply Voltage 230 V | ||
Input Connection 22 mm Hose | ||
Maximum Head 2.3m | ||
Maximum Working Pressure 1.4 bar | ||
Body Material PP | ||
Coupling Type Magnetic | ||
Input Power 84W | ||
Maximum Fluid Temperature +85°C | ||
Input Connection Size 22mm | ||
Output Connection Size 22mm | ||
Wetted Materials Alumina (Spindle), PP (Encapsulated Magnet), PP (Housing), Standard EPDM (O-Ring) | ||
IP Rating IP22 | ||
Pump Type Centrifugal | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Xylem Flojet Water Pump
The Xylem Flojet magnetic coupling water pump is a highly efficient pump used for continuous duty. It is ideal for water or chemical transfer and re-circulation applications. It has a maximum flow rate of 35L per minute. It is known for trouble-free pumping of acids and alkalis, mainly found in the photographic and printing industries and also hygiene or sterilisation processes.
Note:
Not self-priming
Note:
Not self-priming
requires a flooded suction of approximately 300mm
Features and Benefits
The supply voltage is 230V
Maximum working pressure is 1.4bar
Maximum fluid temperature is 85°C
Input power is 84W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from the motor to the fluid
Hose port connection
Zero maintenance
Pump chamber and impeller is made of polypropylene with alumina-ceramic shaft/thrust washers
Fluoro-elastomer rubber static O-ring seal, and graph ion impeller bearings
The mounting plate offers several fixing options
Maximum working pressure is 1.4bar
Maximum fluid temperature is 85°C
Input power is 84W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from the motor to the fluid
Hose port connection
Zero maintenance
Pump chamber and impeller is made of polypropylene with alumina-ceramic shaft/thrust washers
Fluoro-elastomer rubber static O-ring seal, and graph ion impeller bearings
The mounting plate offers several fixing options
Applications
Pure or precious liquids, chilled water
X-ray machine
Industrial processing equipment
X-ray machine
Industrial processing equipment
Certifications
IPX5 rated
ANSI/ESD-S20.20:2007
ANSI/ESD-S20.20:2007
