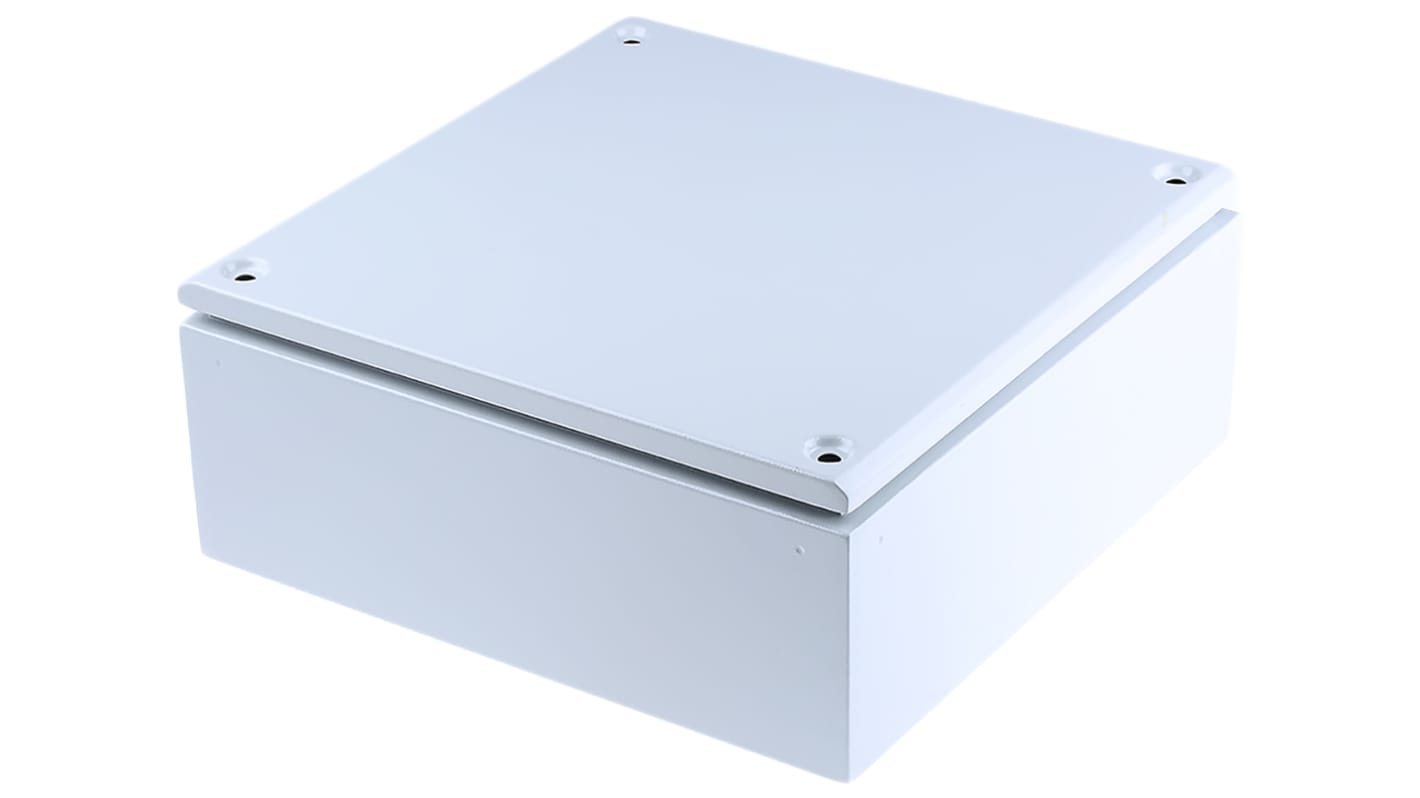

Schneider Electric Spacial SBM Series Steel Wall Box, IP66, 300 mm x 300 mm x 120mm

Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
783-9322
Mfr. Part No.:
NSYSBM303012
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

External Height

300 mm

External Width

300 mm

External Depth

120mm

Body Material

Steel

Transparent Door

No

IP Rating

IP66

Chassis Plate

No

Door Lock Type

Screw

Gland Plate

No

Colour

Grey

RAL Code

RAL 7035

Series

Spacial SBM

External Mounting Type

Bracket

Special Features

Removable Cover

IK Rating

IK10

Fixing Kit

No

Internal Mounting Type

Panel

COO (Country of Origin):
IN

Schneider Electric Spacial SBM Industrial Wall Box Enclosures.


The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The SBM wall boxes offer excellent perfomance with up to date design a quality product.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.

Features and Benefits.


• 28 sizes available increasing to 42 by using the extension box accessory
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics

Typical Applications.


The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.

Note

(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).

Schneider Electric NSYSBM303012 wall mounting enclosures


What are the external dimensions?


NSYSBM303012 has external dimensions of 300 x 300 x 120 mm.

What is supplied?


The NSYSBM303012 enclosure is supplied with a steel body, 1 cover with a half turn metal screw and 4 cover screws.

Can the wall box be used outside?


Yes the NSYSBM303012 has an Ingress Protection rating of IP66 so can be used inside or outside.

What type of lock does it have?


The enclosure has an outside sealed area: PZ2 screwdriver captive screw

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.
