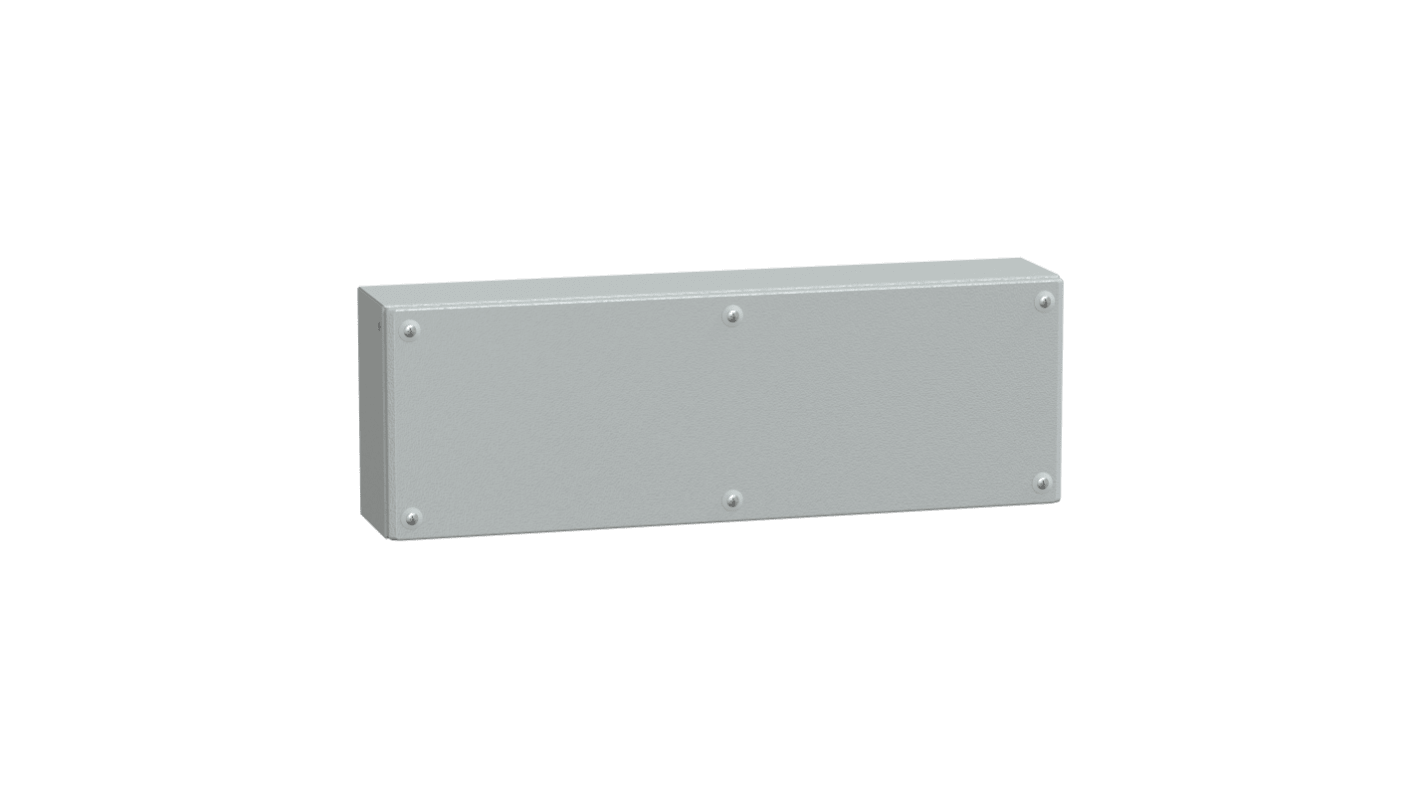

Schneider Electric PanelSeT SBM Series Steel Wall Box, IP66, 200 mm x 600 mm x 120 mm

RS Stock No.:: 783-9319
Mfr. Part No.:: NSYSBM206012
Brand:: Schneider Electric

Schneider Electric PanelSeT SBM Series Steel Wall Box, IP66, 200 mm x 600 mm x 120 mm

Subtotal (1 unit)*

£115.67

(exc. VAT)

£138.80

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 4 unit(s) shipping from 01 June 2026
Plus 1 unit(s) shipping from 01 June 2026
Plus 5 unit(s) shipping from 30 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£115.67

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 783-9319
Mfr. Part No.:: NSYSBM206012
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Wall Box
	External Height	200mm
	External Depth	120mm
	Body Material	Steel
	Transparent Door	No
	IP Rating	IP66
	Chassis Plate	No
	Door Lock Type	Screw
	Gland Plate	No
	Mounting plate	No
	External Width	600mm
	Internal Mount Type	Panel
	Colour	Grey
	Series	PanelSeT SBM
	Standards/Approvals	IEC 62208, REACH, BV, LR, RoHS, UL, DNV
	Better World Claim	Designed for Disassembly
	Better World Product	Yes
	IK Rating	IK10
	Fixing Kit	No

	Select all
	Brand Schneider Electric
	Product Type Wall Box
	External Height 200mm
	External Depth 120mm
	Body Material Steel
	Transparent Door No
	IP Rating IP66
	Chassis Plate No
	Door Lock Type Screw
	Gland Plate No
	Mounting plate No
	External Width 600mm
	Internal Mount Type Panel
	Colour Grey
	Series PanelSeT SBM
	Standards/Approvals IEC 62208, REACH, BV, LR, RoHS, UL, DNV
	Better World Claim Designed for Disassembly
	Better World Product Yes
	IK Rating IK10
	Fixing Kit No

NSYSBM206012 Spacial SBM Multi-Purpose Industrial Wall Box Enclosure.

Spacial SBM Series – Industrial Enclosure Wall Box..

Flat face box.

Wall mounted.

Single piece body folded and welded.

Plain door / lid.

Fixes with half turn metal screw.

Outside sealed area: PZ2 screwdriver captive screw lock.

Cover is removable with captive screws.

Made from sheet steel with a Polyester powder coating finish, Grey (RAL 7035).

IP 66 IEC 60529.

IK 10 conforming to IEC 62262.

What is supplied?

1 x Enclosure door / cover, 6 x cover screws, 1 x Enclosure body.

Schneider Electric Spacial SBM Industrial Wall Box Enclosures.

The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The SBM wall boxes offer excellent perfomance with up to date design a quality product.

The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.

The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.

Features and Benefits.

• 28 sizes available increasing to 42 by using the extension box accessory

• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas

• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height

• Can be Installed with just a screwdriver

• Direct fixing though the rear or with external mounting lugs

• Protected inside and outside with polyester grey paint, RAL 7035

• Attractive and tough design for protection of sensitive electronics

Typical Applications.

The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.

Note

(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).

Approvals

BV, DNV, GL, LR, UL.

Standards

IEC 62208.
