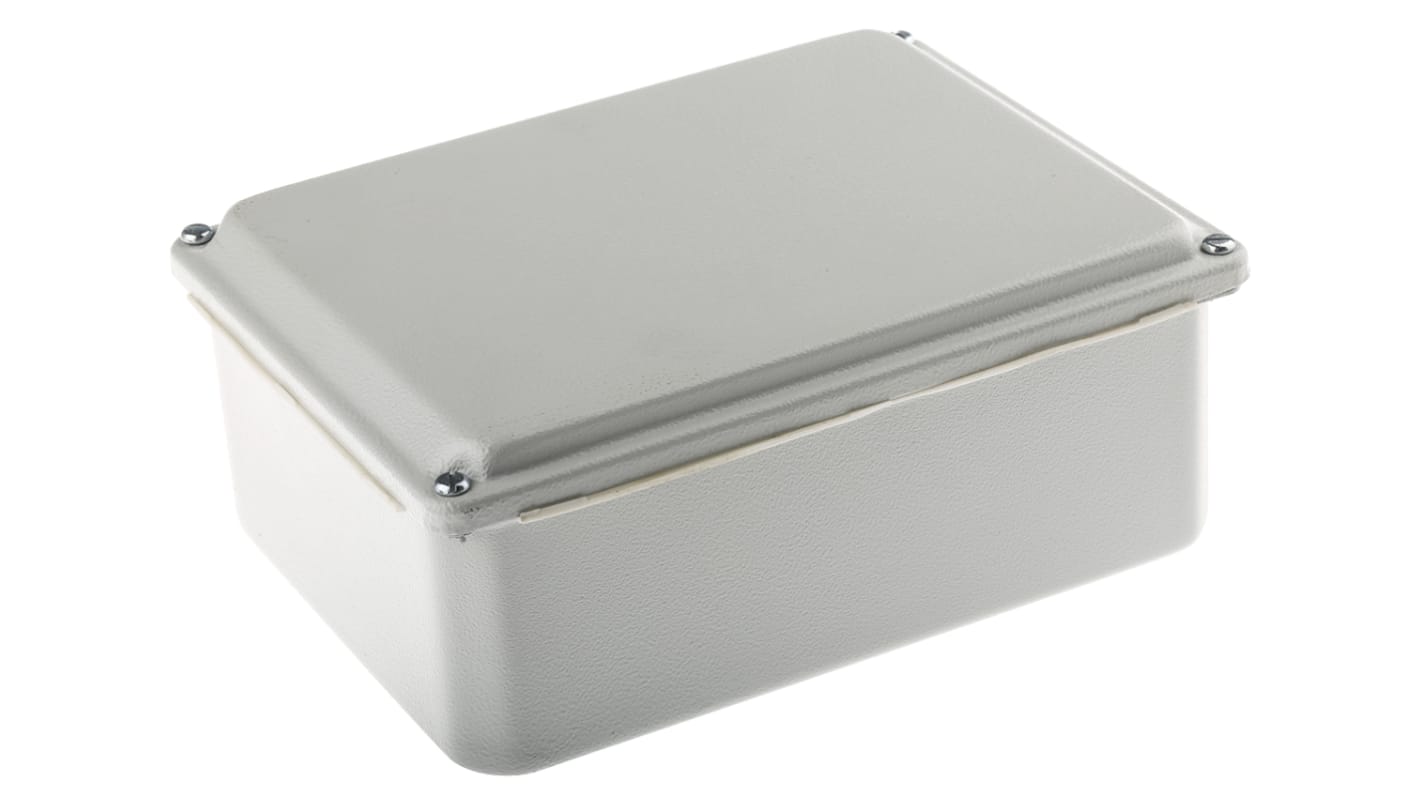

Schneider Electric PanelSeT SDB Series Steel Wall Box, IP55, 206 mm x 156 mm x 83mm
- RS Stock No.:
- 701-8301
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£36.09
(exc. VAT)
£43.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 57 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £36.09 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 701-8301
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
External Height | 206 mm | |
External Width | 156 mm | |
External Depth | 83mm | |
Body Material | Steel | |
Transparent Door | No | |
IP Rating | IP55 | |
Chassis Plate | No | |
Door Lock Type | Screw | |
Gland Plate | No | |
Colour | Grey | |
RAL Code | RAL 7035 | |
Series | PanelSeT SDB | |
Better World Product | Yes | |
External Mounting Type | Bracket | |
Better World Verification | Green Premium | |
Fixing Kit | No | |
IK Rating | IK07 | |
Internal Mounting Type | Panel | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
External Height 206 mm | ||
External Width 156 mm | ||
External Depth 83mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP55 | ||
Chassis Plate No | ||
Door Lock Type Screw | ||
Gland Plate No | ||
Colour Grey | ||
RAL Code RAL 7035 | ||
Series PanelSeT SDB | ||
Better World Product Yes | ||
External Mounting Type Bracket | ||
Better World Verification Green Premium | ||
Fixing Kit No | ||
IK Rating IK07 | ||
Internal Mounting Type Panel | ||
Spacial SDB Steel Multi-Purpose Wall Box / Junction Box.
From Schneider Electric this is the NSYDBN2015 steel wall-mounted multi-purpose enclosure, part of the Spacial SDB range of wall boxes and junction boxes.
The RAL 7035 light grey box has M4 threaded holes with removable blanking plugs suitable for fixing optional chassis plate and external dimensions of 206 x 156 x 83mm and a screw fixing low plain cover.
The RAL 7035 light grey box has M4 threaded holes with removable blanking plugs suitable for fixing optional chassis plate and external dimensions of 206 x 156 x 83mm and a screw fixing low plain cover.
The SDB wall box range has many benefits including:
- Excellent mechanical resistance.
- Stamped cover and body.
- Choice of dimensions with and without knockouts.
- Watertight.
- PVC gasket protection.
- Choose models with and without hinges.
- High covers for larger models.
- Easy fixing for internal accessories.
- Maximum internal space.
- Simple design.
Wall box finishes available.
- Polyester epoxy paint.
- Leather type surface.
- RAL 7035 Grey colour.
Features and Benefits.
- Multi-purpose empty wall box enclosure / junction box.
- Low plain cover.
- Wall mounting.
- Made from steel with an Epoxy polyester powder coating.
- IP55 – protection against solid bodies larger than 1 mm, against water spray from all directions
- IK07 – protected against a 500g object from 40cm in height
- PVC sealing gasket between lid and box
Typical Applications.
NSYDBN2015 Spacial SDB industrial wall box can be used in various applications such as underground parking, road, railway tunnels and transport infrastructures or any application that requires the protection of electrical connections from heat or shocks.
Supplied with.
- Wall box enclosure cover, wall box cover and 1 cover screw.
Standards
IEC 62208
