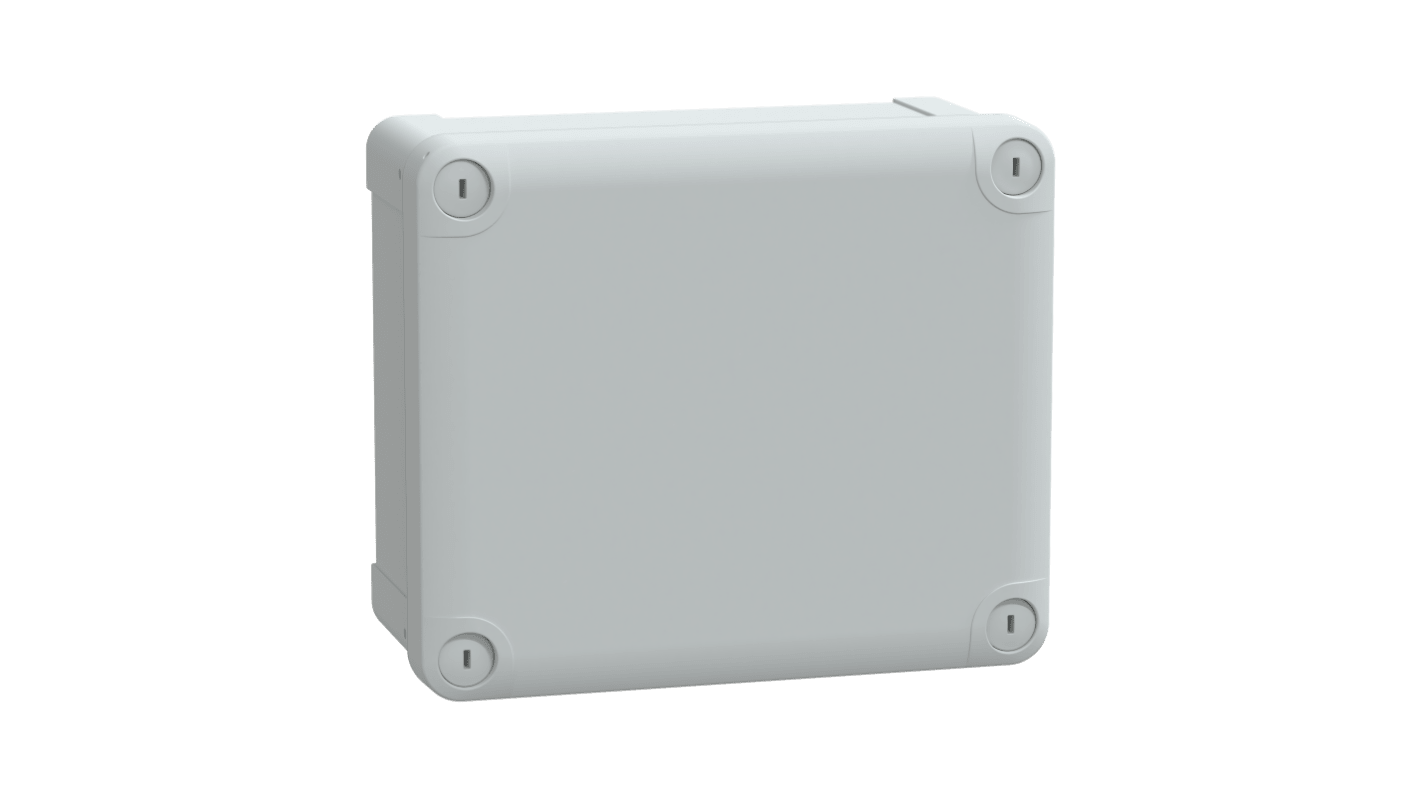

Schneider Electric Thalassa TBS Series ABS Wall Box, IP66, 192 mm x 164 mm x 87mm
- RS Stock No.:
- 689-9819
- Mfr. Part No.:
- NSYTBS19168
- Brand:
- Schneider Electric
31 In stock - FREE next working day delivery available
34 available from Europe for delivery within 1 working day(s).
Added
Price Each
£20.12
(exc. VAT)
£24.14
(inc. VAT)
| Units | Per unit |
| 1 + | £20.12 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 689-9819
- Mfr. Part No.:
- NSYTBS19168
- Brand:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
Schneider Electric Thalassa TBS Enclosures
The Thalassa TBS series from Schneider Electric is a range of multifunction wall mounted, insulating, industrial enclosures that are easy to install using a flat screwdriver.
The ABS enclosures provide 3 wall-mounting methods: directly by the holes on the base, by channels outside the sealed area or by fixing wrap-over clamps.
Features and Benefits
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK07 (joules 2) meaning the wall box is protected against a 500 g object dropped from 40 cm in height
• Mounting studs on the cover
• Cover locking by 4 plastic captive screws
• Adaptable hinges on the 20 mm and 40 mm covers
• Usage temperature of -25° C to +60° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Only 1 tool required, a flat screwdriver
• External mechanical impact resistance of IK07 (joules 2) meaning the wall box is protected against a 500 g object dropped from 40 cm in height
• Mounting studs on the cover
• Cover locking by 4 plastic captive screws
• Adaptable hinges on the 20 mm and 40 mm covers
• Usage temperature of -25° C to +60° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Only 1 tool required, a flat screwdriver
Typical Applications
The range of Thalassa TBS enclosures are suitable for the protection of small size components that require little intervention or maintenance.
NSYTBS19168 Wall Mounting Enclosure
What are the external dimensions?
NSYTBS19168 has external dimensions of 192 x 164 x 87 mm.
What is supplied?
The NSYTBS19168 enclosure is supplied with a 1 body, 1 cover and 4 cover screws
Can the wall box be used outside?
The NSYTBS19168 has an Ingress Protection rating of IP66 so can be used inside or outside.
Standards
IEC 62208
Specifications
Attribute | Value |
|---|---|
| External Height | 192 mm |
| External Width | 164 mm |
| External Depth | 87mm |
| Body Material | ABS |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Screw |
| Gland Plate | No |
| Colour | Grey |
| RAL Code | RAL 7035 |
| Series | Thalassa TBS |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| External Mounting Type | Knockouts |
| Special Features | Removable Cover |
| Internal Mounting Type | Mounting Bosses |
| Fixing Kit | No |
| IK Rating | IK07 |
- RS Stock No.:
- 689-9819
- Mfr. Part No.:
- NSYTBS19168
- Brand:
- Schneider Electric
