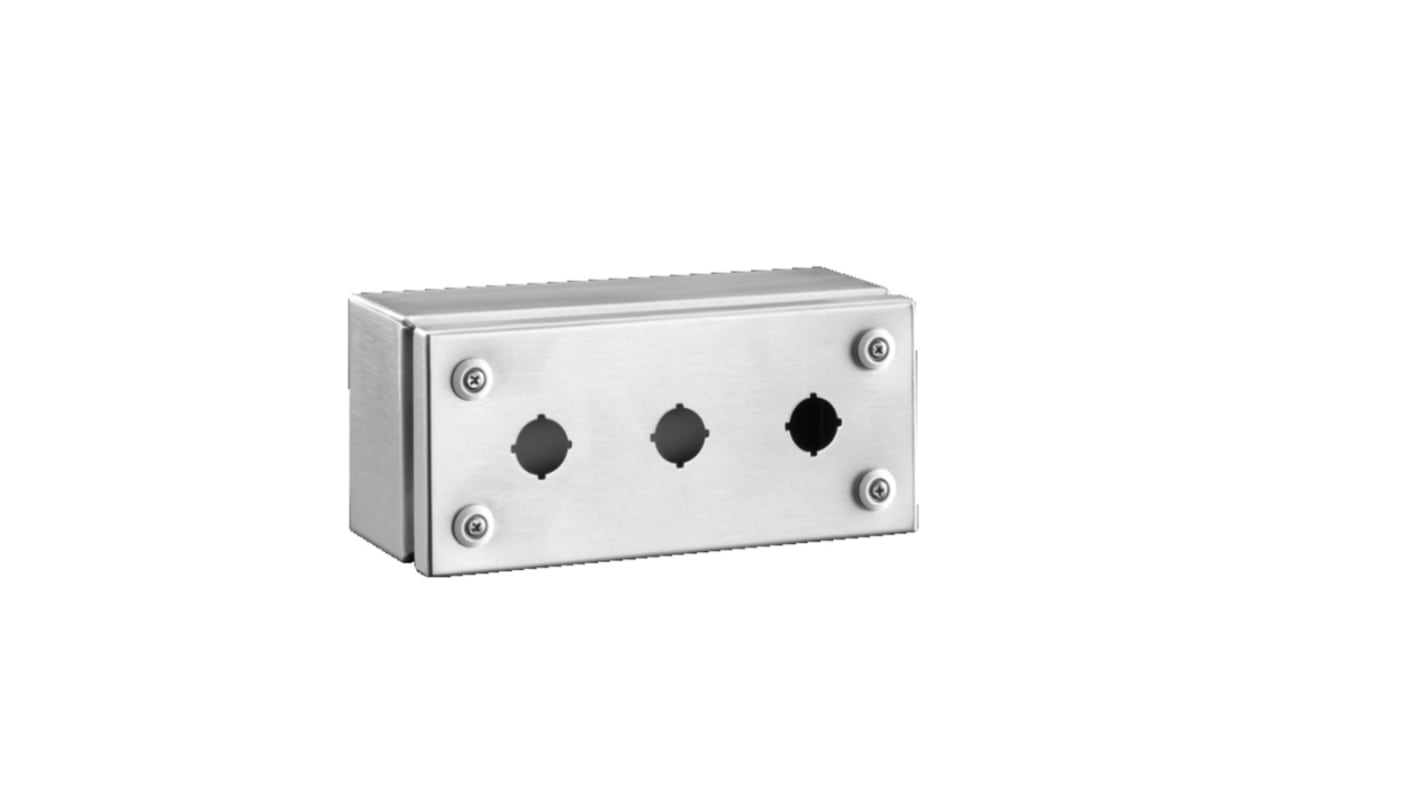

Rittal SM Series 304 Stainless Steel Wall Box, IP66, 100 mm x 220 mm x 90mm
- RS Stock No.:
- 228-9325
- Mfr. Part No.:
- 2384030
- Brand:
- Rittal
Subtotal (1 unit)*
£133.78
(exc. VAT)
£160.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 4 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £133.78 |
*price indicative
- RS Stock No.:
- 228-9325
- Mfr. Part No.:
- 2384030
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| External Height | 100 mm | |
| External Width | 220 mm | |
| External Depth | 90mm | |
| Body Material | 304 Stainless Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Chassis Plate | No | |
| Door Lock Type | Quick Release Lock | |
| Gland Plate | No | |
| Colour | RAL 5010 | |
| RAL Code | RAL 5010 | |
| Series | SM | |
| IK Rating | IK08 | |
Select all | ||
|---|---|---|
Brand Rittal | ||
External Height 100 mm | ||
External Width 220 mm | ||
External Depth 90mm | ||
Body Material 304 Stainless Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Chassis Plate No | ||
Door Lock Type Quick Release Lock | ||
Gland Plate No | ||
Colour RAL 5010 | ||
RAL Code RAL 5010 | ||
Series SM | ||
IK Rating IK08 | ||
- COO (Country of Origin):
- DE
Rittal Enclosure, 100 mm External Height - 2384030
This stainless steel enclosure from Rittal offers superior protection with its 304 stainless steel body material and IP66 rating. Ideal for outdoor applications, this enclosure provides a secure storage solution for your electrical components.
Features & Benefits
• Durable 304 stainless steel construction ensures long-lasting performance
• IP66 rated for waterproof protection, making it suitable for outdoor use
• Compact design with dimensions of 220mm (W) x 100mm (H) x 90mm (D)
• Quick-release fastener with plastic bushes for easy access to internal components
• Brushed surface finish with grain 240 for a sleek appearance.
• IP66 rated for waterproof protection, making it suitable for outdoor use
• Compact design with dimensions of 220mm (W) x 100mm (H) x 90mm (D)
• Quick-release fastener with plastic bushes for easy access to internal components
• Brushed surface finish with grain 240 for a sleek appearance.
Applications
• Suitable for use in industrial settings where durability is key
• Ideal for housing electrical components in outdoor environments
• Suitable for protecting sensitive equipment in harsh weather conditions
• Ideal for housing electrical components in outdoor environments
• Suitable for protecting sensitive equipment in harsh weather conditions
Can it be used for outdoor applications?
Yes, it is designed for outdoor use with its IP66 waterproof rating.
Will it fit standard electrical components?
It is suitable for housing a variety of electrical components with its compact design.
Is it easy to access internal components?
Yes, the quick-release fastener allows for easy access to internal components.
