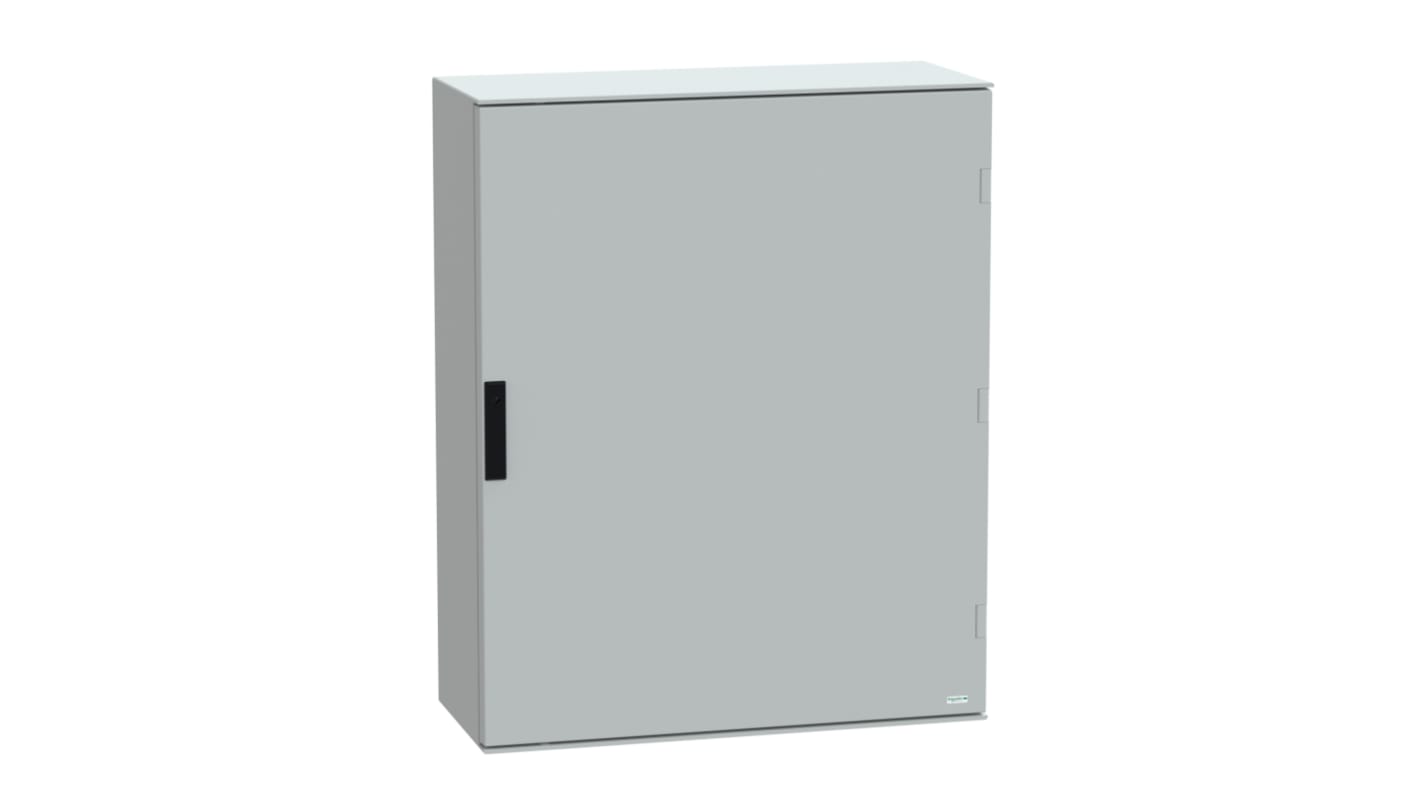

Schneider Electric PanelSeT Series PET Wall Box, IP66, 1056 mm x 852 mm x 350mm
- RS Stock No.:
- 123-0651
- Mfr. Part No.:
- NSYPLM108G
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£680.38
(exc. VAT)
£816.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £680.38 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 123-0651
- Mfr. Part No.:
- NSYPLM108G
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 1056 mm | |
| External Width | 852 mm | |
| External Depth | 350mm | |
| Body Material | PET | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Chassis Plate | No | |
| Door Lock Type | 4-Point Lock, Double Bar | |
| Gland Plate | No | |
| Colour | Grey | |
| RAL Code | RAL 7035 | |
| Series | PanelSeT | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| External Mounting Type | Bracket | |
| Standards Met | IEC 60529, IEC 62208, IEC 62262 | |
| For Protection Of | Instrumentation | |
| Special Features | Flame Resistant | |
| Internal Mounting Type | Panel | |
| Fixing Kit | No | |
| IK Rating | IK10 | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 1056 mm | ||
External Width 852 mm | ||
External Depth 350mm | ||
Body Material PET | ||
Transparent Door No | ||
IP Rating IP66 | ||
Chassis Plate No | ||
Door Lock Type 4-Point Lock, Double Bar | ||
Gland Plate No | ||
Colour Grey | ||
RAL Code RAL 7035 | ||
Series PanelSeT | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
External Mounting Type Bracket | ||
Standards Met IEC 60529, IEC 62208, IEC 62262 | ||
For Protection Of Instrumentation | ||
Special Features Flame Resistant | ||
Internal Mounting Type Panel | ||
Fixing Kit No | ||
IK Rating IK10 | ||
Schneider Electric NSYPLM108G
Thalassa PLM wall-mounting polyester enclosure monobloc. 1056 x 852 x 350 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 4 points lock, 5 mm double-bar insert. Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Features & Benefits
• Door is removable for versatile installation to suit your design specifications
• IP66 rating indicates it's dust-proof and resistant to high-pressure water jets
• IK10 rating indicates it can resist impact energy of up to 20J
• Flame-retardant properties mean it won't contribute to a workplace fire
• IP66 rating indicates it's dust-proof and resistant to high-pressure water jets
• IK10 rating indicates it can resist impact energy of up to 20J
• Flame-retardant properties mean it won't contribute to a workplace fire
Applications
• Offices and commercial premises
• Chemical processing facilities
• Data centres
• Chemical processing facilities
• Data centres
How do I mount this wall box?
This wall box is designed to be wall mounted with screws, which ensures it's securely attached to its mounting surface.
Note
Supplied without mounting plate
Approvals
UL.
Standards
IEC 62208, NEMA classification 13, NEMA classification 4X.
Supplied with
Body, plain door and a lock
