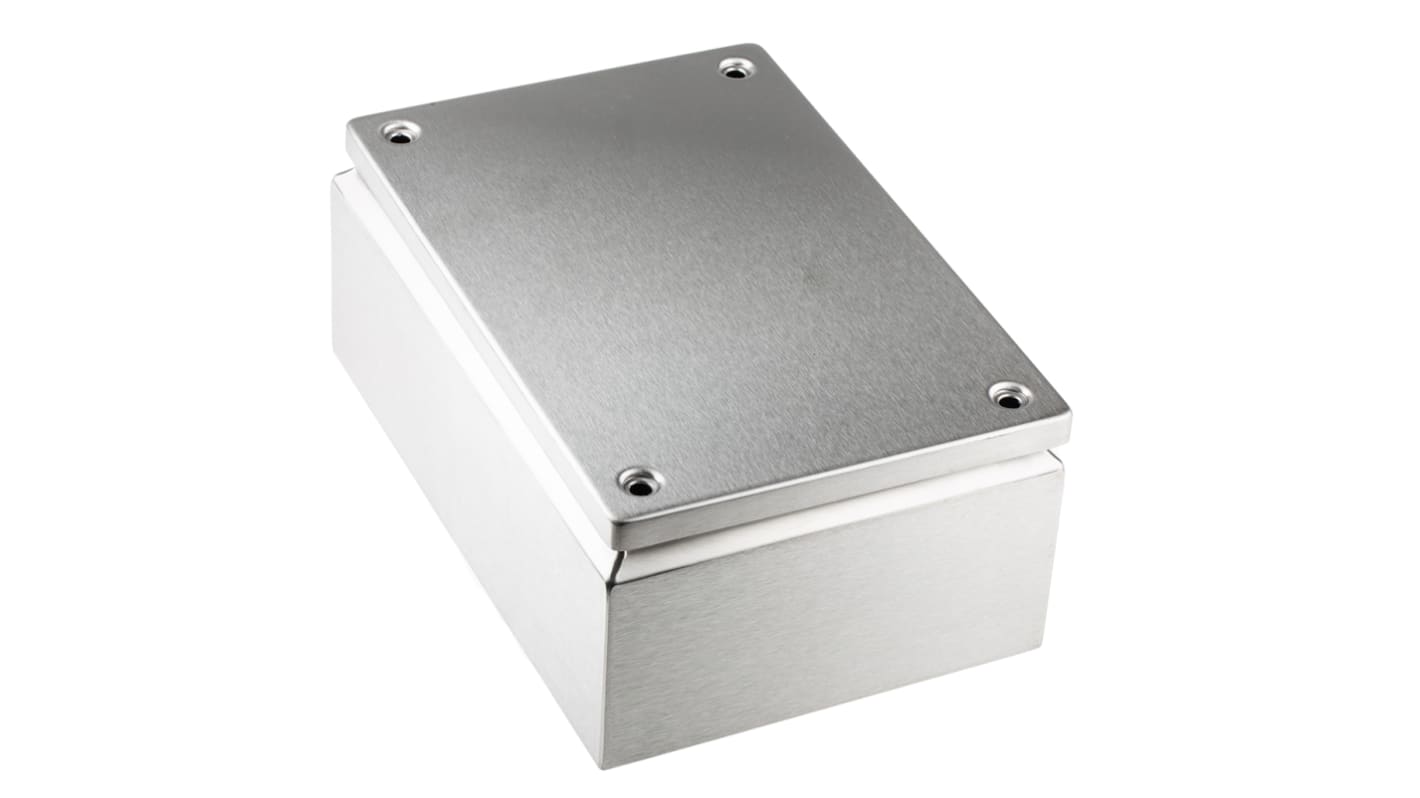

Rittal KL Series 304 Stainless Steel Terminal Box, IP66, 200 mm x 300 mm x 120mm
- RS Stock No.:
- 111-3723
- Mfr. Part No.:
- 1529010
- Brand:
- Rittal
17 In stock - FREE next working day delivery available
Added
Price Each
£232.89
(exc. VAT)
£279.47
(inc. VAT)
| Units | Per unit |
| 1 + | £232.89 |
- RS Stock No.:
- 111-3723
- Mfr. Part No.:
- 1529010
- Brand:
- Rittal
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Rittal Stainless Steel Terminal Box, 200mm Height, 300mm Width - KL Series - 1529010
Securely contain your electrical items with this terminal box from Rittal. It's made of a folded and welded piece of stainless steel for durability and resistance to wear. The steel contains chromium and nickel for protection against corrosion, making this box a good choice for use in harsh industrial environments. The cover can be screwed down for added protection against tampering. This box has an all-round, foamed-in polyurethane seal that prevents contaminants from entering the enclosure, protecting your delicate components against damage.
Features & Benefits
• Door is non-transparent to prevent unauthorised personnel from seeing inside
• Compact dimensions of 200 (height) x 300 (width) x 120mm (depth) to save space
• Supplied with a quick-release fastener for fast removal of the cover when needed
• Compact dimensions of 200 (height) x 300 (width) x 120mm (depth) to save space
• Supplied with a quick-release fastener for fast removal of the cover when needed
Applications
• Testing facilities
• Machine workshops
• Vehicle garages
• Electrical control rooms
• Factory floors
• Machine workshops
• Vehicle garages
• Electrical control rooms
• Factory floors
Can I use this terminal box in damp and dusty environments?
Yes, this terminal box has an IP66 (ingress protection) rating, meaning it's protected against dust and high-pressure water jets. This makes it safe for use in dirty or humid conditions.
Specifications
Attribute | Value |
|---|---|
| External Height | 200 mm |
| External Width | 300 mm |
| External Depth | 120mm |
| Body Material | 304 Stainless Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Gland Plate | No |
| IK Rating | IK08 |
| Colour | Unpainted |
| Series | KL |
| Fixing Kit | No |
| External Mounting Type | Bracket |
| Internal Mounting Type | Mounting Bosses |
| Application | Electrical |
| For Protection Of | Instrumentation |
- RS Stock No.:
- 111-3723
- Mfr. Part No.:
- 1529010
- Brand:
- Rittal
