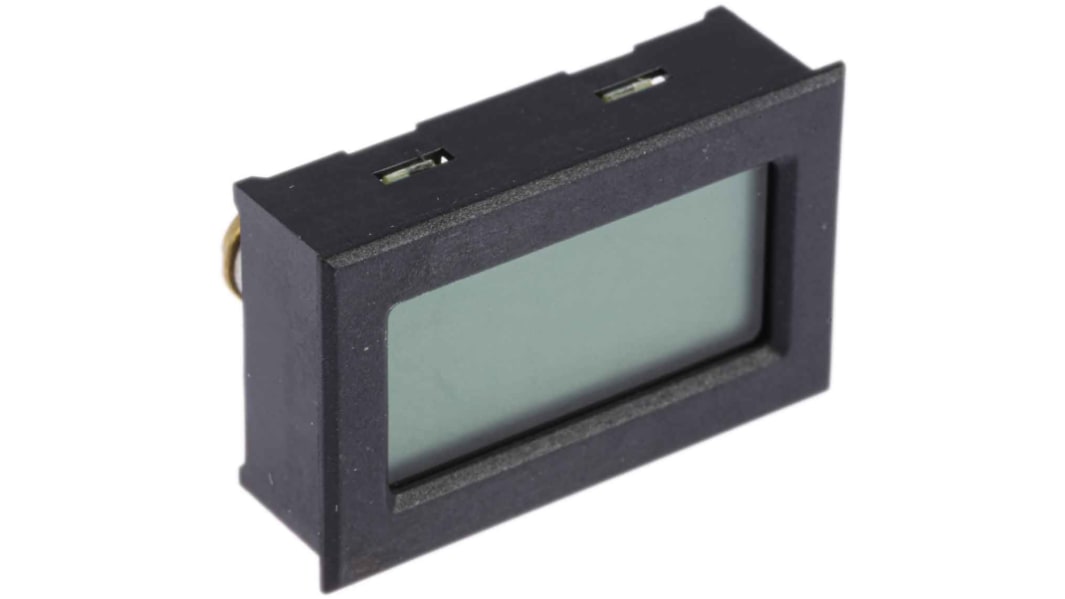

Murata Power Solutions Digital Voltmeter DC, LCD Display 3-Digits ±0.2 V
- RS Stock No.:
- 810-3340
- Mfr. Part No.:
- DMS-20LCD-1-DCM-C
- Brand:
- Murata Power Solutions
Save 5% when you buy 10 units
Subtotal (1 unit)*
£35.40
(exc. VAT)
£42.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 36 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £35.40 |
5 - 9 | £33.98 |
10 + | £33.28 |
*price indicative
- RS Stock No.:
- 810-3340
- Mfr. Part No.:
- DMS-20LCD-1-DCM-C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata Power Solutions | |
Current Type | DC | |
Number of Digits | 3 | |
Display Type | LCD | |
Cutout Height | 21.29mm | |
Cutout Width | 33.93mm | |
Depth | 16.8mm | |
Meter Accuracy | ±0.2 V | |
Analogue Effect | Digits Only | |
Minimum Temperature | 0°C | |
Meter Type | Voltmeter | |
Maximum Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Murata Power Solutions | ||
Current Type DC | ||
Number of Digits 3 | ||
Display Type LCD | ||
Cutout Height 21.29mm | ||
Cutout Width 33.93mm | ||
Depth 16.8mm | ||
Meter Accuracy ±0.2 V | ||
Analogue Effect Digits Only | ||
Minimum Temperature 0°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- CN
Murata Power Solutions Digital Voltmeter
The Murata Power Solutions digital voltmeter is a self-powered, auto-ranging, DC voltage monitor. The large, 0.37in/9.4mm, LCD, with built-in "VDC" annunciator, is easily readable from a distance of 10ft. It utilizes a precision analogue-to-digital converter and ultra-stable passive components to achieve excellent performance. A rugged, ABS plastic package provides excellent protection against shock and vibration. Its supply voltage ranging between 8VDC and 50VDC.
Features and Benefits
Only 2 connections required
Ideal for battery-powered systems
Reverse polarity protected
Number of digits are 3
Operating temperature ranging between 0°C and 60°C
Ideal for battery-powered systems
Reverse polarity protected
Number of digits are 3
Operating temperature ranging between 0°C and 60°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
