Sifam Tinsley Analogue Voltmeter DC ±2.5 %, 27 (Dia.) mm
- RS Stock No.:
- 196-8339
- Mfr. Part No.:
- IS 10998
- Brand:
- Sifam Tinsley

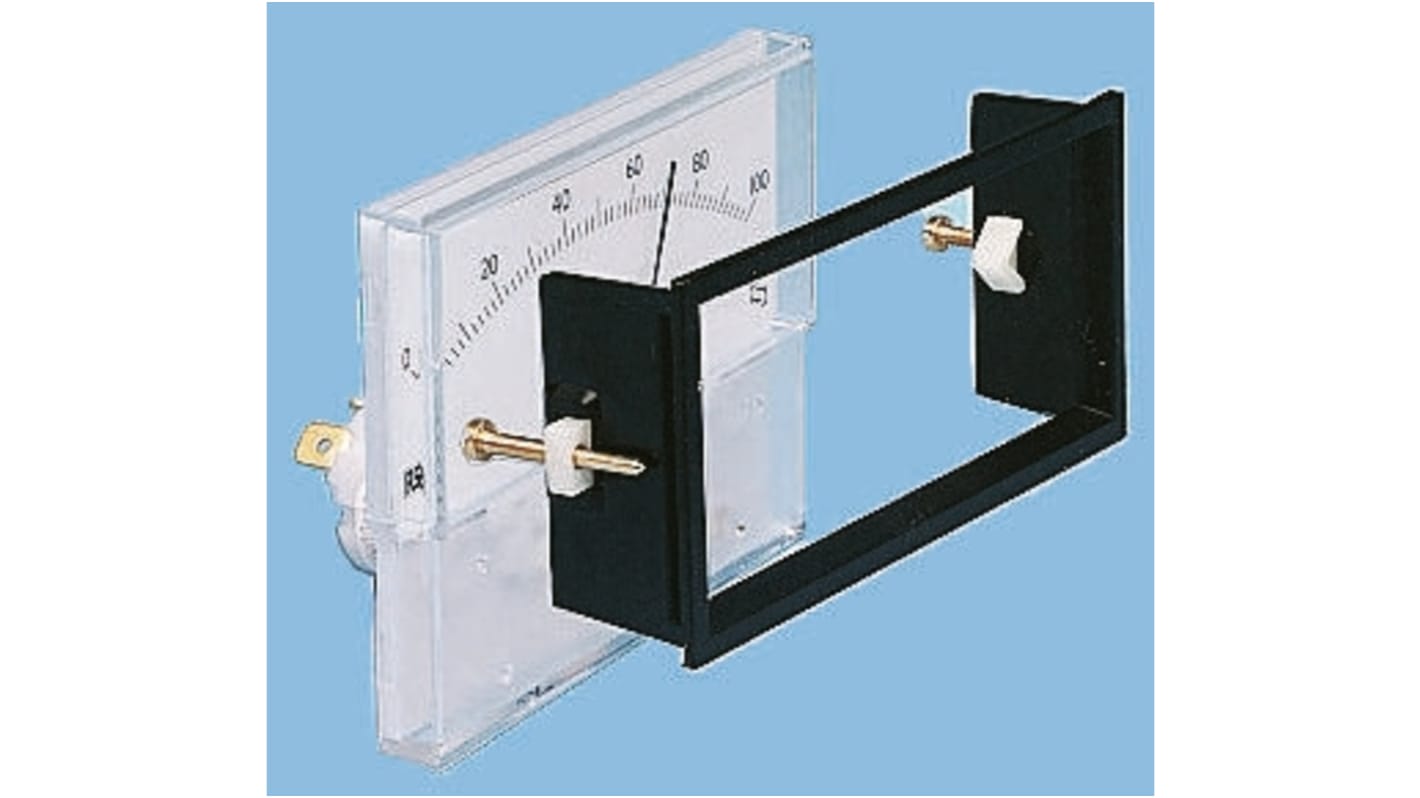

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£42.72
(exc. VAT)
£51.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £42.72 |
5 - 9 | £41.39 |
10 + | £40.50 |
*price indicative
- RS Stock No.:
- 196-8339
- Mfr. Part No.:
- IS 10998
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sifam Tinsley | |
Current Type | DC | |
Cutout Height | 38mm | |
Cutout Width | 43mm | |
Depth | 31.2mm | |
Meter Accuracy | ±2.5 % | |
Minimum Temperature | -25°C | |
Meter Type | Voltmeter | |
Maximum Temperature | +55°C | |
Select all | ||
---|---|---|
Brand Sifam Tinsley | ||
Current Type DC | ||
Cutout Height 38mm | ||
Cutout Width 43mm | ||
Depth 31.2mm | ||
Meter Accuracy ±2.5 % | ||
Minimum Temperature -25°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +55°C | ||
- COO (Country of Origin):
- GB
Presentor Range DC Meters
Electrical connections via 6mm tag terminals
Accuracy classes BS89; IEC51 and EN60051
Operating temperature range –25 to +55°C
Front mounting panel cut-out 27mm diameter in maximum panel thickness of 4mm
Rear mounting panel cut-outs (with bezel) in a maximum panel thickness of 6mm
Fixing stud sizes: M2 x 10.0mm (for 43.9 x37.9mm), M2.5 x 10.0mm (for other sizes)
Accuracy classes BS89; IEC51 and EN60051
Operating temperature range –25 to +55°C
Front mounting panel cut-out 27mm diameter in maximum panel thickness of 4mm
Rear mounting panel cut-outs (with bezel) in a maximum panel thickness of 6mm
Fixing stud sizes: M2 x 10.0mm (for 43.9 x37.9mm), M2.5 x 10.0mm (for other sizes)


Standards
BS89, IEC51, EN60051
Moving Coil DC Meters
