- RS Stock No.:
- 186-2472
- Brand:
- RS PRO
32 In stock - FREE next working day delivery available
4 available from Europe for delivery within 2 working day(s).
Price Each
£15.50
(exc. VAT)
£18.60
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £15.50 |
5 - 9 | £14.74 |
10 + | £13.95 |
- RS Stock No.:
- 186-2472
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IN
Product Details

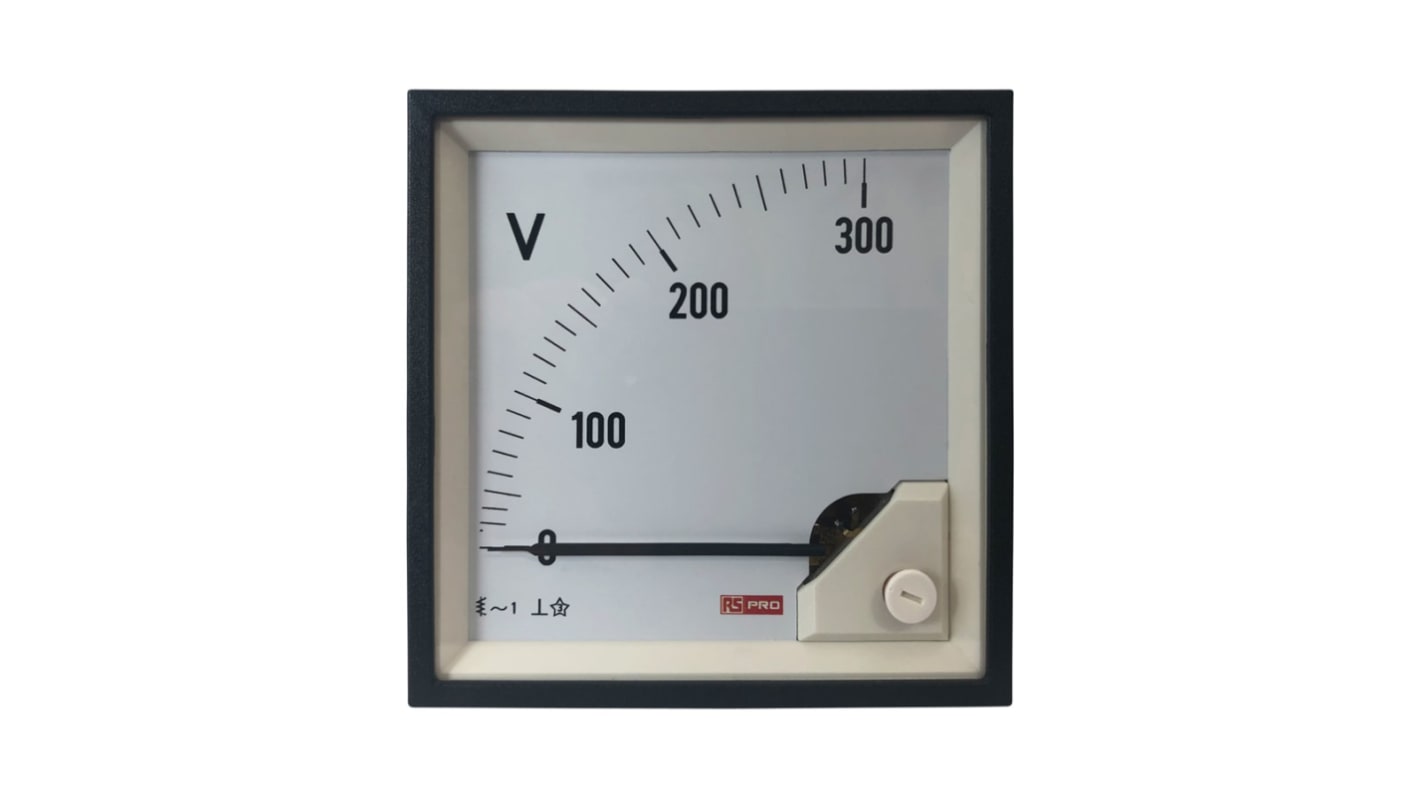

RS PRO AC Analogue Panel Voltmeter
The RS PRO 92mm x 92mm cut-out AC analogue panel voltmeter has a measurement range from 0VAC to 300VAC input. The DIN 96 style panel meter comprises of moving iron movement that indicates true RMS value and it is substantially independent of system waveform. The scales are calibrated down to 10%. The meter is housed in a moulded polycarbonate case and suitable for measurement of voltages in the frequency range from 15Hz to 100Hz.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: From 0° to 90°
• Nominal range of use: From 6V to 100V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: From 0° to 90°
• Nominal range of use: From 6V to 100V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
Specifications
Attribute | Value |
---|---|
Current Type | AC |
Display Type | Analogue |
Cutout Height | 92mm |
Cutout Width | 92mm |
Depth | 66 (100 A)mm |
Meter Accuracy | 0.01 |
Minimum Temperature | -10°C |
Maximum Temperature | +65°C |
