RS PRO Analogue Voltmeter AC, Analogue Display 0.01

View all Voltmeters
Bulk discount available

Subtotal (1 unit)*

£15.70

(exc. VAT)

£18.84

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£15.70
5 - 9£14.90
10 +£14.13

*price indicative

RS Stock No.:
186-2455
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Current Type

AC

Display Type

Analogue

Cutout Height

68mm

Cutout Width

68mm

Depth

66 (100 A)mm

Meter Accuracy

0.01

Minimum Temperature

-10°C

Maximum Temperature

+65°C

RoHS Status: Exempt

COO (Country of Origin):
IN

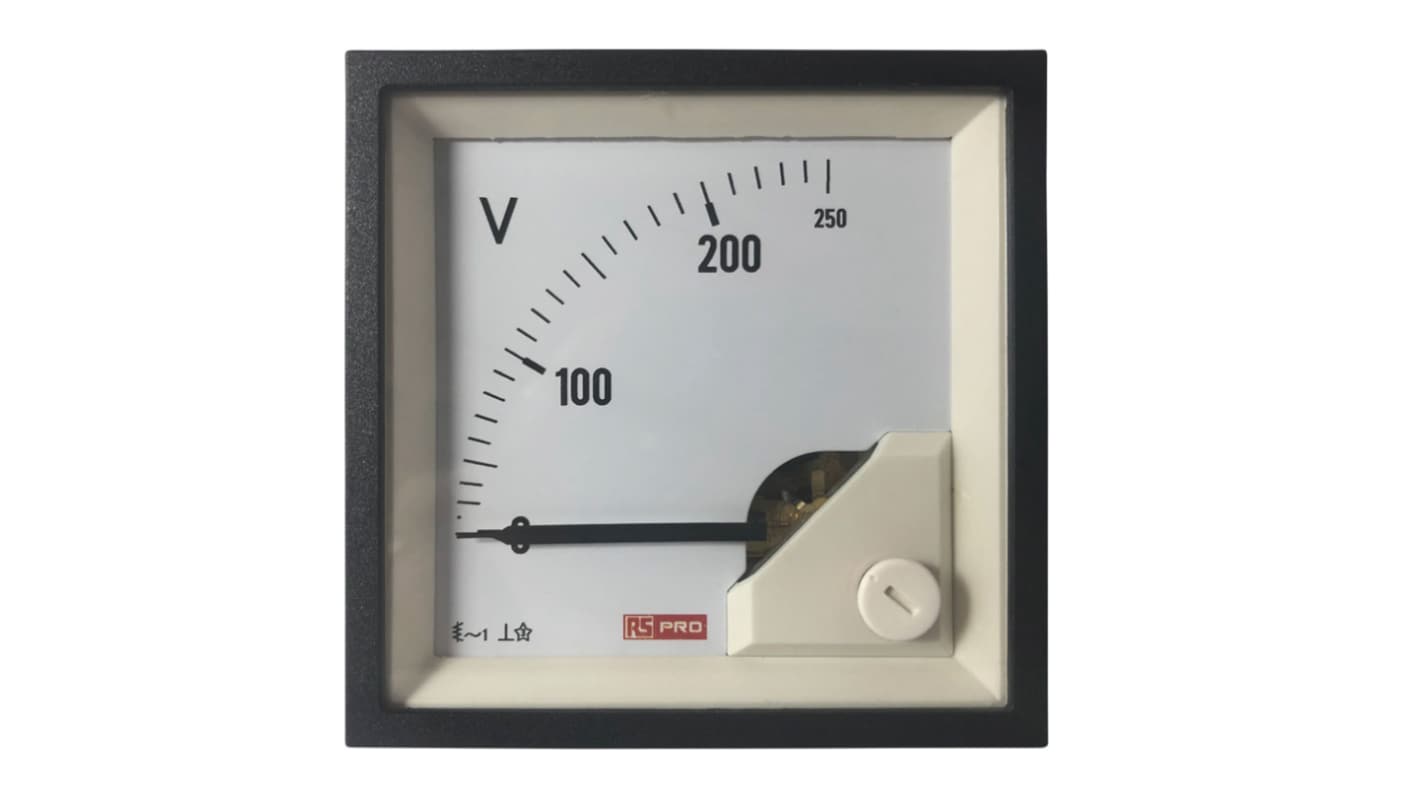

RS PRO AC Analogue Panel Voltmeter


The RS PRO 68mm x 68mm cut-out AC analogue panel voltmeter has a measurement range of 0V to 250VAC input. The DIN 72 style panel meter comprises of moving iron movement. It indicates true RMS value and is substantially independent of system waveform. The scales are calibrated down to 10%. The meter is housed in a moulded polycarbonate case and is suitable for measurement of voltages in the frequency range of 15Hz to 100Hz.

Features and Benefits


• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• Nominal range of use: 6V to 100V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)

Certifications


• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
