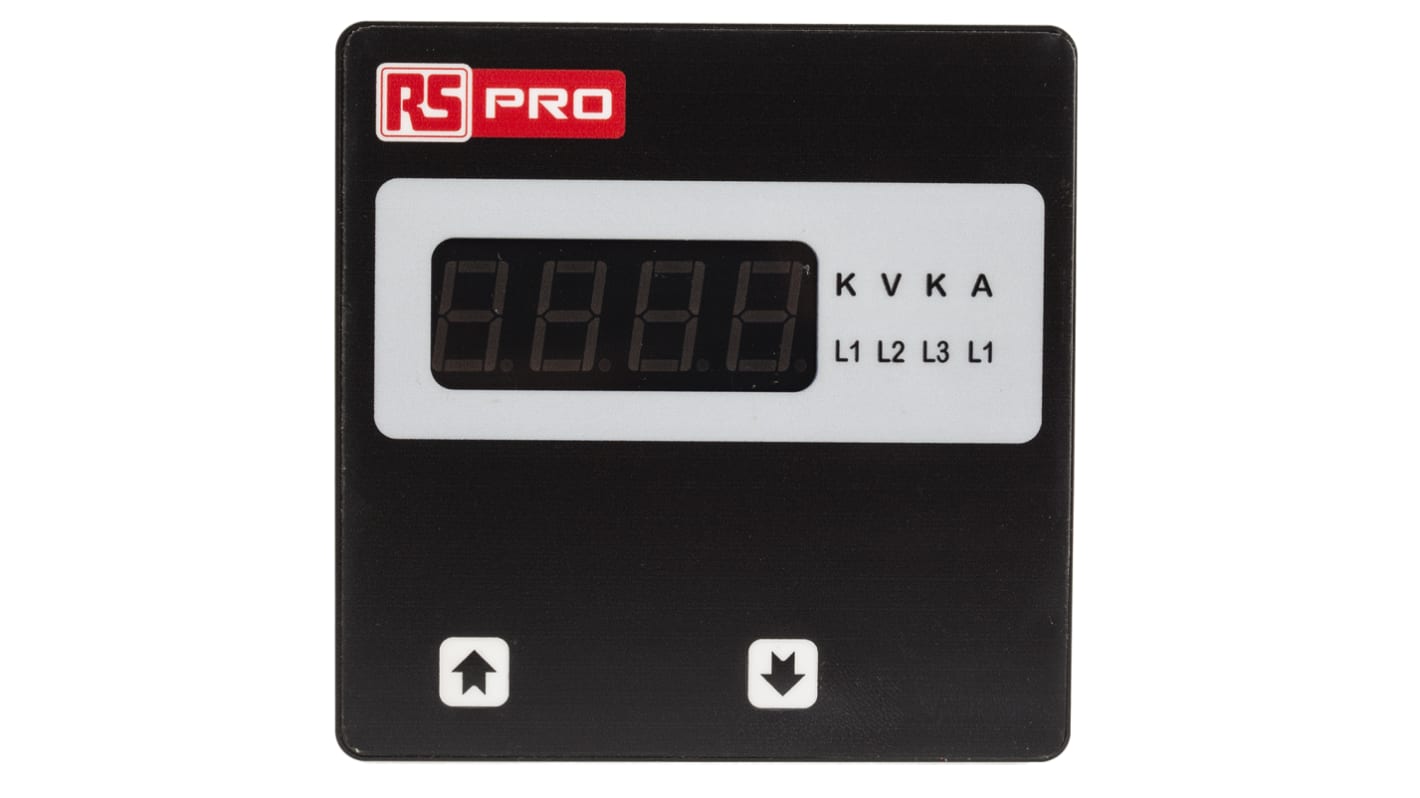

RS PRO BT14 Series Digital Voltmeter AC, LED Display 4-Digits ±0.5 + 1 Digit %, 92 mm, 92 mm
- RS Stock No.:
- 136-5389
- Brand:
- RS PRO
Subtotal (1 unit)*
£42.85
(exc. VAT)
£51.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 30 March 2026
- Plus 2 unit(s) shipping from 30 March 2026
- Plus 10 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.85 |
*price indicative
- RS Stock No.:
- 136-5389
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Digital Voltmeter | |
| Current Type | AC | |
| Number of Digits | 4 | |
| Display Type | LED | |
| Cutout Height | 92mm | |
| Cutout Width | 92mm | |
| Depth | 55mm | |
| Digit Height | 14mm | |
| Meter Accuracy | ±0.5 + 1 Digit % | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | IEC 60529, IEC 61010-1:2001, IEC 61326-1:2005 | |
| Maximum Operating Temperature | 50°C | |
| Series | BT14 | |
| Maximum Measurement | 9999 | |
| Minimum Measurement | 0.1 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Digital Voltmeter | ||
Current Type AC | ||
Number of Digits 4 | ||
Display Type LED | ||
Cutout Height 92mm | ||
Cutout Width 92mm | ||
Depth 55mm | ||
Digit Height 14mm | ||
Meter Accuracy ±0.5 + 1 Digit % | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals IEC 60529, IEC 61010-1:2001, IEC 61326-1:2005 | ||
Maximum Operating Temperature 50°C | ||
Series BT14 | ||
Maximum Measurement 9999 | ||
Minimum Measurement 0.1 | ||
- COO (Country of Origin):
- IN
RS Pro Digital Voltmeter- 1 Phase
RS Pro digital voltmeters designed for use in industrial applications which require precise and onsite adjustment of the display range. The single phase voltmeters can be used in industrial automation and for laboratory uses.
Features and Benefits
4-digits ultra-bright LED display (up to 9999)
Fast and easy installation (clip-in mounting for 96 x 96 model only)
True RMS measurement
On-site programmable CT/PT ratios
User selectable CT secondary 1A/5A
User selectable PT secondary from 60…600 V LC AC
Wide auxiliary power supply which can accept any input between 40 V-300 V ac/dc
Storage of MIN/MAX values
