Chauvin Arnoux CA 742, LED Voltage tester, 690 V ac, 750V dc, Continuity Check, Battery Powered, CAT IV With RS

View all Voltage Testers

Subtotal (1 unit)*

£122.25

(exc. VAT)

£146.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship from another location
  • Plus 19 unit(s) shipping from 30 October 2025
  • Plus 2 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£122.25

*price indicative

RS Stock No.:
913-6849
Mfr. Part No.:
P01191742Z
Brand:
Chauvin Arnoux
Find similar products by selecting one or more attributes.
Select all

Brand

Chauvin Arnoux

Maximum Voltage

690 V ac, 750V dc

Continuity Check

Yes

Safety Category

CAT IV 600V

Display Type

LED

IP Rating

IP65

Battery Type

AAA, LR03

Calibrated

RSCAL

Power Source

Battery

Dimensions

163 x 64 x 40mm

Weight

210g

Height

40mm

Length

163mm

Maximum Operating Temperature

+45°C

Safety Category Level

CAT IV

Safety Category Voltage

600V

Width

64mm

Model Number p

CA 742

Minimum Operating Temperature

-15°C

RoHS Status: Exempt

COO (Country of Origin):
CN

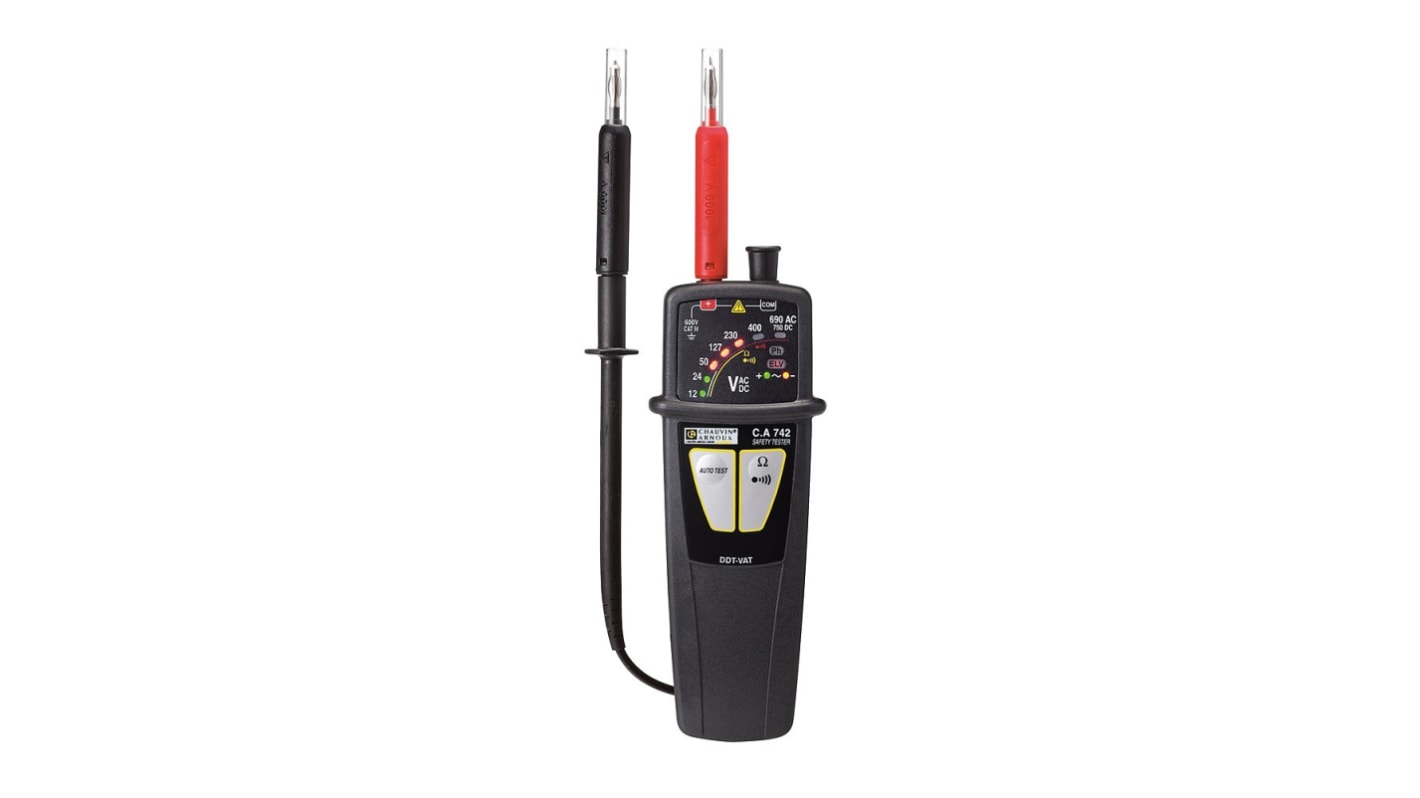

Chauvin Arnoux Low-voltage Two-pole Voltage Absence Tester CA742


Chauvin Arnoux CA742 is a voltage detector with indicator lights. It is an instrument of choice for electricians checking that no voltage is present before working on an electrical installation connected to the network. It complies with IEC 61243-3 Edition 2 and can be used to work on any indoor or outdoor 600 V CAT IV installation. To fulfil the requirements of the standards and legislation in different countries, RS offers different versions - without IP2X accessories ( 914-0021 ) and with IP2X accessories ( 914-0025 ). The CA742 is equipped with a redundant safety system in the event of power supply faults. An 'ELV LED' flashes whenever the voltage exceeds 50 V AC / 120 V DC. The full Autotest of the CA742 checks the electrical circuits, the power supply, the display and the condition of the measurement leads.

Features and Benefits


Full integrated autotest
Voltage testing up to 690 V AC (16 2/3 Hz - 800 Hz) / 750 V DC
Single-pole phase test
Phase sequence testing up to 400 Hz
Input impedance >300 kΩ
Continuity testing
Removable test probe and cable
Dimensions 163 x 64 x 40 mm
IP65 protection rating
Weight 210 g

Note

The voltages indicated on the CA742 are nominal voltages - users must ensure the device will be used on networks at standardised voltages.

Standards

EN 61243-3 Ed.2009, EN 61243-3 Ed.2010, DIN VDE 0682-401 Ed.2011

Supplied with

Red test probe 2 mm diameter, black lead terminated by test probe 2mm diameter (CA742) or 90 cm black lead and 25 cm red lead terminated
by an IP2X probe tip 4 mm diameter (CA742 IP2X) plus (both models) strap, battery (x2), user manual (in 5 languages), verification certificate


Voltage Level Indicators


A range of voltage testers each available in versions suitable for electronic or electrical applications.
