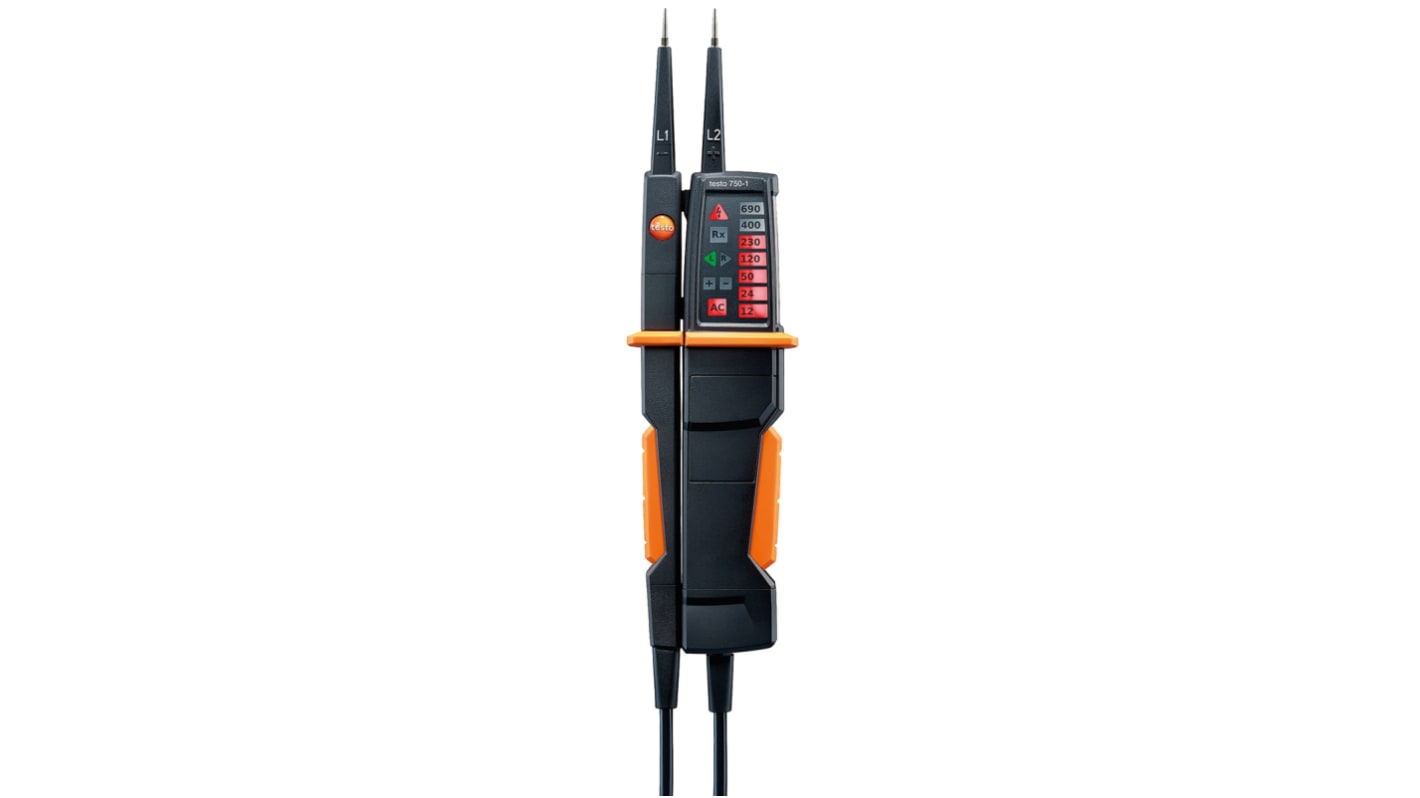

Testo 750-1, LED Voltage tester, 690V, Continuity Check, Battery Powered, CAT III 1000V With RS Calibration
- RS Stock No.:
- 905-6756
- Mfr. Part No.:
- 0590 7501
- Brand:
- Testo
Subtotal (1 unit)*
£95.99
(exc. VAT)
£115.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £95.99 |
*price indicative
- RS Stock No.:
- 905-6756
- Mfr. Part No.:
- 0590 7501
- Brand:
- Testo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Testo | |
Maximum Voltage | 690V | |
Continuity Check | Yes | |
Safety Category | CAT III 1000 V, CAT IV 600V | |
Display Type | LED | |
IP Rating | IP64 | |
Calibrated | RSCAL | |
Battery Type | AAA | |
Power Source | Battery | |
Dimensions | 270 x 65 x 35mm | |
Weight | 119g | |
Height | 35mm | |
Length | 270mm | |
Maximum Operating Temperature | +50°C | |
Width | 65mm | |
Minimum Operating Temperature | -10°C | |
Safety Category Voltage | 600 V, 1000 V | |
Model Number p | 750-1 | |
Select all | ||
---|---|---|
Brand Testo | ||
Maximum Voltage 690V | ||
Continuity Check Yes | ||
Safety Category CAT III 1000 V, CAT IV 600V | ||
Display Type LED | ||
IP Rating IP64 | ||
Calibrated RSCAL | ||
Battery Type AAA | ||
Power Source Battery | ||
Dimensions 270 x 65 x 35mm | ||
Weight 119g | ||
Height 35mm | ||
Length 270mm | ||
Maximum Operating Temperature +50°C | ||
Width 65mm | ||
Minimum Operating Temperature -10°C | ||
Safety Category Voltage 600 V, 1000 V | ||
Model Number p 750-1 | ||
- COO (Country of Origin):
- CN
Testo 750-1 Voltage Tester
Testo 750-1 has an LED display. The display is visible from any position and guarantees an ideal voltage indication due to its unique fibre optics.
Testo 750-1 meets EN 61243-3:2010 standards and have a safety specification according to CAT4. The voltmeter has the functions for voltage testing, continuity testing and rotating magnetic field measurement.
Testo 750-1 meets EN 61243-3:2010 standards and have a safety specification according to CAT4. The voltmeter has the functions for voltage testing, continuity testing and rotating magnetic field measurement.
Clear LED Display
Fibre optic technology for optimum voltage indication
Anti-slip ring or secure grip
Ergonomic handle shape
Fibre optic technology for optimum voltage indication
Anti-slip ring or secure grip
Ergonomic handle shape
Standards
EN 61243-3:2010
Approvals
CSA, CE
Supplied with
Testo 750-1 voltage tester, batteries, measuring tip protector and measuring tip caps.
Testo Voltage Tester, 690V AC/DC, LED Display - 750 Series - 0590 7501
Use this voltage tester from Testo for current flow and continuity checks in electrical systems. Thanks to its fibre optic technology, this sensitive device gives precise readings for voltage, continuity and rotating magnetic fields, making it a versatile choice.
This component has an ergonomically designed handle for comfortable use. It also has an anti-slip ring that gives you a secure grip on the instrument. It has an LED (light-emitting diode) display, making it easy to read the measurement values in a variety of lighting conditions.
This component has an ergonomically designed handle for comfortable use. It also has an anti-slip ring that gives you a secure grip on the instrument. It has an LED (light-emitting diode) display, making it easy to read the measurement values in a variety of lighting conditions.
Features & Benefits
• IP64 (ingress protection) rating means it's resistant to dust and water splashes
• Wide operating temperature range of -10°C to +50°C for use in a variety of demanding environments
• Light weight of 230g for ease of handling
• Battery-powered for portable use
• Wide operating temperature range of -10°C to +50°C for use in a variety of demanding environments
• Light weight of 230g for ease of handling
• Battery-powered for portable use
Applications
• Electrical switching cabinets
• Machine control panels
• Machine control panels
How do I use this voltage tester?
This voltage tester is easy to use. Simply place one probe on one wire or connection and place the other on the opposite wire. The corresponding voltage value will light up once the device has measured it.
Voltage Level Indicators
A range of voltage testers each available in versions suitable for electronic or electrical applications.
