MPN

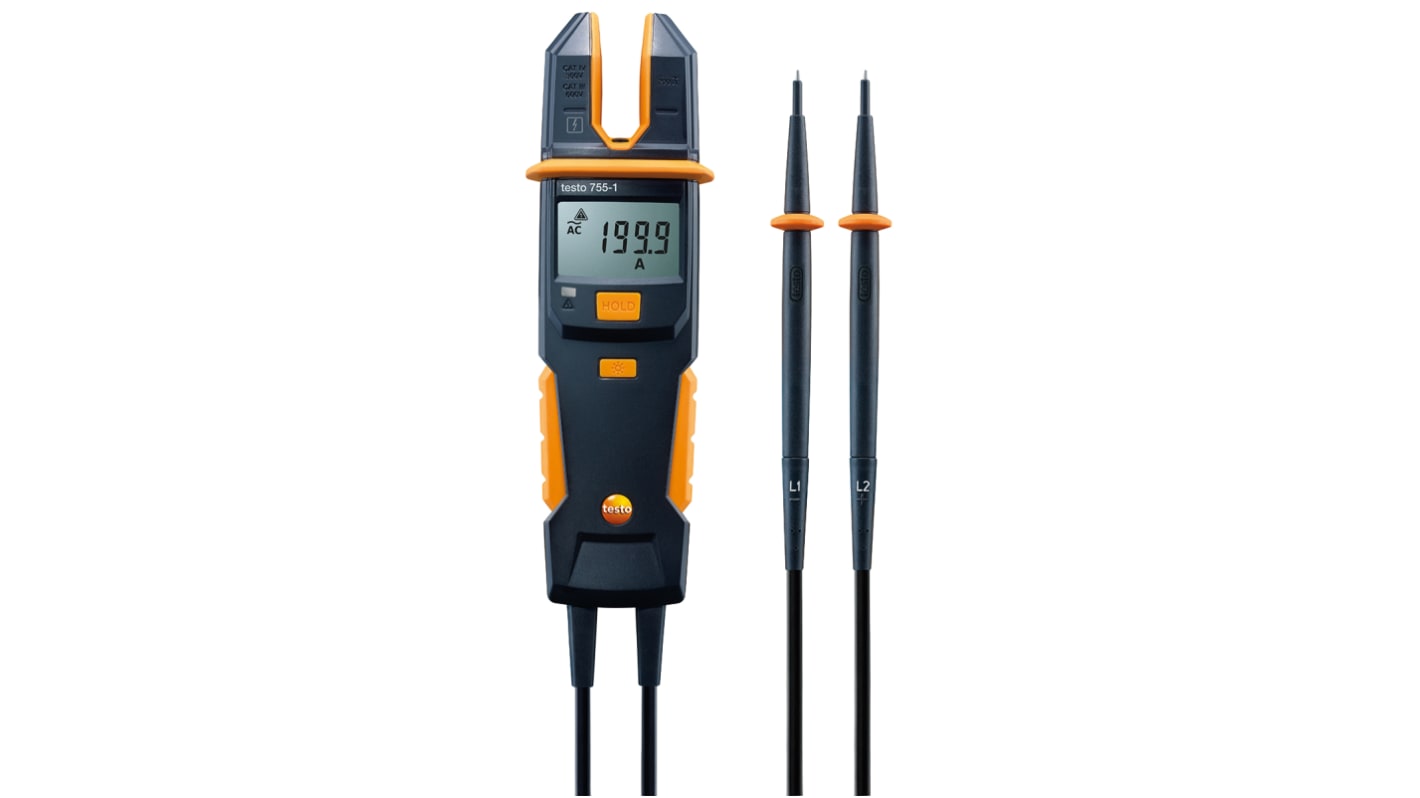

Testo 755-1, LCD Voltage tester, 600V, Continuity Check, Battery Powered, CAT III 1000V UKAS

Name: Testo 755-1, LCD Voltage tester, 600V, Continuity Check, Battery Powered, CAT III 1000V UKAS
Brand: Testo
SKU: 905-6800
Price: 234.23 GBP
Availability: InStock

RS Stock No.:: 905-6800
Mfr. Part No.:: 0590 7551
Brand:: Testo

Testo 755-1, LCD Voltage tester, 600V, Continuity Check, Battery Powered, CAT III 1000V UKAS

View all Voltage Testers

Subtotal (1 unit)*

£195.19

(exc. VAT)

£234.23

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£195.19

*price indicative

RS Stock No.:: 905-6800
Mfr. Part No.:: 0590 7551
Brand:: Testo

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Testo
	Maximum Voltage	600V
	Continuity Check	Yes
	Safety Category	CAT III 1000 V, CAT IV 600V
	Display Type	LCD
	IP Rating	IP64
	Calibrated	UKAS
	Battery Type	AAA
	Power Source	Battery
	Dimensions	199 x 62 x 40mm
	Weight	360g
	Height	40mm
	Length	199mm
	Maximum Operating Temperature	+50°C
	Model Number p	755-1
	Minimum Operating Temperature	-10°C
	Width	62mm
	Safety Category Voltage	600 V, 1000 V

	Select all
	Brand Testo
	Maximum Voltage 600V
	Continuity Check Yes
	Safety Category CAT III 1000 V, CAT IV 600V
	Display Type LCD
	IP Rating IP64
	Calibrated UKAS
	Battery Type AAA
	Power Source Battery
	Dimensions 199 x 62 x 40mm
	Weight 360g
	Height 40mm
	Length 199mm
	Maximum Operating Temperature +50°C
	Model Number p 755-1
	Minimum Operating Temperature -10°C
	Width 62mm
	Safety Category Voltage 600 V, 1000 V

Testo 755 Voltage Tester

Testo 755 are the first current/voltmeter which meet the requirements of a voltmeter which can also measure current. The voltmeter automatically selects the correct settings preventing dangerous incorrect settings.

They are suitable for all daily electrical measuring tasks. The voltmeter automatically selects the right settings and therefore prevents dangerous incorrect settings every time they are used. Both devices have all the important functions for determining voltage/de-energization, for measuring current and resistance and for continuity tests. The integrated torch enables dark spots to be illuminated. The measuring tips can be changed easily so that the whole instrument does not need replacing.

Testo 755-2 model is differentiated by the larger current range of up to 1000 V. Featuring distinct functions such as single pole phase testing and rotating magnetic field measurement.

Automatic measurement parameter detection
Certified to DIN EN 61243-3:2010
Measurement result without any switching on or selection
Measuring point illumination
Exchangeable measuring tips
IP64 Rated
Measurment Category: CAT IV 600 V, CAT III 1,000 V

Standards

EN 61243-3:2010, EN61010-1

Approvals

TÜV, CSA & CE

Supplied with

Testo current/voltage tester, batteries and measuring tips.

Testo Voltage Tester, 6 to 600V AC/DC Voltage Measuring Range, Battery-Powered - 755 Series - 0590 7551

Use this voltage tester from Testo to accurately measure the electrical properties of your circuits. It measures current, voltage and resistance for versatility, and it has an automatic parameter detection feature to save you time and effort. The tester has a wide voltage measuring range of 6 to 600V AC/DC for use in low and high-power systems. It comes with an integrated torch to let you take readings in dark work areas.

Features & Benefits

• Replaceable measuring tips for long-lasting performance
• Wide operating temperature range of -10°C to +50°C for use in demanding conditions

Applications

• Commercial buildings
• Robotics and automation

Is this voltage tester dustproof?

Yes, this voltage tester has an IP64 rating, which indicates full protection from dust and water splashes from all directions.

Voltage Level Indicators

A range of voltage testers each available in versions suitable for electronic or electrical applications.
