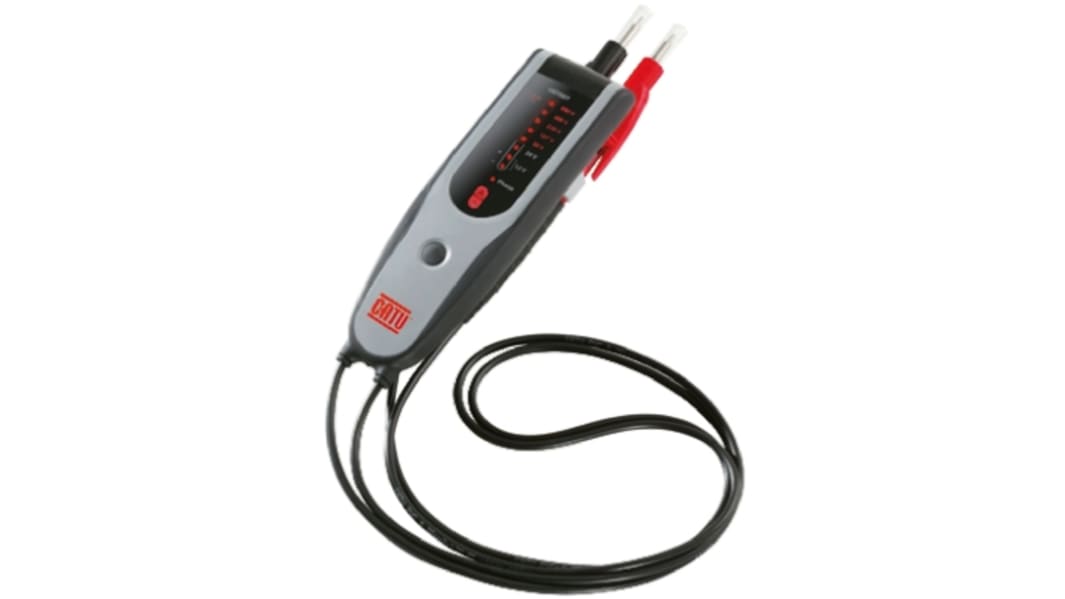

Catu MS-917, LED Voltage tester, 690V ac/dc, Continuity Check, Battery Powered, CAT IV With RS Calibration

RS Stock No.:: 791-4707
Mfr. Part No.:: MS 917
Brand:: Catu

Catu MS-917, LED Voltage tester, 690V ac/dc, Continuity Check, Battery Powered, CAT IV With RS Calibration

Subtotal (1 unit)**

£152.98

(exc. VAT)

£183.58

(inc. VAT)

In stock, please allow 1 day for calibration plus 1 working days for delivery*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£152.98

**price indicative

RS Stock No.:: 791-4707
Mfr. Part No.:: MS 917
Brand:: Catu

MS917 voltage detector

Fully dedicated to safety, this voltage tester combines all the functions of a multicontroller.
It can check AC and DC levels from 6 to 600 V and continuity in disconnected electrical circuits.
IP2X touch points with retractable sheath in compliance with IEC 61010-2-031, for improved contact with the conductive wells.
The MS917 is the essential daily usage safety assistant for professional electricians.
Case available separately:
- reinforced waterproof canvas
- plastic belt loop
- Eclair closing mechanism with two slides (quick opening)

Standards

IEC 61243 and EN 50110-1, IEC 61010-2-031 Cat. III

Catu Voltage Multi-Tester

The Catu voltage multi-tester measures voltage ranging between 12V and 690VAC/DC. It comes with a blister pack, 2xAAA batteries and a user manual.

Applications

Electrical systems
Industrial sites
Commercial sites

• Check the presence of voltage.
• Checks voltage levels from 12 to 900 V AC, 1 000 V DC. (According to models)
• Sound and light continuity for a non-live circuit. (threshold of 200 Ohm).
• Search for the polarities of a DC circuit.
• Unipolar phase identification.
• For indoor / outdoor use.

Features and Benefits

Checks polarity

Searches for phase and neutral

Checks the continuity (200ohm) with a pushbutton

Frequency ranges between50Hz and 60Hz ±10%

LED scale display

Continuity check of a de-energized circuit

Unipolar identification of the phase

Searches for the polarities of a DC circuit

CAT IV 600V safety rating

Operating temperature ranges between -10°C and 55°C

• Fitted with IP2X test lead points with retractable trigger tips (MS-917-PG) or retractable sleeves (MS-917 and MS-917-BS). Test lead points Ø 2 mm L: 19 mm (MS-917-L)
• Total safety with hazardous voltage indicator light (> 50 V).
• Protection level: IP 65 and IK 06.
• Self test button to discern the verification of the good functioning and the continuity function.
• Completely modular and adjustable to eclipse sockets.
• LED display.

Composition

• MS-917-PG and MS-917-ET: supplied with soft carrying case and belt loop Réf. M-87285

Optional Accessories

• Carrying bag with belt loop: M-87285.
• Holder: M-952325.

Certifications

IP65 rated

IK06

IEC 61243

EN 50110-1

IEC 61010-2-031

IEC-61010-1

Voltage Level Indicators

A range of voltage testers each available in versions suitable for electronic or electrical applications.

Attribute	Value
Maximum Voltage	690V ac/dc
Continuity Check	Yes
Safety Category	CAT IV 600V
Display Type	LED
IP Rating	IK06, IP65
Battery Type	AAA
Calibrated	RSCAL
Power Source	Battery
Dimensions	165 x 48 x 40mm
Weight	215g
Height	40mm
Length	165mm
Maximum Operating Temperature	+55°C
Safety Category Voltage	600V
Minimum Operating Temperature	-10°C
Model Number p	MS-917
Safety Category Level	CAT IV
Width	48mm
