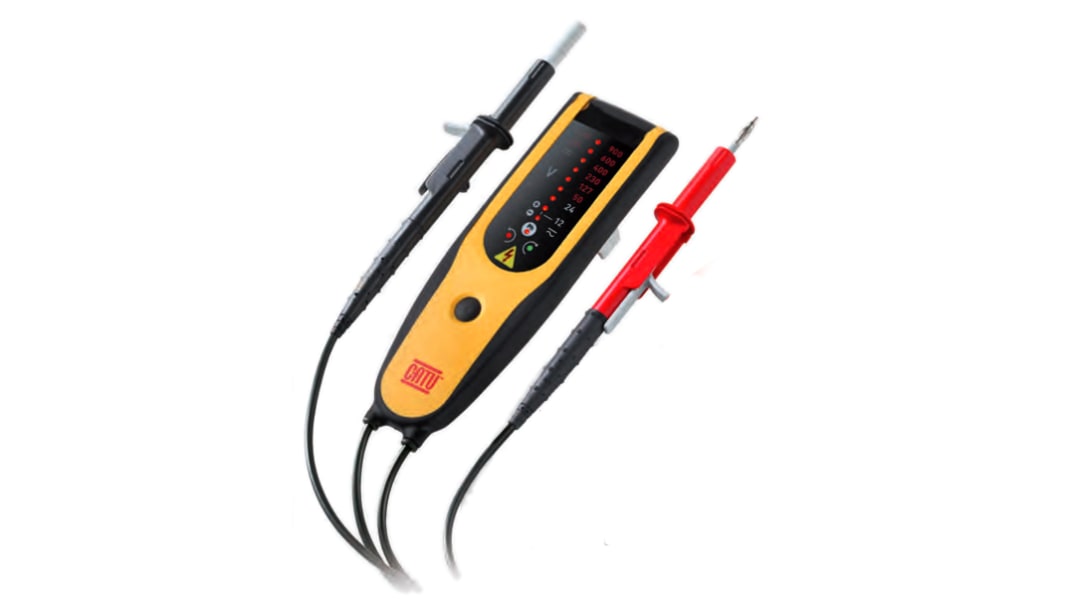

Catu MS-918-PG, LED Voltage tester, 900 V ac, 1000V dc, Continuity Check, Battery Powered, CAT IV

Subtotal (1 unit)*

£139.00

(exc. VAT)

£166.80

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 17 unit(s), ready to ship from another location
Units
Per unit
1 +£139.00

*price indicative

RS Stock No.:
122-5543
Mfr. Part No.:
MS918PG
Brand:
Catu
Find similar products by selecting one or more attributes.
Select all

Brand

Catu

Maximum Voltage

900 V ac, 1000V dc

Continuity Check

Yes

Safety Category

CAT IV 600V

Display Type

LED

IP Rating

IP65

Battery Type

AAA

Power Source

Battery

Weight

210g

Model Number p

MS-918-PG

COO (Country of Origin):
FR

MS-918-PG Voltage Multi-Tester


MS-918-PG is a voltage absence tester in accordance with EN 61243-3 (2010). In response to the requirements of the new standard NF C 18-510 and with the European standard EN 50110-1.

MS-918-PG ensures both VCU function and extra functions such as continuity, phase rotation and phase detection.

Suitable for indoor / outdoor use
Carry out the verification of Absence voltage
Control of voltage levels from 12 V ac → 900 V ac, 1000 V dc (depending on model)
Control of sound and light continuity of a circuit off (threshold of 200 Ω for MS 917 and MS 918 for 80 Ω)
Unipolar tracking the phase
Research polarity of a DC circuit
Control of the phase rotation by 2 method only son for the MS 918
Flexible double-insulated leads
IP65

Application


• Check the presence of voltage.
• Checks voltage levels from 12 to 900 V AC, 12 to 1 000 V DC. (According to models)
• Sound and light continuity for a non-live circuit. (threshold of 80 Ohm)
• Search for the polarities of a DC circuit.
• Unipolar phase identification.
• Phase rotation detection check. (two-wire method)
• For indoor / outdoor use.

Features


• Fitted with IP2X test lead points with retractable trigger tips (MS-918-PG) or retractable sleeves (MS-918 and MS-918-ET). Test lead points Ø 2 mm L: 19 mm (MS-918-L)
• Total safety with hazardous voltage indicator light (>
50 V).
• Protection level: IP 65 and IK 06.
• Self test button to discern the verification of the good functioning and the continuity function.
• Completely modular and adjustable to eclipse sockets.
• Equipped with a lighting lamp at the measuring point.
• LED display.

Composition


• MS-918-PG, MS-918-ET: supplied with soft carrying case and belt loop Ref. M-87285

Optional Accessories


• Carrying bag with belt loop: M-87285.
• Holder: M-952325.

Supplied with

2 x AAA batteries (1.5 V)


Voltage Level Indicators


A range of voltage testers each available in versions suitable for electronic or electrical applications.
