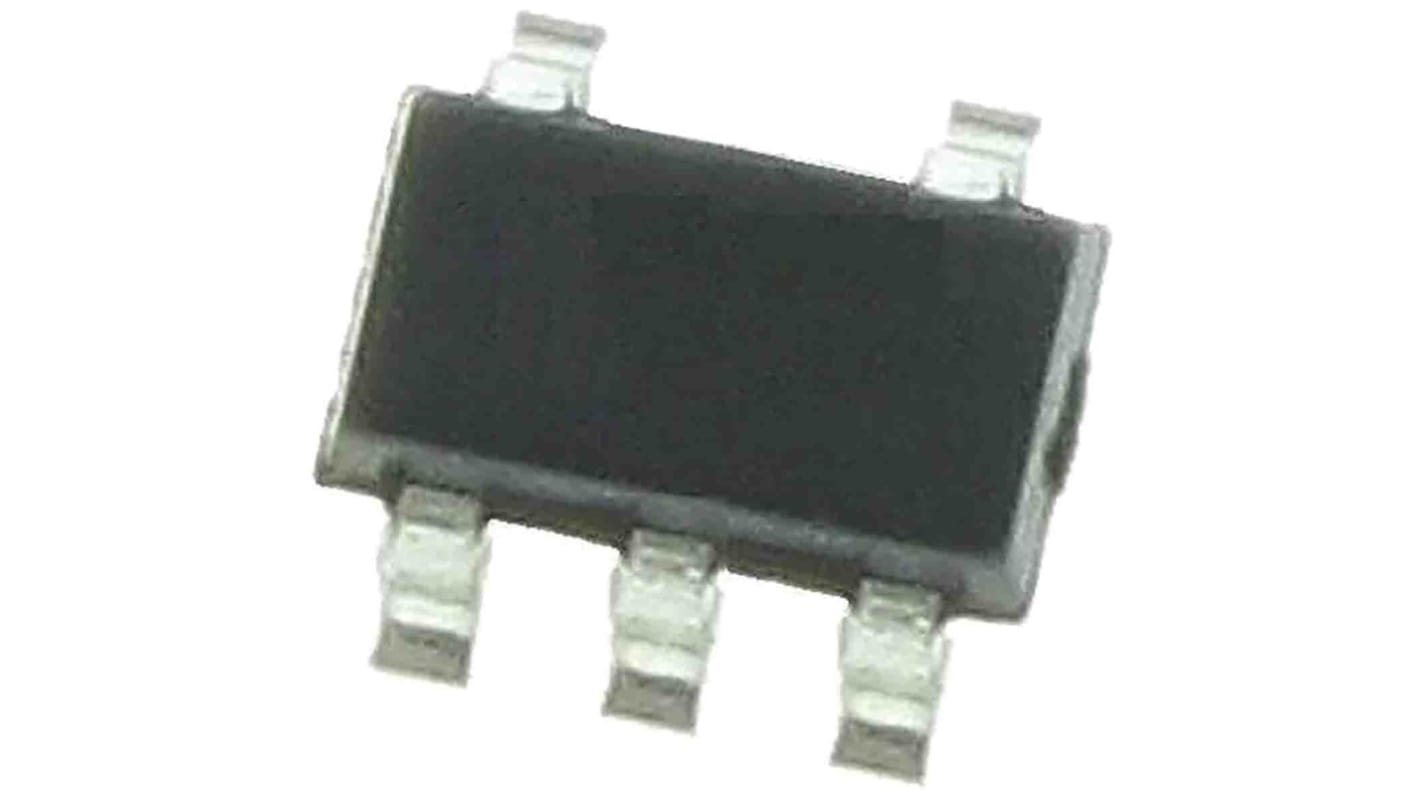

Renesas Electronics 3 Voltage Supervisor 5-Pin 2.4 V SOT-23, HIP1020CKZ-T
- RS Stock No.:
- 196-9043
- Mfr. Part No.:
- HIP1020CKZ-T
- Brand:
- Renesas Electronics
Stock information currently inaccessible
- RS Stock No.:
- 196-9043
- Mfr. Part No.:
- HIP1020CKZ-T
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Voltage Supervisor | |
| Number of Supervisors | 3 | |
| Watchdog Timer | No | |
| Manual Reset | No | |
| Power Fail Detection | No | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Pin Count | 5 | |
| Reset Threshold Voltage | 2.4V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO 9001 | |
| Series | HIP1020 | |
| Automotive Standard | No | |
| Minimum Supply Voltage | 5V | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Voltage Supervisor | ||
Number of Supervisors 3 | ||
Watchdog Timer No | ||
Manual Reset No | ||
Power Fail Detection No | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
Reset Threshold Voltage 2.4V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO 9001 | ||
Series HIP1020 | ||
Automotive Standard No | ||
Minimum Supply Voltage 5V | ||
The Renesas Electronics HIP1020 applies a linear voltage ramp to the gates of any combination of 3.3V, 5V, and 12V MOSFETs. The internal charge pump doubles a 12V bias or triples a 5V bias to deliver the high-side drive capability required when using more cost-effective N-Channel MOSFETs. The 5V/ms ramp rate is controlled internally and is the proper value to turn on most devices within the Device-Bay-specified di/dt limit. If a slower rate is required, the internally-determined ramp rate can be over ridden using an optional external capacitor.
Rise Time Controlled to Device-Bay Specifications
No Additional Components Required
Internal Charge Pump Drives N-Channel MOSFETs
Drives any Combination of One, Two or Three Outputs
Internally-Controlled Turn-On Ramp
Prevents False Turn on During Hot Insertion
Operates using 12V or 5V Bias
