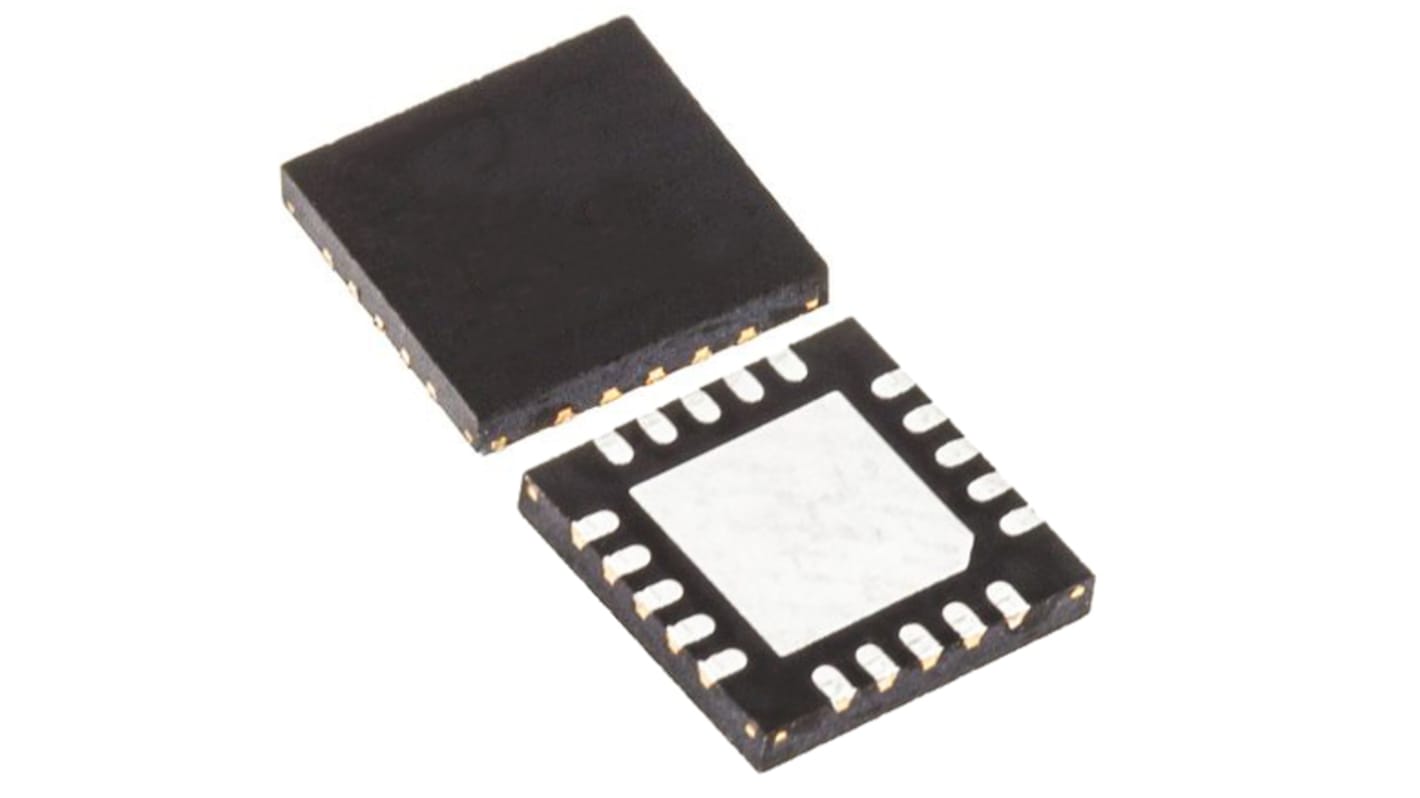

Maxim Integrated Triple Voltage Supervisor 5.5V max. 20-Pin TQFN, MAX16027TP+
- RS Stock No.:
- 191-4255
- Mfr. Part No.:
- MAX16027TP+
- Brand:
- Maxim Integrated
375 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 75)
£4.28
(exc. VAT)
£5.14
(inc. VAT)
| Units | Per unit | Per Tube* |
| 75 + | £4.28 | £321.00 |
| *price indicative | ||
- RS Stock No.:
- 191-4255
- Mfr. Part No.:
- MAX16027TP+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
2.2V to 28V Operating Voltage Range
Fixed Thresholds for 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V Systems
1.5% Accurate Adjustable Threshold Monitors Voltages Down to 0.5V
2.7% Accurate Fixed Thresholds Over Temperature
Fixed (140ms min)/Capacitor-Adjustable Delay Timing
Independent Open-Drain/Push-Pull Outputs
Enable Inputs for Each Monitored Voltage
9 Logic-Selectable Threshold Options
Manual Reset and Tolerance Select (5%/10%) Inputs
Small, 4mm x 4mm TQFN Package
Fully Specified from -40°C to +125°C
Applications/Uses
DC-DC Supplies
Multivoltage Systems
Networking/Telecommunication Equipment
Servers/Workstations
Storage Systems
Fixed Thresholds for 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V Systems
1.5% Accurate Adjustable Threshold Monitors Voltages Down to 0.5V
2.7% Accurate Fixed Thresholds Over Temperature
Fixed (140ms min)/Capacitor-Adjustable Delay Timing
Independent Open-Drain/Push-Pull Outputs
Enable Inputs for Each Monitored Voltage
9 Logic-Selectable Threshold Options
Manual Reset and Tolerance Select (5%/10%) Inputs
Small, 4mm x 4mm TQFN Package
Fully Specified from -40°C to +125°C
Applications/Uses
DC-DC Supplies
Multivoltage Systems
Networking/Telecommunication Equipment
Servers/Workstations
Storage Systems
Specifications
Attribute | Value |
|---|---|
| Number of Supervisors | 3 |
| Manual Reset | Yes |
| Maximum Reset Threshold Voltage | 5.5V |
| Minimum Reset Threshold Voltage | 0V |
| Mounting Type | Surface Mount |
| Package Type | TQFN |
| Pin Count | 20 |
| Dimensions | 4.1 x 4.1 x 0.75mm |
| Maximum Operating Supply Voltage | 28 V |
| Minimum Operating Supply Voltage | 2.2 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
